Polycom RMX 1500 Administrator's Manual page 789

28 Click the Browse button.
29 In the file browser, select all files to be sent in one operation according to the contents of
30 Click Open.
31 Click Install.
32 In the Default IP Service - Networking IP dialog box, click OK.
Polycom, Inc.

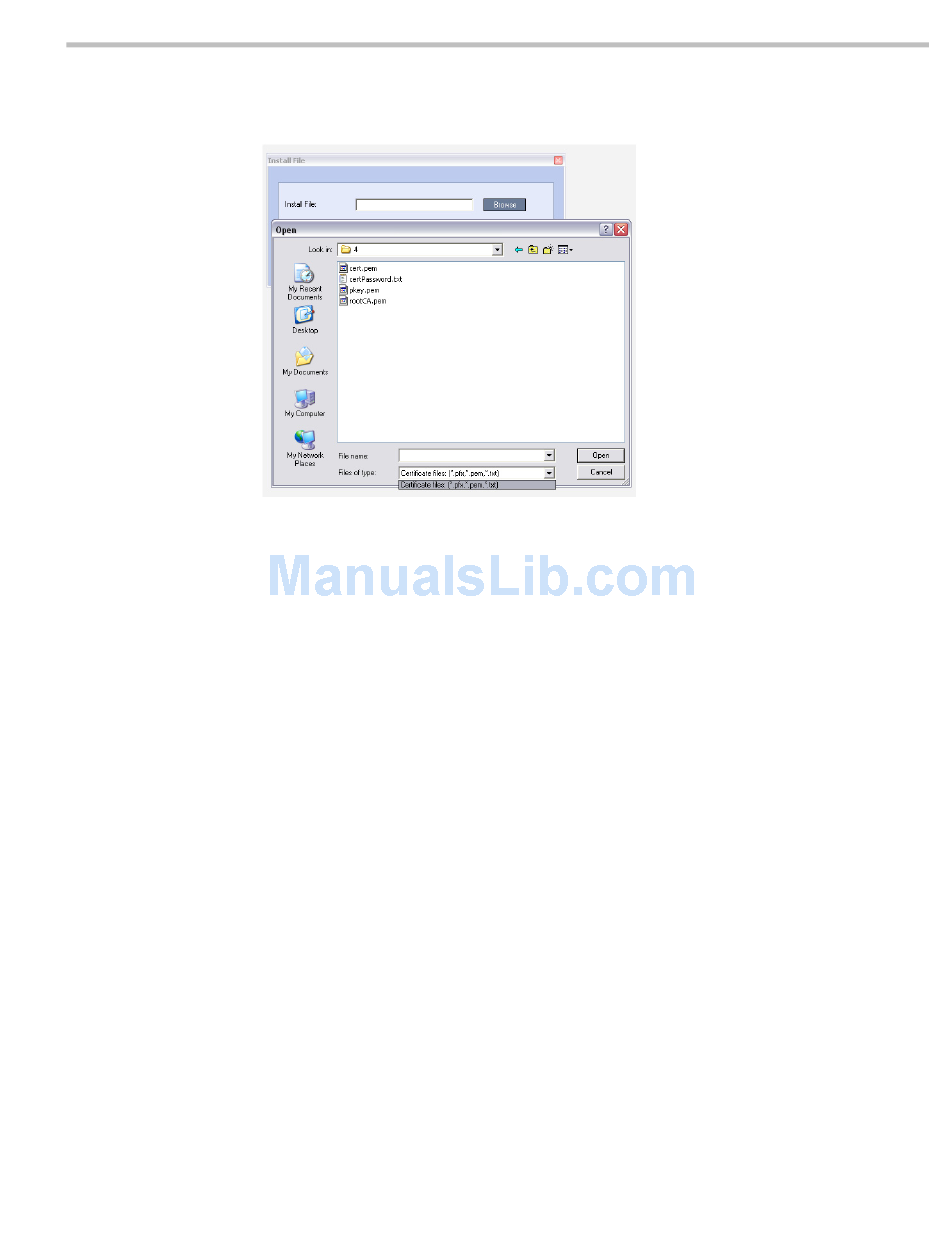

The Open dialog box appears, letting you select the certificate file(s) to send to the MCU.
Depending on the method used when the certificate file(s) were created, send the
certificate file(s) to the RMX according to the contents of the file set that was created:
— The certificate files pkey.pem, cert.pem and a certPassword.txt. The files were created
by a Certificate Authority and are sent as is to the RMX together with the required
password contained in the certPassword.txt file.
This is the recommended method.
— The files pkey.pem and cert.pem. The certificate files were created by a Certificate
Authority and are sent as is to the RMX.
— A *.pfx file and a certPassword.txt file. The file certPassword.txt is manually created if
the *.pfx file was created by the OCS using a password. The *.pfx file will be
converted internally by the RMX using the password included in the
certPassword.txt into three certificate files named pkey.pem and cert.pem.
— A *.pfx file if the certificate file was created in the OCS without using a password.
The *.pfx file will be converted internally by the RMX into three certificate files
named pkey.pem and cert.pem.
the set:
— One *.pfx file, or
— Two files: one *.pfx file and certPassword.txt, or
— Three files:pkey.pem, cert.pem and certPassword.txt
The selected file(s) appear in the Install Files path.
The files are sent to the RMX and the Install File dialog box closes.
Appendix H-Setting the RMX for Integration Into Microsoft Environment
H-43
