Setting Adjustment Between the Tools

If there is a misalignment between the tools, you can correct the misalignment by using this function.
If there is a misalignment in the cutting/plotting between TOOL 2 (tool attached to the forward of the tool holder)
and TOOL 1 (tool attached to the pen station), you can correct it by entering the adjustment value.
Operation

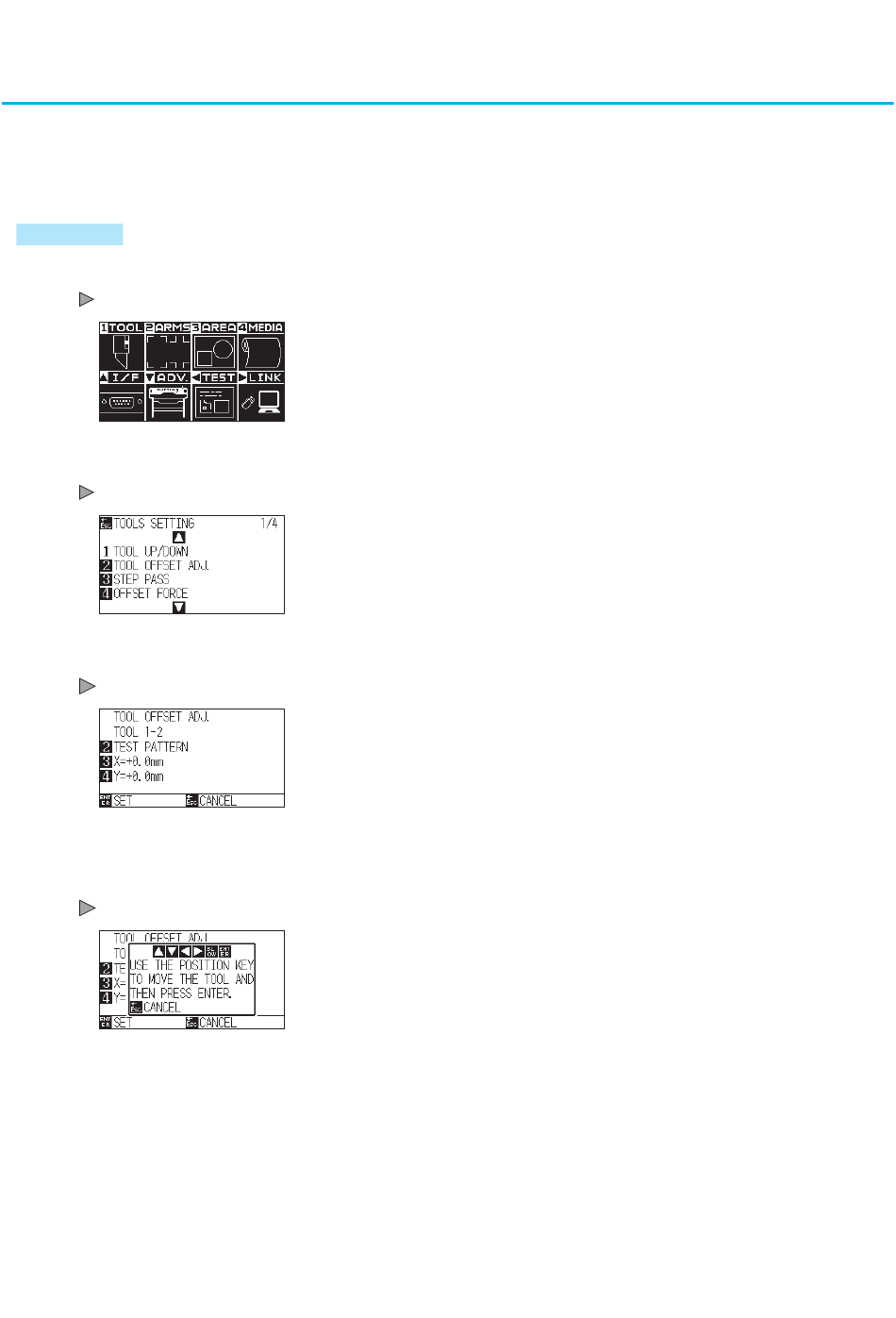

1
Press the [PAUSE/MENU] key.
MENU screen is displayed.
2
Press the [1] key (TOOL).
TOOL SETTING (1/4) screen is displayed.
3
Press the [2] key (TOOL OFFSET ADJ.).
TOOL OFFSET ADJ. screen is displayed.
4
Press the [2] key (TEST PATTERN).
The following message is displayed.
