VLT® Servo Drive System ISD 510/DSD 510
Operating Guide
-
Initialize each instance with its node number and the slot name it is connected to (for example, IF3).

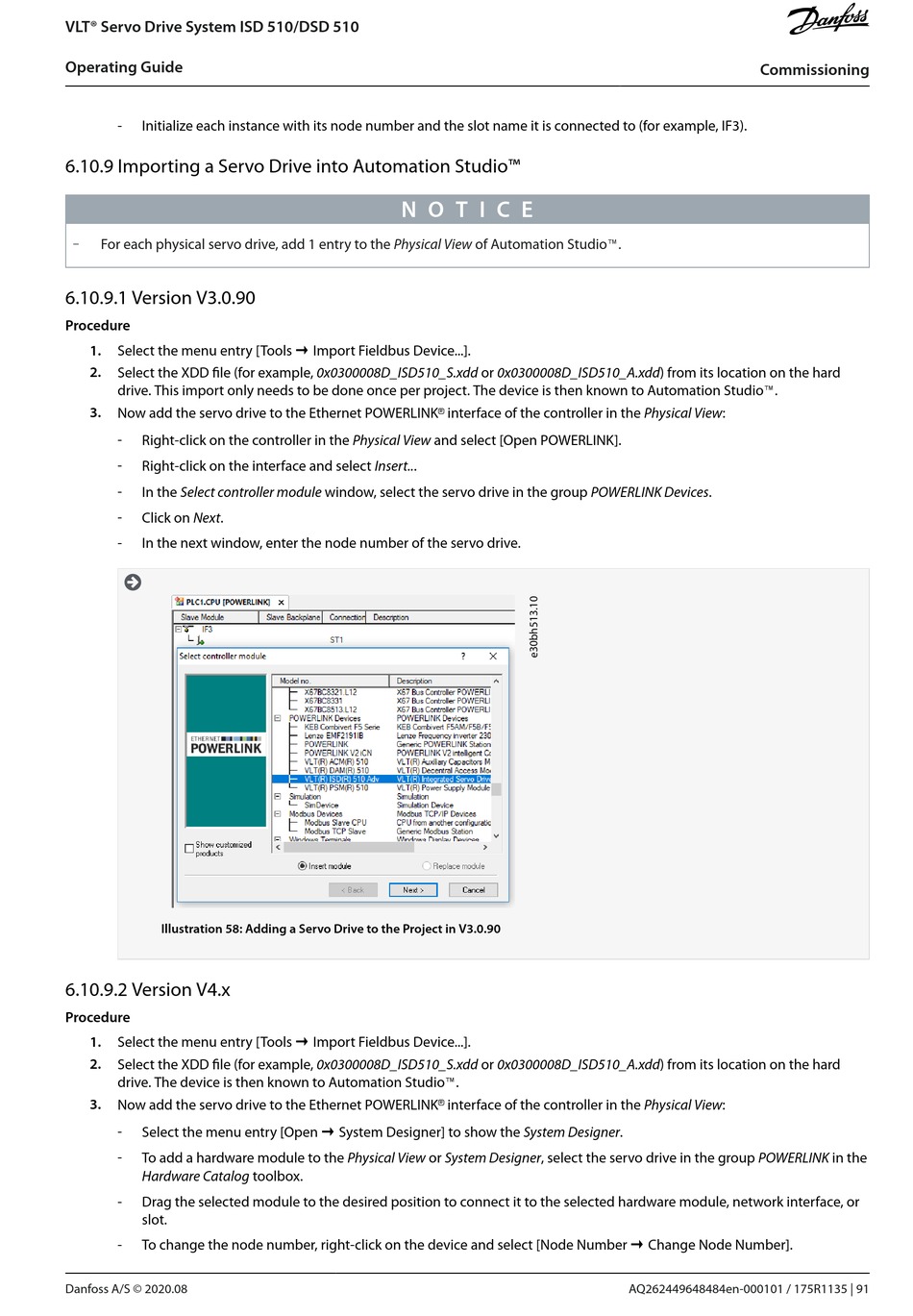

6.10.9 Importing a Servo Drive into Automation Studio™

-
For each physical servo drive, add 1 entry to the Physical View of Automation Studio

6.10.9.1 Version V3.0.90

Procedure
1.
Select the menu entry [Tools → Import Fieldbus Device...].
2.
Select the XDD file (for example, 0x0300008D_ISD510_S.xdd or 0x0300008D_ISD510_A.xdd) from its location on the hard
drive. This import only needs to be done once per project. The device is then known to Automation Studio
3.
Now add the servo drive to the Ethernet POWERLINK
-
Right-click on the controller in the Physical View and select [Open POWERLINK].
-
Right-click on the interface and select Insert...
-
In the Select controller module window, select the servo drive in the group POWERLINK Devices.
-
Click on Next.
-
In the next window, enter the node number of the servo drive.
Illustration 58: Adding a Servo Drive to the Project in V3.0.90
6.10.9.2 Version V4.x
Procedure
1.
Select the menu entry [Tools → Import Fieldbus Device...].
2.
Select the XDD file (for example, 0x0300008D_ISD510_S.xdd or 0x0300008D_ISD510_A.xdd) from its location on the hard
drive. The device is then known to Automation Studio
3.
Now add the servo drive to the Ethernet POWERLINK
-
Select the menu entry [Open → System Designer] to show the System Designer.
-
To add a hardware module to the Physical View or System Designer, select the servo drive in the group POWERLINK in the
Hardware Catalog toolbox.
-
Drag the selected module to the desired position to connect it to the selected hardware module, network interface, or
slot.
-
To change the node number, right-click on the device and select [Node Number → Change Node Number].
Danfoss A/S © 2020.08
N O T I C E
interface of the controller in the Physical View:
®
.
interface of the controller in the Physical View:
®
Commissioning
.
.
AQ262449648484en-000101 / 175R1135 | 91
