VLT® Servo Drive System ISD 510/DSD 510
Operating Guide
5.9.5.3 Connecting the LCP Cable to Port X5

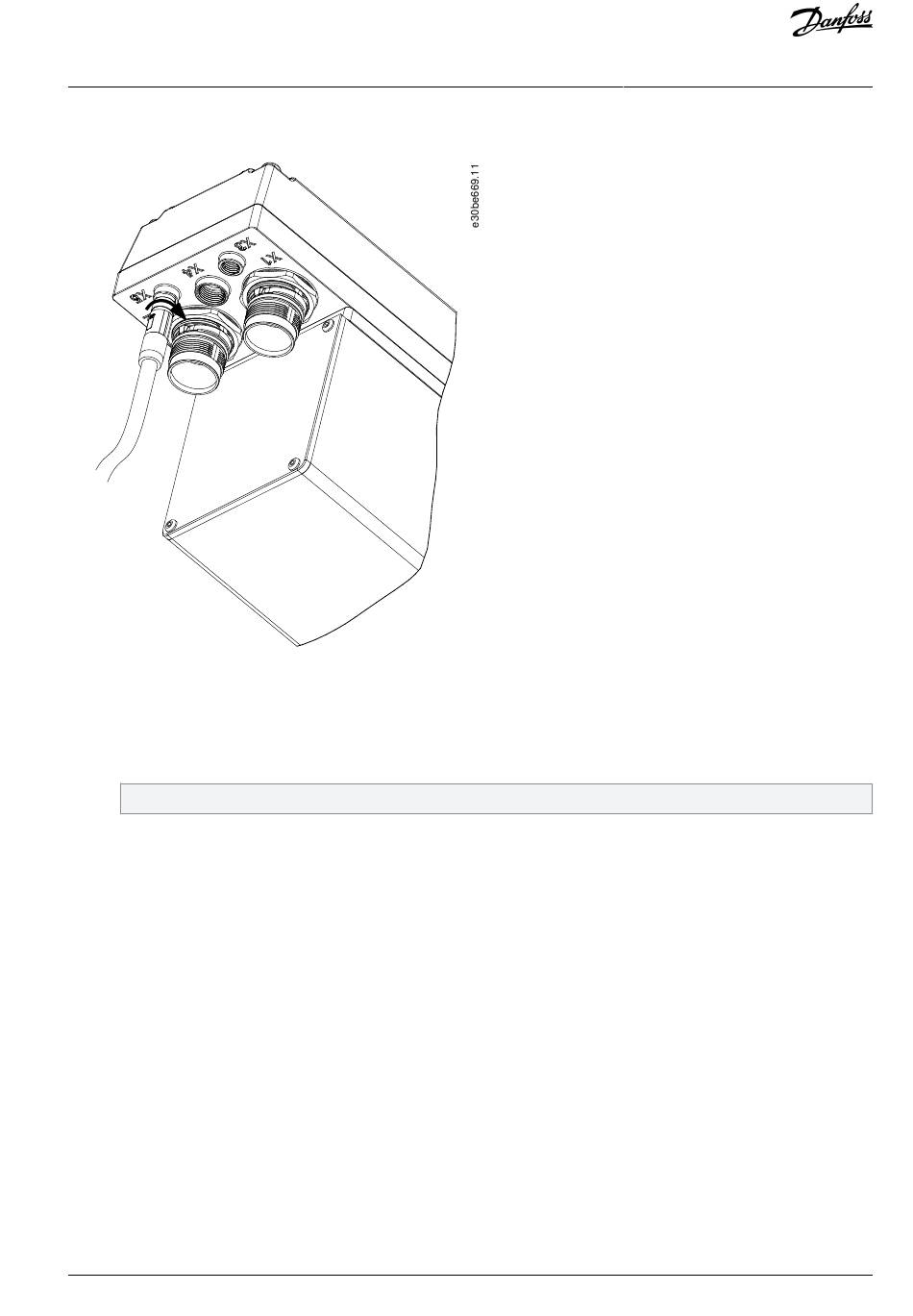

Illustration 40: Connecting the LCP Cable
Procedure
1.
Align the connector on the LCP cable (not supplied) with the LCP connector marked X5 on the ISD 510/DSD 510 servo drive.
2.
Press the connector towards the electronic housing of the servo drive and tighten the threaded ring of the connector by
turning it clockwise. The maximum tightening torque is 0.2 Nm.
The LCP cable can be ordered as an accessory.
Danfoss A/S © 2020.08
Electrical Installation
AQ262449648484en-000101 / 175R1135 | 71
