VLT® Servo Drive System ISD 510/DSD 510
Operating Guide
-
16.

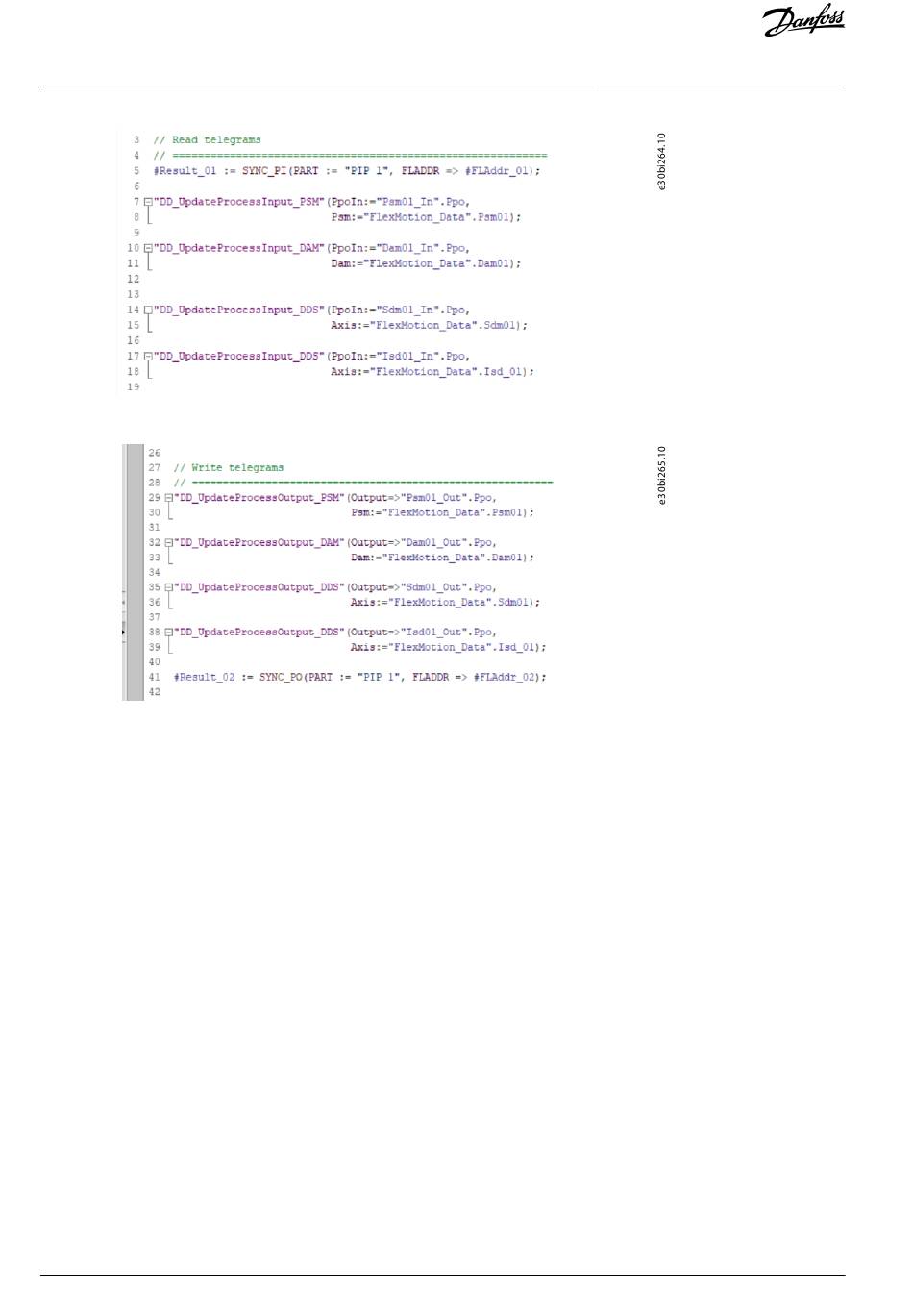

In operation block Synchronous Cycle [OB61], enter the telegram write instructions as per the example below.
-
6.16 Programming Guidelines for TIA
Recommendations for implementation:
•
Only assign the HwIdSubmodule variable in the appropriate structure of each device present at the beginning of the program.
Use the constant that is created automatically by TIA in menu [PLC tags → Show all tags → System Constants], for example,
danfoss-isd-01~Device_object_1~Module_access_point. Only assign this variable in the 1st PLC cycle for initialization. The struc-
tures to be used for each type of device are:
-
ISD 510: AXIS_REF_DDS
-
DSD 510: AXIS_REF_DDS
-
PSM 510: PSM_REF
-
DAM 510: DAM_REF
-
ACM 510: ACM_REF
•
Initialize parameters that usually do not change only once at the beginning of the program.
•
Call the appropriate functions for each device present in every PLC cycle:
-
ISD 510: DD_UpdateProcessInput_DDS and DD_UpdateProcessOutput_DDS
-
DSD 510: DD_UpdateProcessInput_DDS and DD_UpdateProcessOutput_DDS
-
SDM 511/SDM 512: DD_UpdateProcessInput_DDS and DD_UpdateProcessOutput_DDS
-
PSM 510: DD_UpdateProcessInput_PSM and DD_UpdateProcessOutput_PSM
-
DAM 510: DD_UpdateProcessInput_DAM and DD_UpdateProcessOutput_DAM
-
ACM 510: DD_UpdateProcessInput_ACM and DD_UpdateProcessOutput_ACM
•
Only create instructions and other program parts between calling up function blocks DD_UpdateProcessInput_xxx and DD_Up-
dateProcessOutput_xxx.
•
Call up function blocks that provide status or error information with Enable input at the beginning of the program.
130 | Danfoss A/S © 2020.08
Commissioning
AQ262449648484en-000101 / 175R1135
