VLT® Servo Drive System ISD 511
Operating Guide

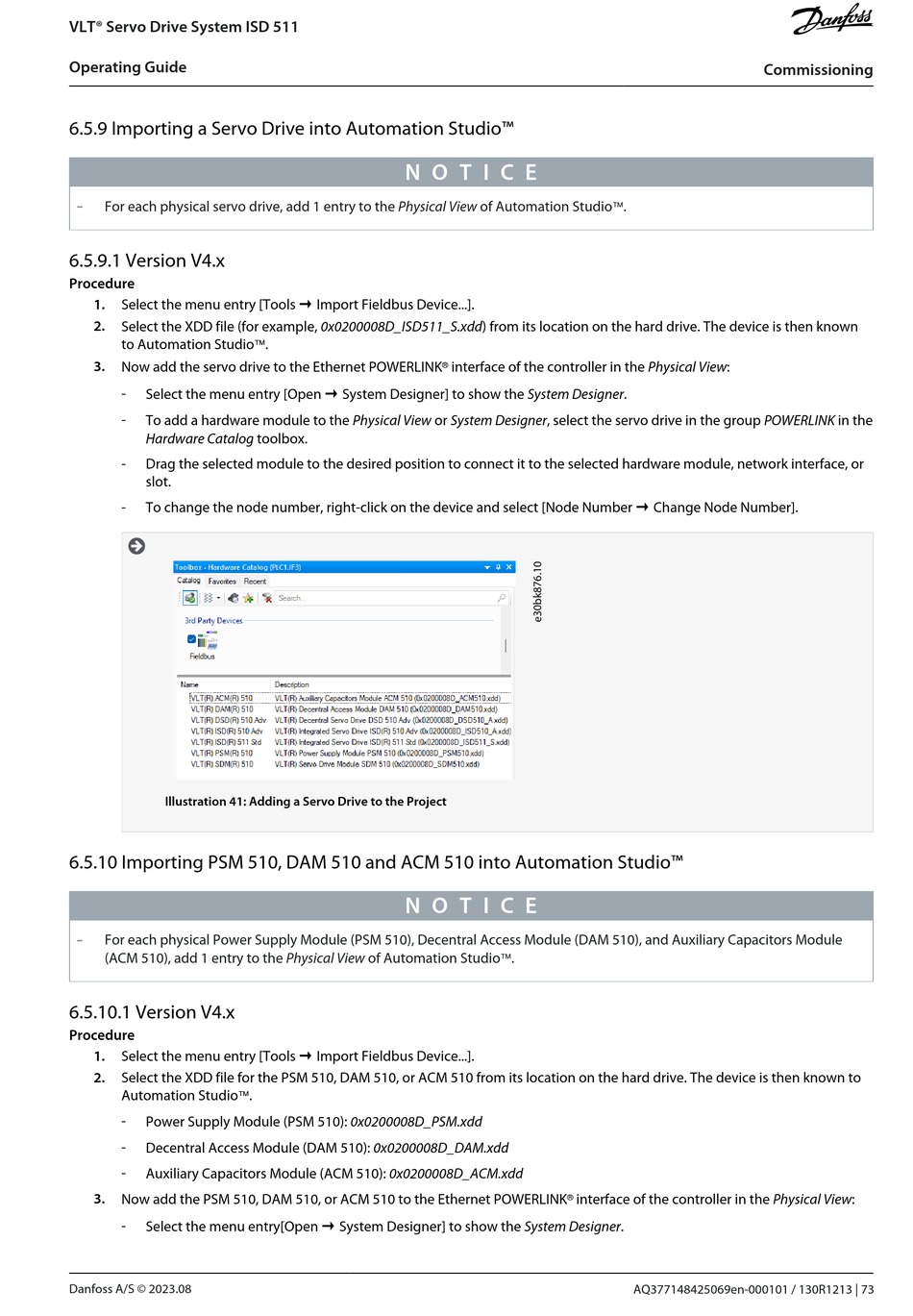

6.5.9 Importing a Servo Drive into Automation Studio™
-
For each physical servo drive, add 1 entry to the Physical View of Automation Studio
6.5.9.1 Version V4.x
Procedure
1.
Select the menu entry [Tools → Import Fieldbus Device...].
2.
Select the XDD file (for example, 0x0200008D_ISD511_S.xdd) from its location on the hard drive. The device is then known
to Automation Studio
3.
Now add the servo drive to the Ethernet POWERLINK
-
Select the menu entry [Open → System Designer] to show the System Designer.
-
To add a hardware module to the Physical View or System Designer, select the servo drive in the group POWERLINK in the
Hardware Catalog toolbox.
-
Drag the selected module to the desired position to connect it to the selected hardware module, network interface, or
slot.
-
To change the node number, right-click on the device and select [Node Number → Change Node Number].
Illustration 41: Adding a Servo Drive to the Project
6.5.10 Importing PSM 510, DAM 510 and ACM 510 into Automation Studio™
-
For each physical Power Supply Module (PSM 510), Decentral Access Module (DAM 510), and Auxiliary Capacitors Module
(ACM 510), add 1 entry to the Physical View of Automation Studio
6.5.10.1 Version V4.x
Procedure
1.
Select the menu entry [Tools → Import Fieldbus Device...].
2.
Select the XDD file for the PSM 510, DAM 510, or ACM 510 from its location on the hard drive. The device is then known to
Automation Studio
™
-
Power Supply Module (PSM 510): 0x0200008D_PSM.xdd
-
Decentral Access Module (DAM 510): 0x0200008D_DAM.xdd
-
Auxiliary Capacitors Module (ACM 510): 0x0200008D_ACM.xdd
3.
Now add the PSM 510, DAM 510, or ACM 510 to the Ethernet POWERLINK
-
Select the menu entry[Open → System Designer] to show the System Designer.
Danfoss A/S © 2023.08
N O T I C E
.
™
N O T I C E
.
™
interface of the controller in the Physical View:
®
.
™
interface of the controller in the Physical View:
®
Commissioning
.
AQ377148425069en-000101 / 130R1213 | 73
