Illustration 86: Assign IO Device in Isochronous Mode

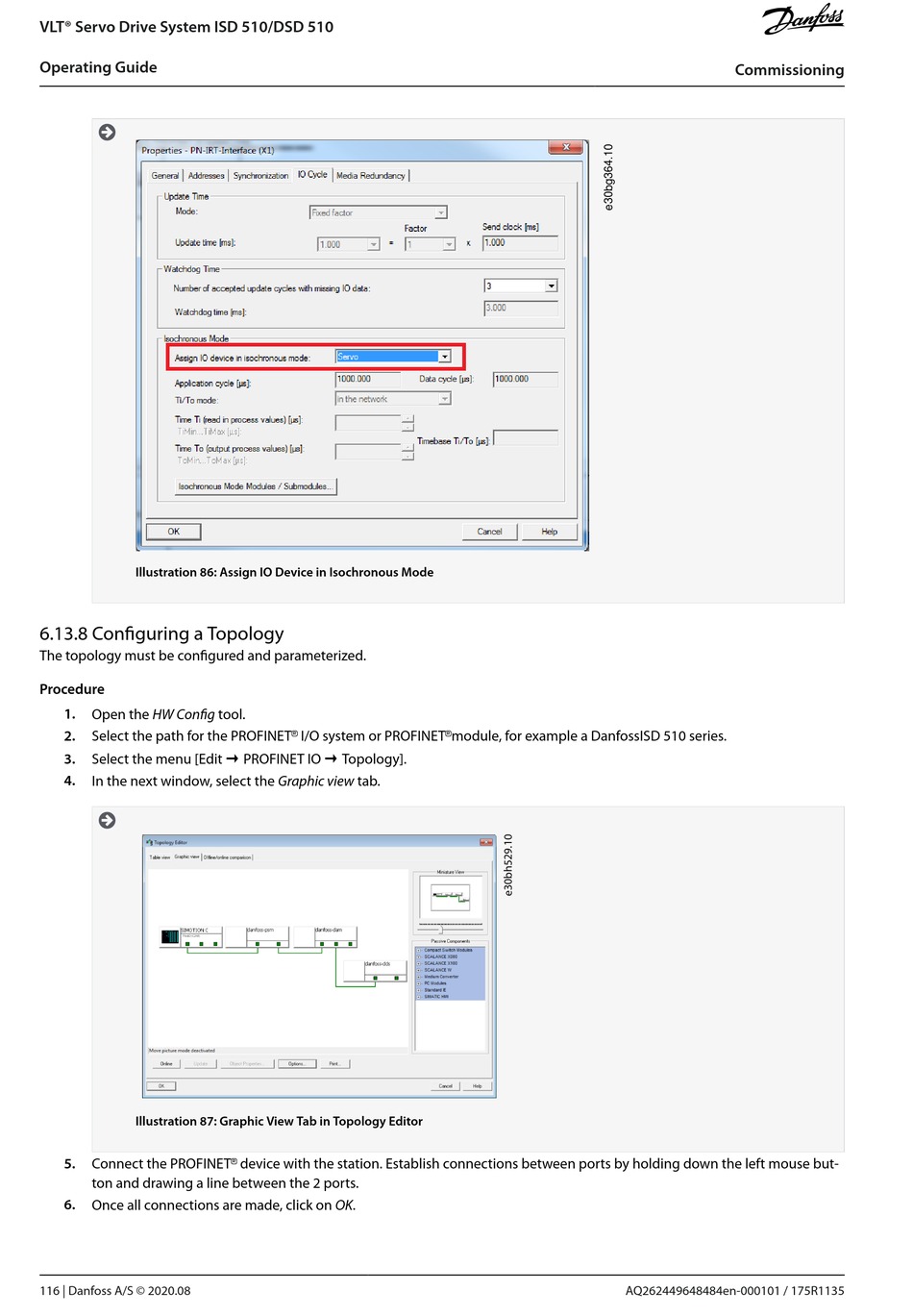

6.13.8 Configuring a Topology

The topology must be configured and parameterized.
Procedure
1.
Open the HW Config tool.
2. Select the path for the PROFINET
3. Select the menu [Edit → PROFINET IO → Topology].
4.
In the next window, select the Graphic view tab.

Illustration 87: Graphic View Tab in Topology Editor
5. Connect the PROFINET
ton and drawing a line between the 2 ports.
6.
Once all connections are made, click on OK.
116 | Danfoss A/S © 2020.08
I/O system or PROFINET
®
device with the station. Establish connections between ports by holding down the left mouse but-
®
module, for example a DanfossISD 510 series.
®
Commissioning
AQ262449648484en-000101 / 175R1135
