VLT® Servo Drive System ISD 510/DSD 510
Operating Guide
-
Power Supply Module (PSM 510): GSDML-V2.xx-Danfoss-PSM-yyyymmdd.xml
- Decentral Access Module (DAM 510):
GSDML-V2.xx-Danfoss-DAM-2Port-IRT-yyyymmdd.xml
GSDML-V2.xx-Danfoss-DAM-3Port-RT-yyyymmdd.xml
GSDML-V2.xx-Danfoss-DAM-yyyymmdd.xml
-
Auxiliary Capacitors Module (ACM 510): GSDML-V2.xx-Danfoss-ACM-yyyymmdd.xml

6.15.5 Creating a Network

Procedure
1
1.

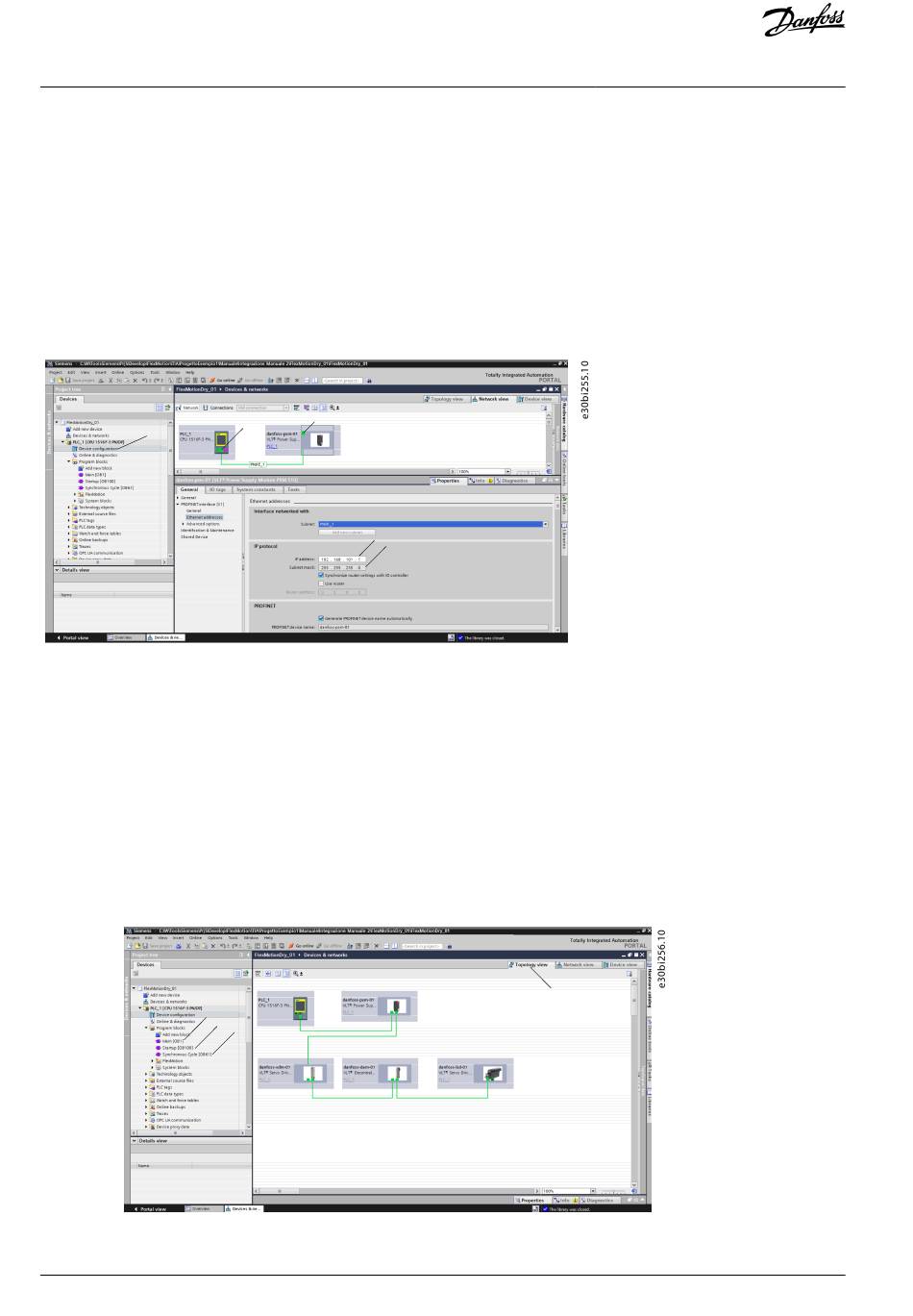

In the Devices window, select Device configuration [1] and add a PSM.
2.
Assign the PSM to the PLC_1 by dragging the middle square under the PLC icon [2] onto the square at top left of the PSM
icon [3]. The PN/IE_1 network is created automatically.
3.
Assign the PROFINET device name, IP address, and subnet mask to the PSM:
- Right-click on the PSM icon.
-
Select the tab General.
-
Select PROFINET interface [X1] and then Ethernet addresses.
- Enter the IP address 192.168.101.1 [4].
- Enter the Subnet mask 255.255.255.0 [5].
4.
Repeat steps 1–3 to add a DAM 510, ACM 510, ISD 510, or DSD 510.
5.
In the Devices & networks window, select Topology view [1] and connect the devices by dragging and dropping the icons.
-
2
6.
Remove any existing MAIN [OB1] operation block:
126 | Danfoss A/S © 2020.08
3
2
4
5
3
4
1
AQ262449648484en-000101 / 175R1135
Commissioning
