VLT® Servo Drive System ISD 510/DSD 510
Operating Guide

Illustration 59: Adding a Servo Drive to the Project in V4.x

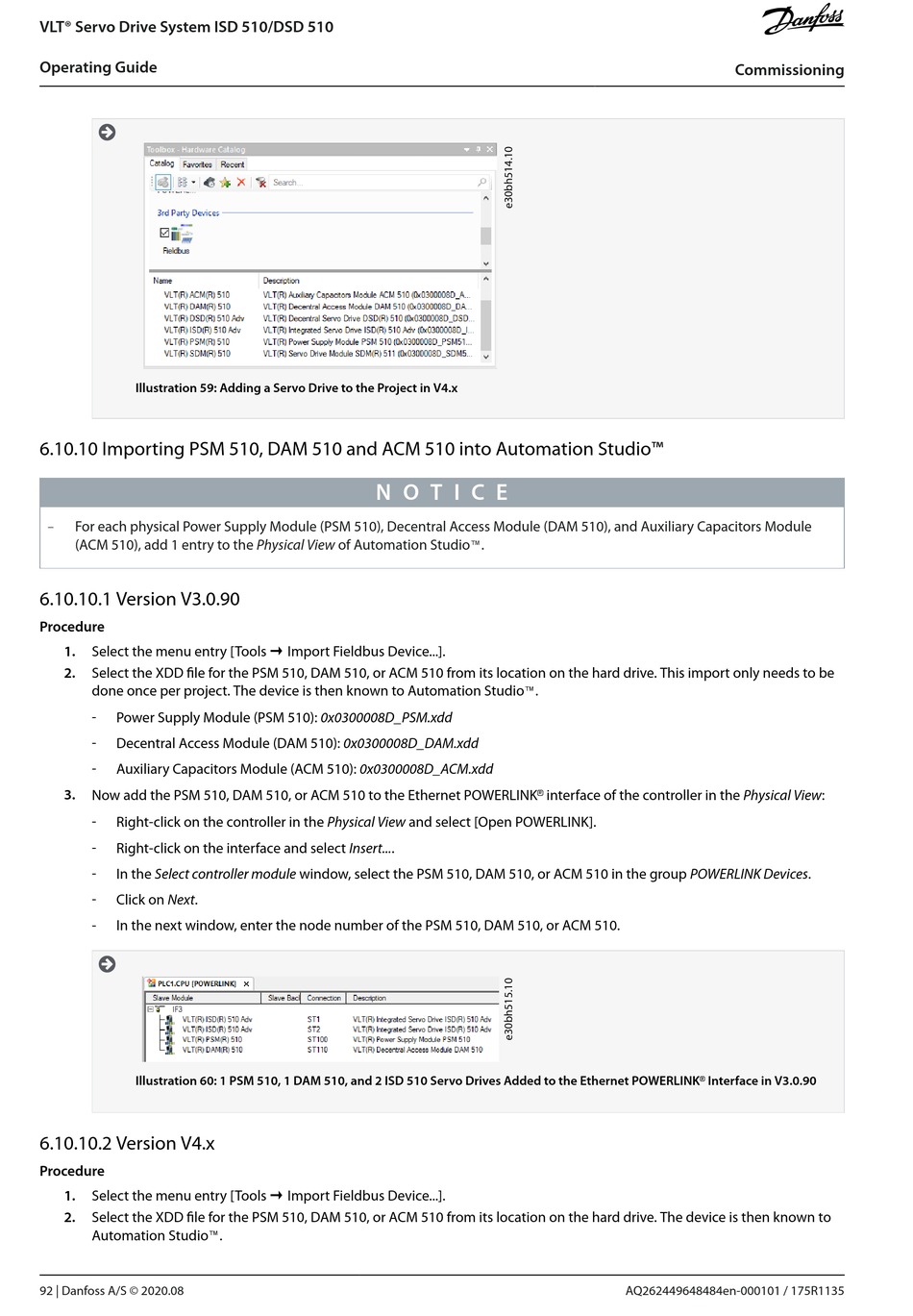

6.10.10 Importing PSM 510, DAM 510 and ACM 510 into Automation Studio™

-
For each physical Power Supply Module (PSM 510), Decentral Access Module (DAM 510), and Auxiliary Capacitors Module
(ACM 510), add 1 entry to the Physical View of Automation Studio

6.10.10.1 Version V3.0.90

Procedure
1. Select the menu entry [Tools → Import Fieldbus Device...].
2. Select the XDD file for the PSM 510, DAM 510, or ACM 510 from its location on the hard drive. This import only needs to be
done once per project. The device is then known to Automation Studio
- Power Supply Module (PSM 510): 0x0300008D_PSM.xdd
-
Decentral Access Module (DAM 510): 0x0300008D_DAM.xdd
-
Auxiliary Capacitors Module (ACM 510): 0x0300008D_ACM.xdd
3.
Now add the PSM 510, DAM 510, or ACM 510 to the Ethernet POWERLINK
-
Right-click on the controller in the Physical View and select [Open POWERLINK].
-
Right-click on the interface and select Insert....
-
In the Select controller module window, select the PSM 510, DAM 510, or ACM 510 in the group POWERLINK Devices.
-
Click on Next.
- In the next window, enter the node number of the PSM 510, DAM 510, or ACM 510.

Illustration 60: 1 PSM 510, 1 DAM 510, and 2 ISD 510 Servo Drives Added to the Ethernet POWERLINK
6.10.10.2 Version V4.x
Procedure
1. Select the menu entry [Tools → Import Fieldbus Device...].
2. Select the XDD file for the PSM 510, DAM 510, or ACM 510 from its location on the hard drive. The device is then known to
Automation Studio
™
92 | Danfoss A/S © 2020.08
N O T I C E
.
.
™
.
™
interface of the controller in the Physical View:
®
AQ262449648484en-000101 / 175R1135
Commissioning
Interface in V3.0.90
®
