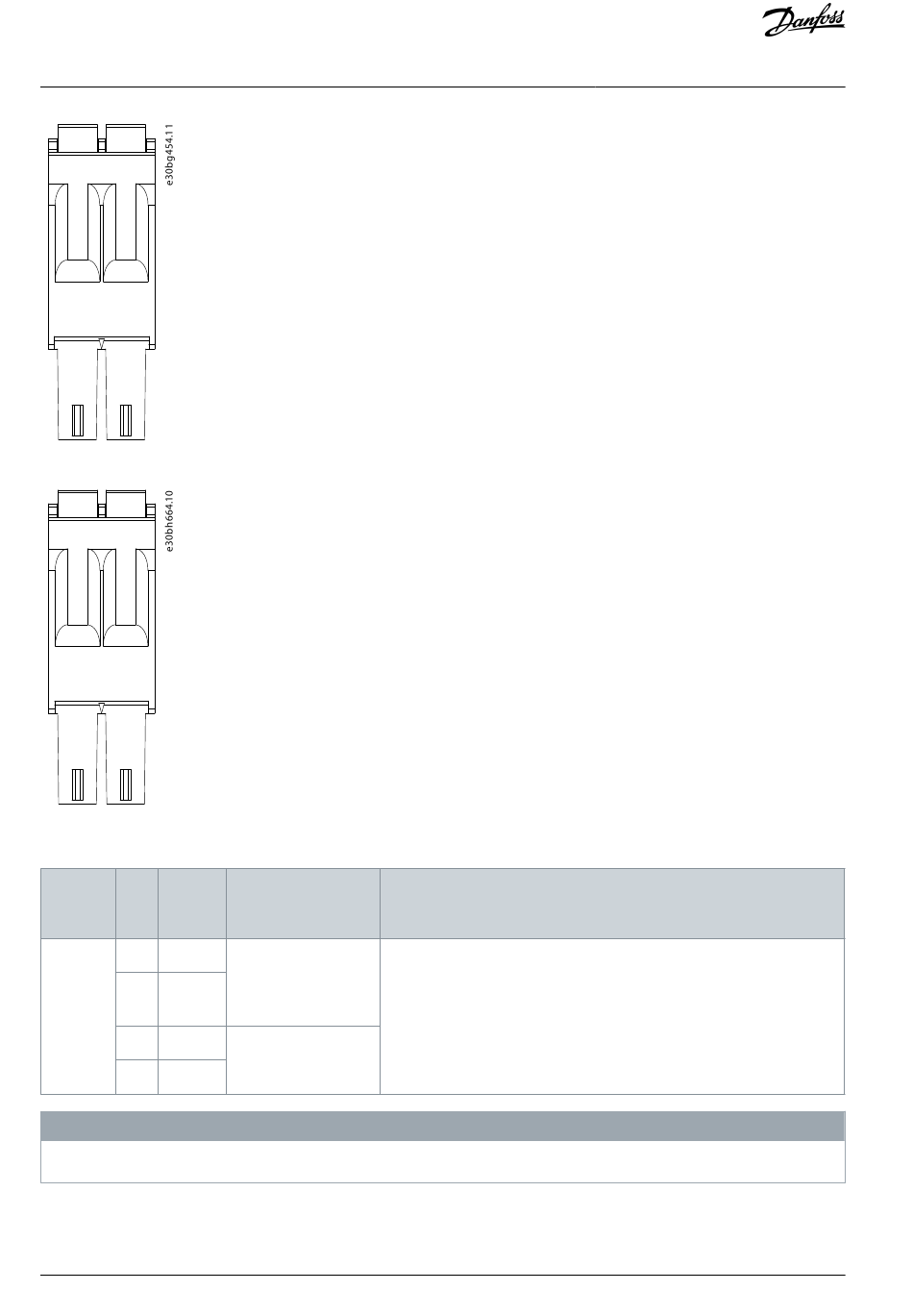

Illustration 151: STO Output Connector on the Top of DAM 510
3 4
Illustration 152: STO Input Connector on the Top of DAM 510
Table 145: Pin Assignment of STO Connectors on the Top of DAM 510
Connec- Pins De-
tor name scrip-
tion
STO DAM 1 STO–
2 STO+
3 STO–
4 STO+
-
Only PELV potential can be connected to the STO inputs.
11.9.9.2.2 STO Connector on the Bottom of DAM 510
There is 1 output STO connector on the bottom of the Decentral Access Module (DAM 510). The output is for the hybrid cable.
210 | Danfoss A/S © 2020.08
Notes Rating/parameter
Used for STO output
Nominal voltage: 24 V DC ±10%
voltage to the input of
Nominal current: Depends on the number of servo drives in the applica-
the other system
tion.
modules.
Maximum current: 1 A
Conductor cross-section range: 0.2–1.5 mm
Used for STO input
voltage.
N O T I C E
Specifications
2
(AWG 24–AWG 16)
