ordered, a RJ45 cover will be mounted to the X3 OUT port. Remove this cover to enable use of the X3 OUT port required for switch-
ing to RT protocol.
The wiring concept for the use of multiple DAM 510 modules in a single application is shown in
PLC
Real-Time Ethernet Bus + STO
24/48 V
STO
STATUS PSM STATUS DAM STATUS DAM
DEV
DEV DEV
SVS ST
SVS ST SVS ST
NET ST NET ST NET ST
AUX AUX
LINK/ACT LINK/ACT LINK/ACT
X1
X1 X1
X2 X2 X2
X3 X3
LCP LCP LCP
PSM DAM DAM
510 510 510
1
AC 400–480 V
UDC + Real-Time Ethernet Bus + STO + U AUX

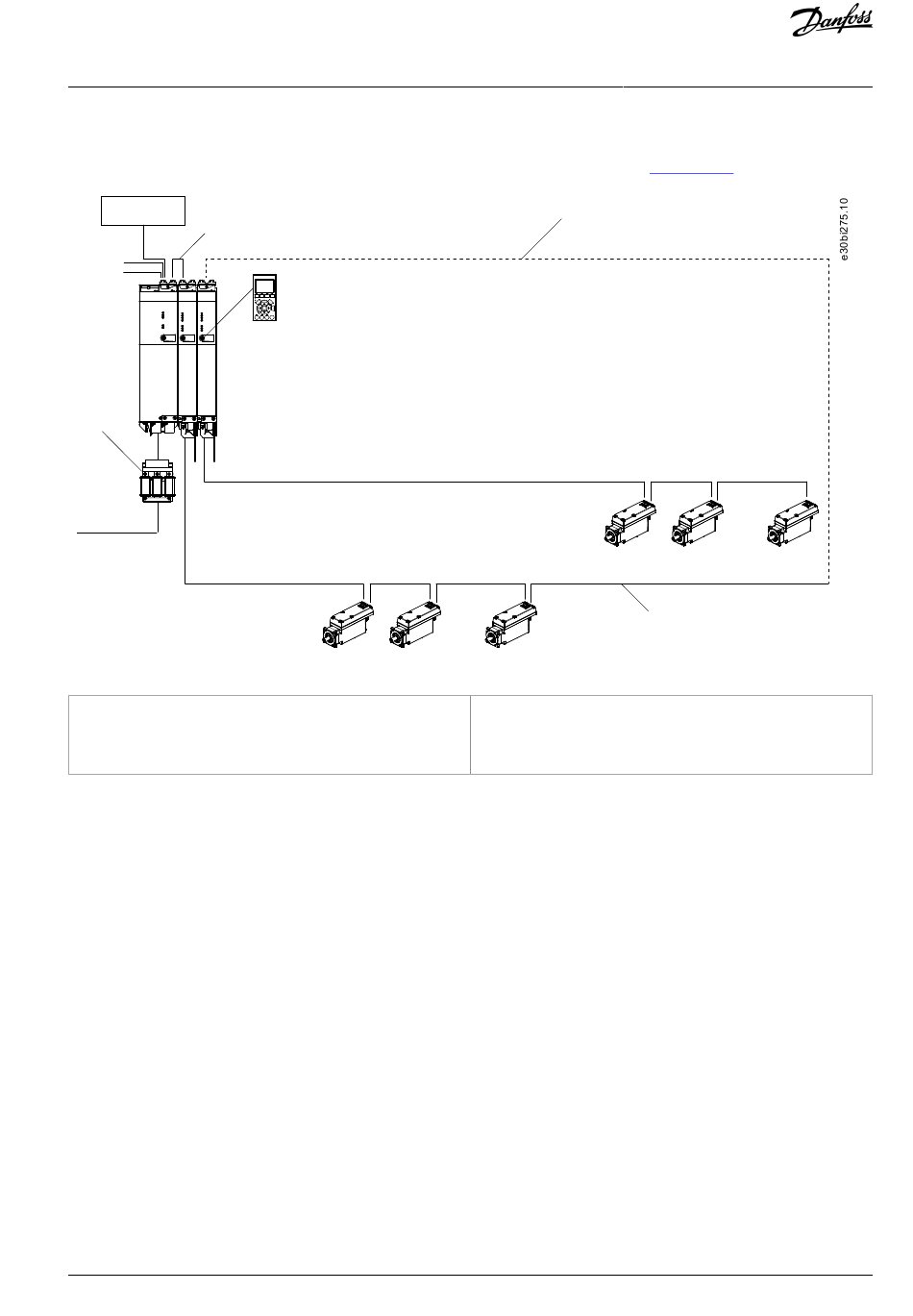

Illustration 17: Wiring Concept for Multiple DAM 510 Modules
1 AC line choke
2 Customer cable
Danfoss A/S © 2020.08
Status Quick Main Alarm
Menu Menu Log
OK
Hand Auto
Off Reset
On On
LCP
UDC + Real-Time Ethernet Bus + STO + U AUX
ISD 510
2
ISD 510
. . .
3 Fieldbus extension cable
System Description
Illustration 17.
. . .
3
