VLT® Servo Drive System ISD 510/DSD 510
Operating Guide
11.10.2 System Modules

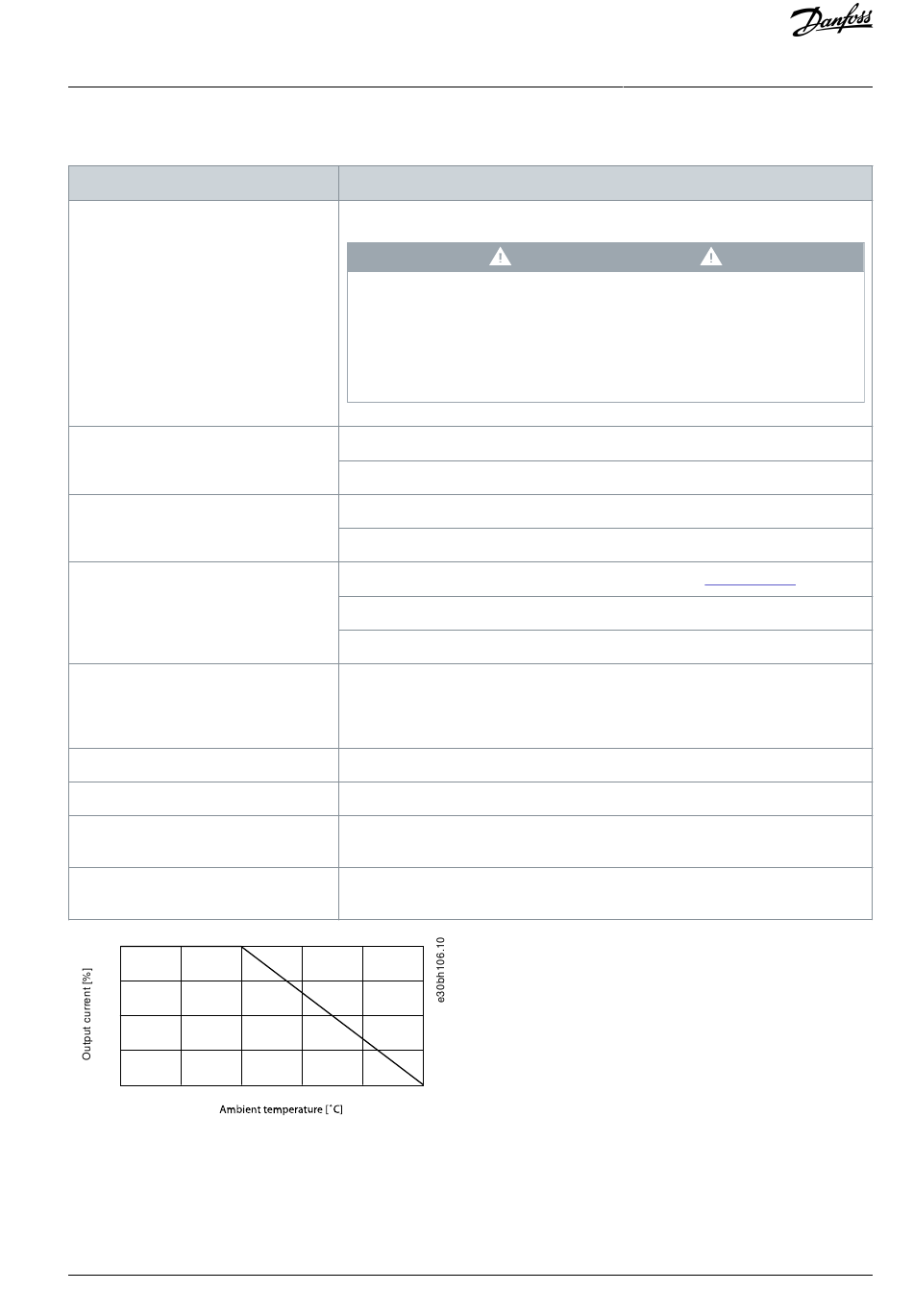

Table 154: General Specifications and Environmental Conditions for System Modules
Specification
Protection rating
Vibration test
Maximum relative humidity
Ambient temperature range
Installation altitude
EMC standard for emission and immunity
EMC immunity for functional safety
Degree of pollution according to EN
60664-1
Overvoltage category according to
EN/IEC 61800-5-1
100
90
80
70
60
30 35 40
Illustration 158: Derating
Danfoss A/S © 2020.08
Value
IP20 according to IEC/EN 60529 (except connectors, which are IP00).
RISK OF ELECTRICAL SHOCK
The IP20 rating of the PSM 510, DAM 510, and ACM 510 modules is not fulfilled if
the modules are not connected to the backplate. This may result in death or seri-
ous injury.
-
Do not touch the backplate when a module is removed from the backplate.
Random vibration: 1.14 g (2h/axis according to EN 60068-2-64)
Sinusoidal vibration: 1.0 g (2h/axis according to EN 60068-2-6)
Storage/transport: 5–95% (non-condensing)
Stationary use: 5–93% (non-condensing)
Operating: 5–40 °C nominal, up to 55 °C with derating (see
Transport: –25 to +55 °C
Storage: –25 to +55 °C
Nominal current up to 1000 m above sea level.
Derating of output current (1% / 100 m) from 1000 m to 3000 m.
Operation above 3000 m is not permitted.
EN 61800-3
EN 61800-5-2 Annex E
2
III
45 50 55
W A R N I N G
AQ262449648484en-000101 / 175R1135 | 215
Specifications
Illustration 158)
