Danfoss VLT ISD 510 Operating Manual page 196

VLT® Servo Drive System ISD 510/DSD 510
Operating Guide
84.3
[3.32]
13 50 21.3
[0.51] [1.97] [0.84]

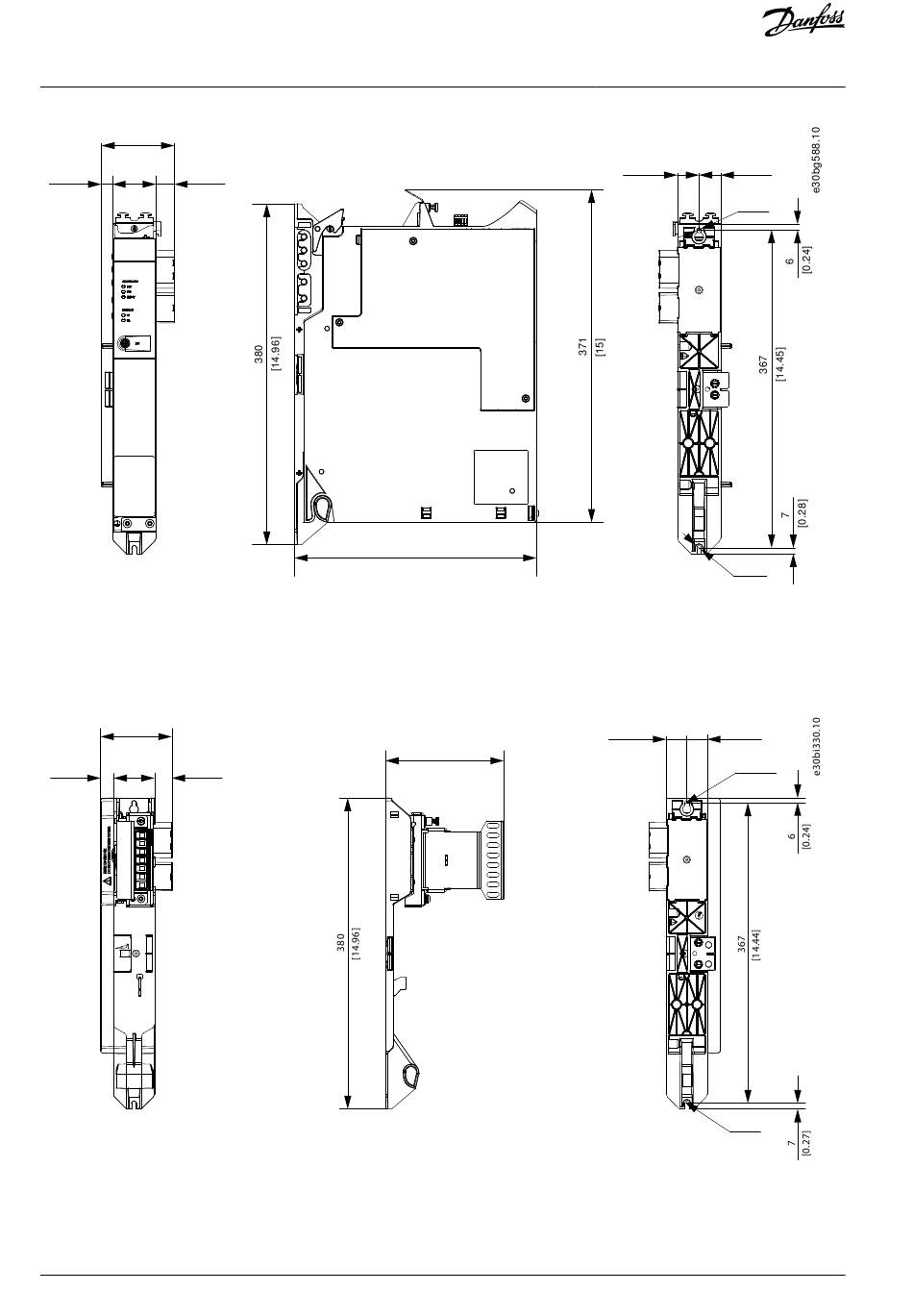

Illustration 132: Dimensions of ACM 510
11.3.7 Dimensions of Expansion Module (EXM 510)
All dimensions are in mm (in).
87.3
[3.43]
16 50 21.3
[0.62] [1.97] [0.84]
Illustration 133: Dimensions of EXM 510
196 | Danfoss A/S © 2020.08
270
[10.63]
144.75
[5.70]
Specifications
25 25
[0.98] [0.98]
Ø5.2
[0.2]
Ø5.2
[0.2]
25 25
[0.98] [0.98]
Ø5.2
[0.2]
Ø5.2
[0.2]
AQ262449648484en-000101 / 175R1135
