VLT® Servo Drive System ISD 510/DSD 510
Operating Guide
Table 12: Navigation Keys
Key
10 Back
11 Cancel
12 Info
13 Navigation keys
14 OK
Table 13: Indicator Lights (LEDs)
LED Color Function
15 On Green
The On LED activates when the servo drive or module it is connected to receives power from U
16 Warn Yellow When warning conditions are met, the yellow Warn LED activated and text appears in the display area
identifying the problem.
17 Alarm Red
A fault condition causes the red Alarm LED to flash and an alarm text is shown.

3.8.2.4 D: Operation keys and reset

The operation keys are located at the bottom of the LCP.
Table 14: Operation Keys and Reset
Key Function
18 Hand On
Enables the connected ISD 510/DSD 510 servo drive or PSM 510 to be controlled via the LCP.
Switching between Hand On and Auto On modes is only possible in certain states (see the VLT® Servo Drive Sys-
tem ISD 510, DSD 510, MSD 510 (VLT® Flexmotion
19 Off
Puts the ISD 510/DSD 510 servo drive into state Switch on Disabled and the PSM 510 into state Standby.
This only works in Hand On mode.
Off mode enables transition from Hand On mode to Auto On mode.
20 Auto On
Puts the system in remote operational mode.
In Auto On mode, the device is controlled by fieldbus (PLC). Switching between Auto On and Hand On modes is
only possible when the drive is in state Switch on Disabled and/or the PSM 510 is in state Standby.
21 Reset
Resets the ISD 510/DSD 510 servo drive or PSM 510 after a fault has been cleared.
The reset is only possible when in Hand On mode.

3.9 Cables

3.9.1 Hybrid Cable

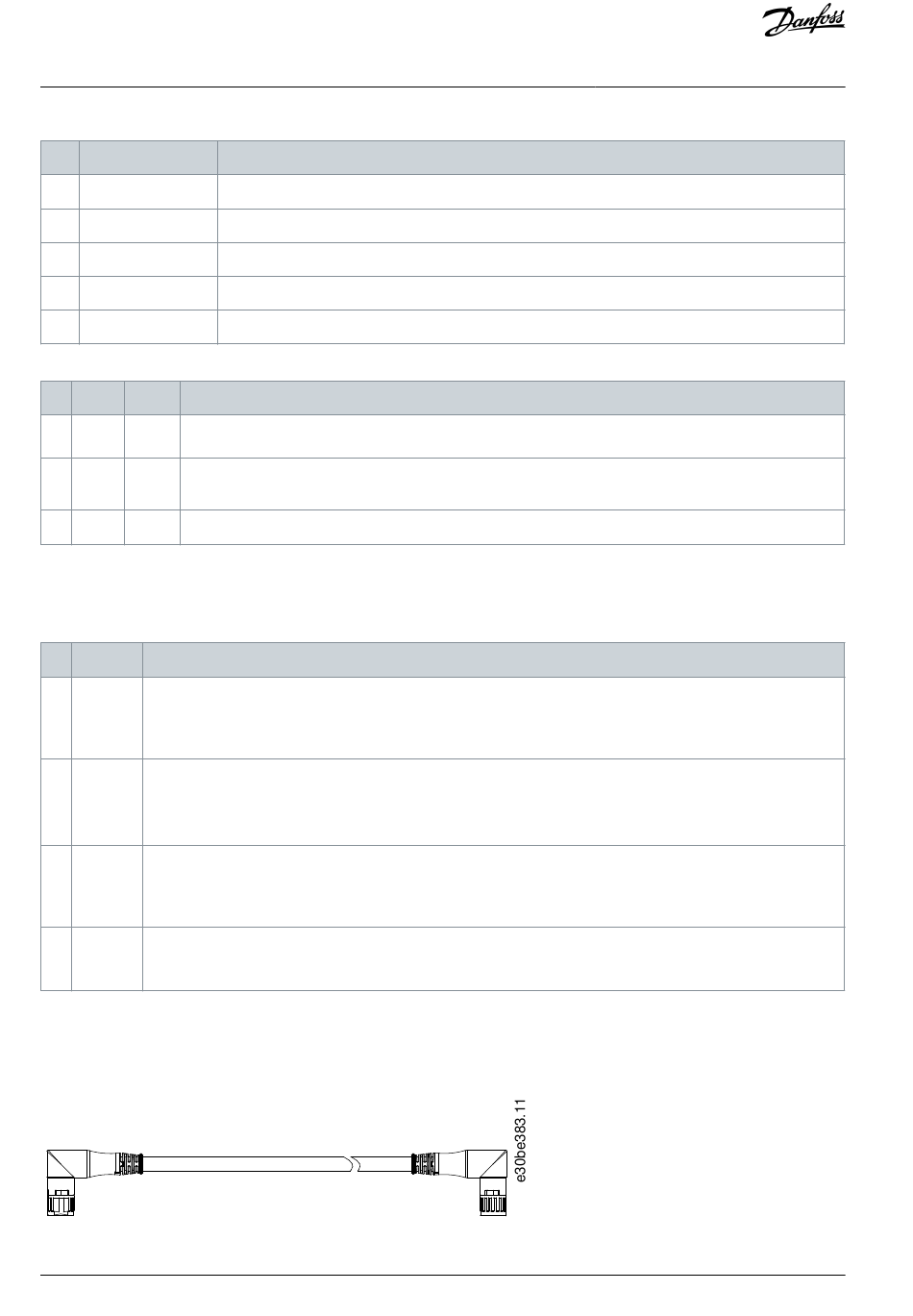

Illustration 11: Hybrid Loop Cable
40 | Danfoss A/S © 2020.08
Function
Reverts to the previous step or list in the menu structure.
Cancels the last change or command as long as the display mode is not changed.
Press for a definition of the function being shown.
Use the 4 navigation keys to move between items in the menu.
Use to access parameter groups or to enable a selection.
) Programming Guide for further information).
™
AQ262449648484en-000101 / 175R1135
System Description
.
AUX
