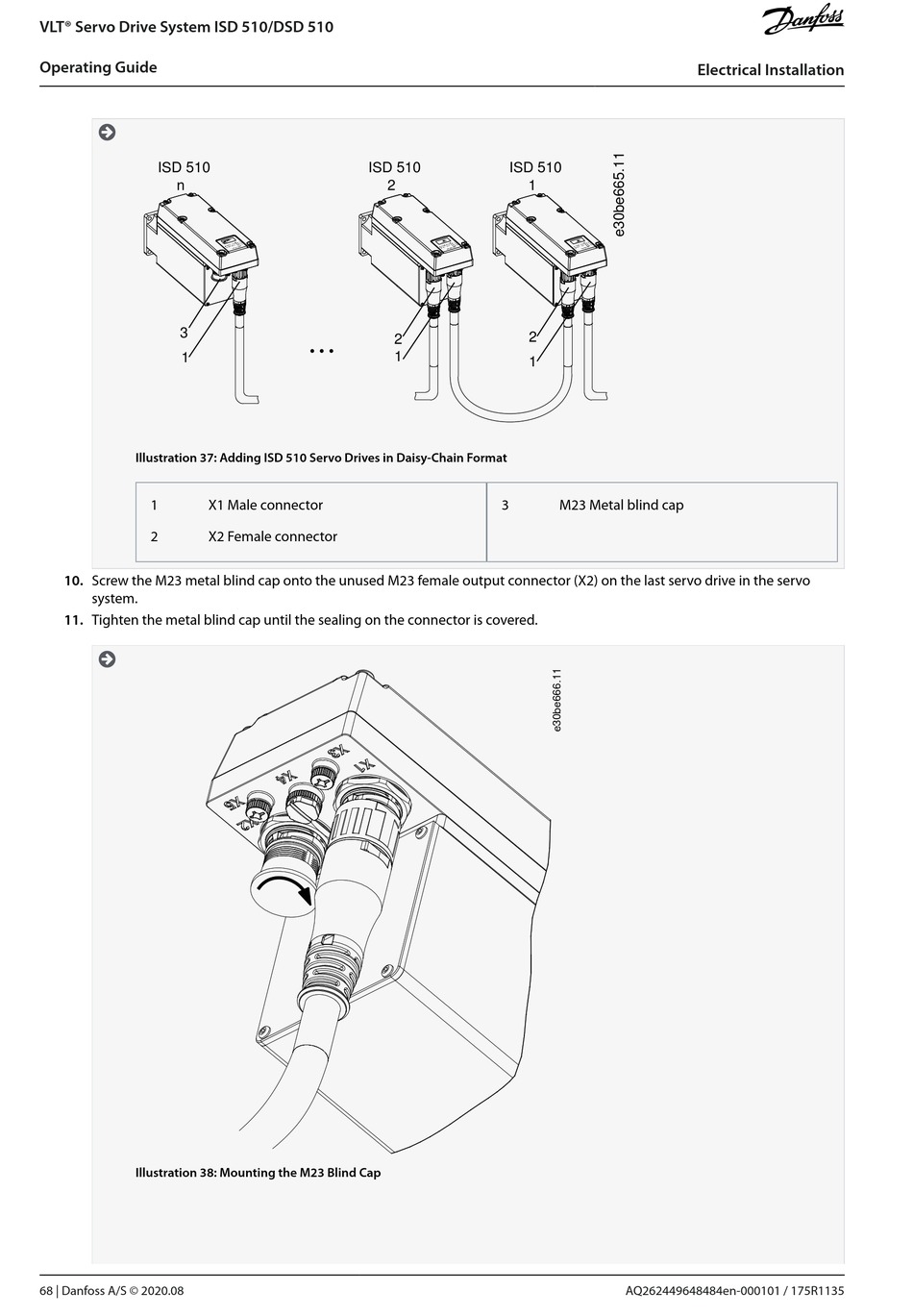

Illustration 37: Adding ISD 510 Servo Drives in Daisy-Chain Format
1 X1 Male connector
2 X2 Female connector
10.
Screw the M23 metal blind cap onto the unused M23 female output connector (X2) on the last servo drive in the servo
system.
11.
Tighten the metal blind cap until the sealing on the connector is covered.

Illustration 38: Mounting the M23 Blind Cap
