3 System Description

3.1 Overview of the ISD 510/DSD 510 System

PLC
24/48 V
STO
STATUS PSM
STATUS DAM STATUS DAM
DEV
DEV DEV
SVS ST SVS ST SVS ST
NET ST
NET ST NET ST
AUX AUX
LINK/ACT
LINK/ACT LINK/ACT
X1 X1 X1
X2
X2 X2
X3 X3
PSM DAM DAM
510 510 510
1
AC 400–480 V
UDC + Real-Time Ethernet Bus + STO + U AUX

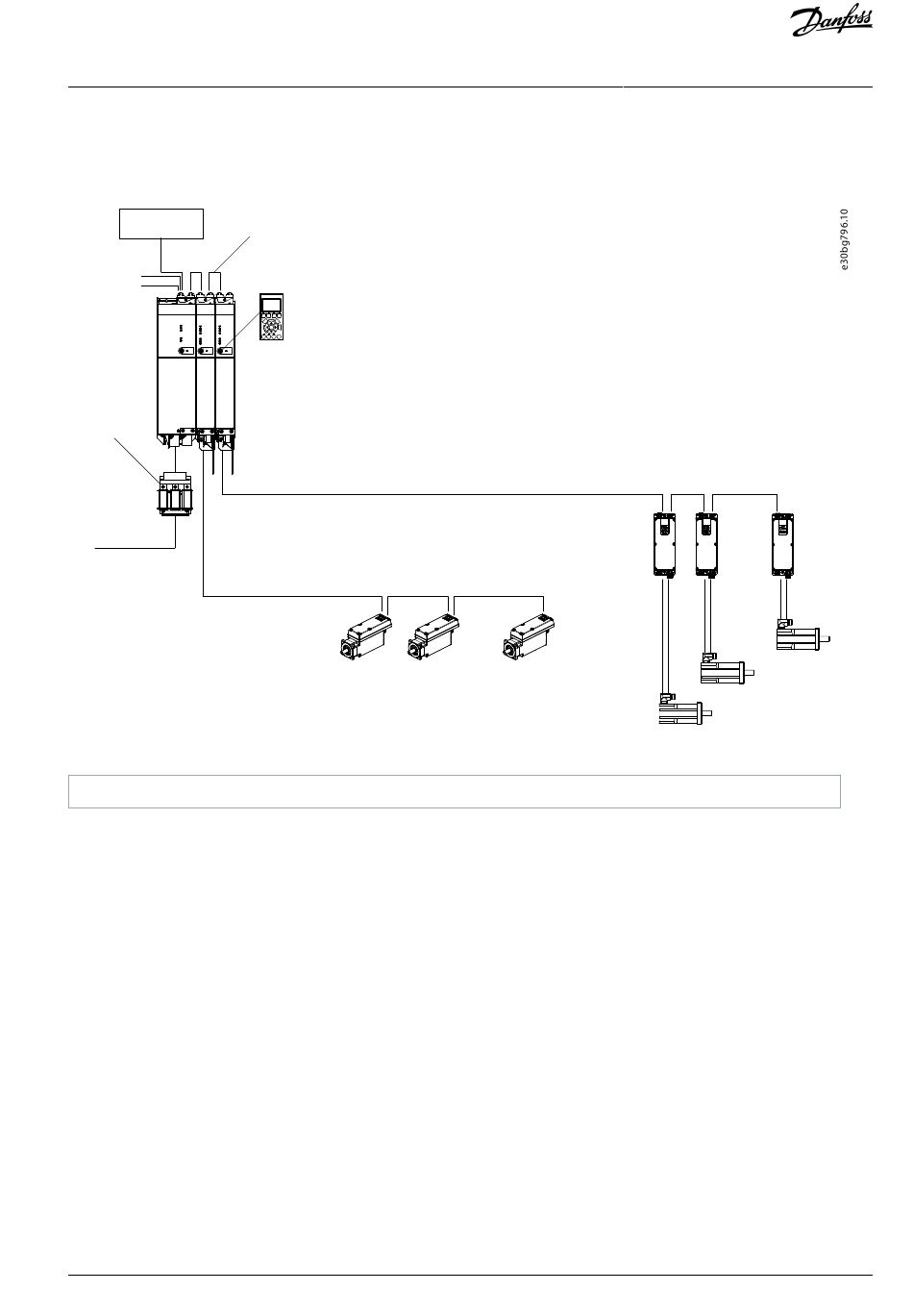

Illustration 1: Overview of the VLT® Integrated Servo Drive ISD 510/DSD 510 System
1 AC line choke
The VLT Servo Drive System ISD 510/DSD 510 is a high-performance decentral servo motion solution. In this decentral system, the
®
ISD 510/DSD 510 servo drives are operated in a DC group and controlled by a PLC. The decentralization of the drive unit offers
benefits in mounting, installation, and operation.
Hybrid cables are used to connect the ISD 510/DSD 510 servo drives, making installation fast and simple. These hybrid cables con-
tain the DC-link supply, the Real-Time Ethernet, U
The ISD 510/DSD 510 system is designed to accommodate various servo drives and consists of:
• VLT Integrated Servo Drive ISD
®
• VLT Decentral Servo Drive DSD 510.
®
• A central power supply: Power Supply Module (PSM 510).
• Decentral Access Module (DAM 510).
• Auxiliary Capacitors Module (ACM 510), optional
• Expansion Module (EXM 510), optional
• Cabling infrastructure.
• Blind caps
• Software
