Procedure
1. Insert the wires into the UDC, AUX, and STO connectors.
2. Secure the feed-in cable using the cable ties [3], ensuring that the shielded area is positioned exactly under the cable tie.
3. Secure the STO cable using the cable tie [4], ensuring that the shielded area is positioned exactly under the cable tie.
4. Insert the connectors on the feed-in cable into their corresponding terminal block on the DAM 510.
5. Tighten the screw on the EMC plate [6]. The tightening torque is 3 Nm.
6. Insert the RJ45 bus connector [2].
7. Connect the DAM 510 to PE using one of the PE screws on the front side [1] and a PE wire. The tightening torque is 3 Nm.

5.12 Connecting the Auxiliary Capacitors Module ACM 510

1
2
5
4 3

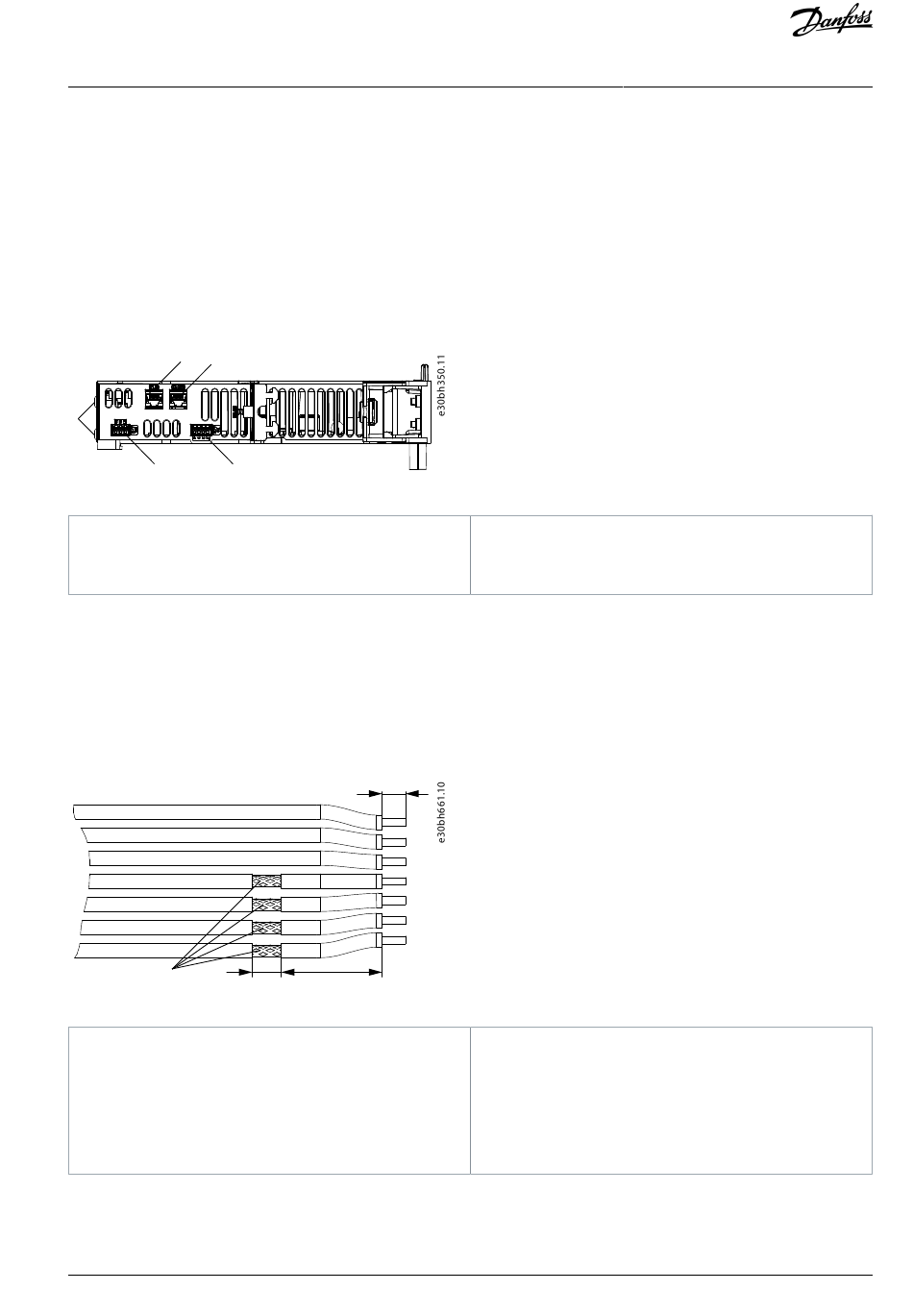

Illustration 51: Connectors on the Top of ACM 510
1 Ethernet connector IN (X1 IN)
2 Ethernet connector OUT (X2 OUT)
Procedure
1.
Connect the Ethernet cable from the output of the previous system module to the input connector (X1 IN) [1].
2. If I/Os are required, insert the wires into the I/O connector (I/O ACM) and insert the connector [3].
3.
If a relay is required, insert the wires into the relay connector (REL ACM) and insert the connector [4].
4. Connect the ACM 510 to PE using one of the PE screws on the front side [5] and a PE wire.. The tightening torque is 3 Nm.

5.13 Connecting the Expansion Module EXM 510

8
Illustration 52: Expansion Module Cable
1 24/48 V
2 GND
3 Functional earth
4 DC–
Danfoss A/S © 2020.08
12
1
2
3
4
5
6
7
15 53
3 I/O connector (I/O ACM)
4 Relay connector (REL ACM)
5 DC–
6 DC+
7 DC+
8 Shielded area
AQ262449648484en-000101 / 175R1135 | 79
