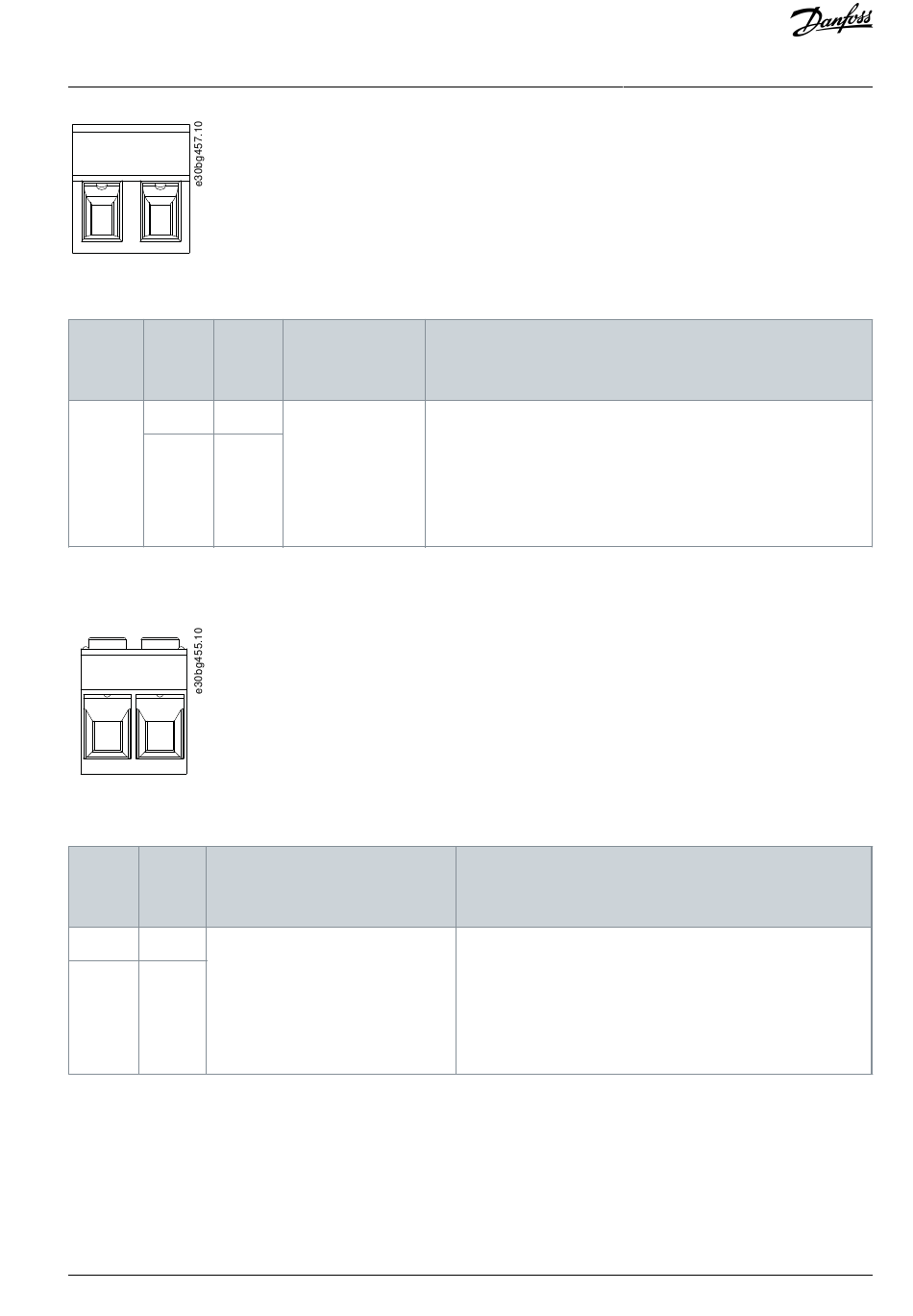

Illustration 153: STO Connector on the Bottom of DAM 510
Table 146: Pin Assignment of STO Connector on the Bottom of DAM 510
Connec- De-
Pins
tor name scrip-
(left to
tion
right)
STO DAM 1 STO+
2 STO–
11.9.10 UDC Connector
The UDC connector is located on the bottom of the Decentral Access Module (DAM 510).
Illustration 154: UDC Connector
Table 147: Pin Assignment of UDC Connector
De- Notes
Pins
scrip-
(left to
tion
right)
1 UDC+
Used to connect the DC-link voltage
from the Decentral access Module
2 UDC–
(DAM 510) to the hybrid cable for the
ISD line.
11.9.11 AUX Connector
The AUX connector is located on the bottom of the Decentral Access Module (DAM 510).
Danfoss A/S © 2020.08
Notes Rating/parameter
Used for the STO
Nominal voltage: 24 V DC ±10%
output from the
Nominal current: Depends on the number of servo drives in the appli-
DAM to the hybrid
cation.
cable.
Maximum current: 1 A
Conductor cross-section range: 0.2–1.5 mm
Plug terminal tightening torque: 0.22–0.25 Nm
Rating/parameter
Nominal voltage: 560–800 V DC
Nominal current: Depends on the number of servo drives in the
application.
Maximum current: 25 A
Conductor cross-section range: 0.2–6 mm
Plug terminal tightening torque: 0.5–0.8 Nm
AQ262449648484en-000101 / 175R1135 | 211
Specifications
2
(AWG 24–AWG 16)
2
(AWG 24–AWG 10)
