6.13.9 Defining Send Clock and Update Time

6.13.9.1 Configuring the Send Clock Time

Procedure
1.
Open the HW Config tool.
2. Select the station with the PROFINET
3. Select the menu [Edit → PROFINET IO → Domain management].
4.
In the next window, open the Sync Domain tab and in the Send clock time [ms] field, select an appropriate time for the proc-
ess, for example 1.000 ms, then click on OK.


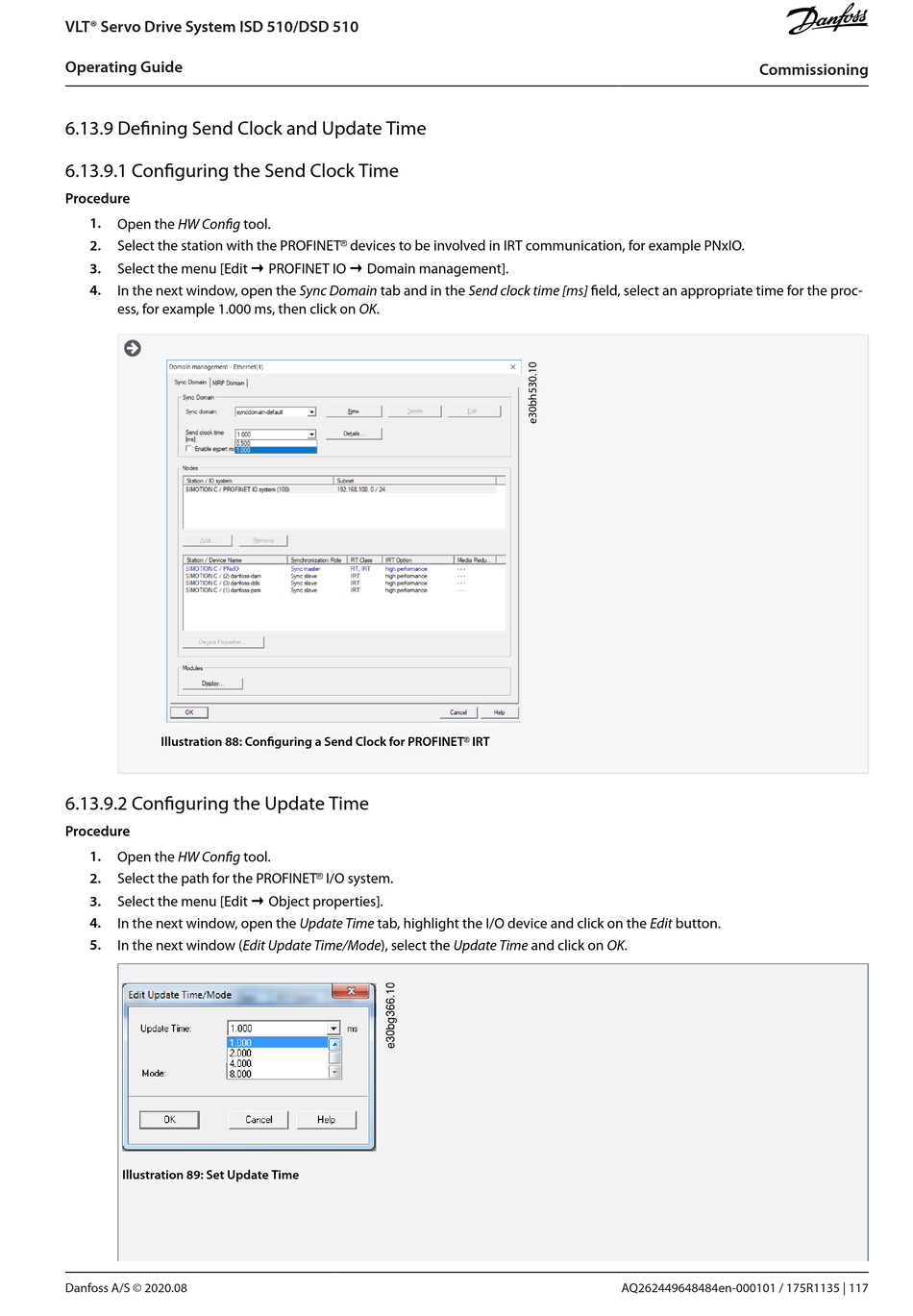

Illustration 88: Configuring a Send Clock for PROFINET

6.13.9.2 Configuring the Update Time

Procedure
1.
Open the HW Config tool.
2. Select the path for the PROFINET
3. Select the menu [Edit → Object properties].
4.
In the next window, open the Update Time tab, highlight the I/O device and click on the Edit button.
5. In the next window (Edit Update Time/Mode), select the Update Time and click on OK.
Illustration 89: Set Update Time
