X7

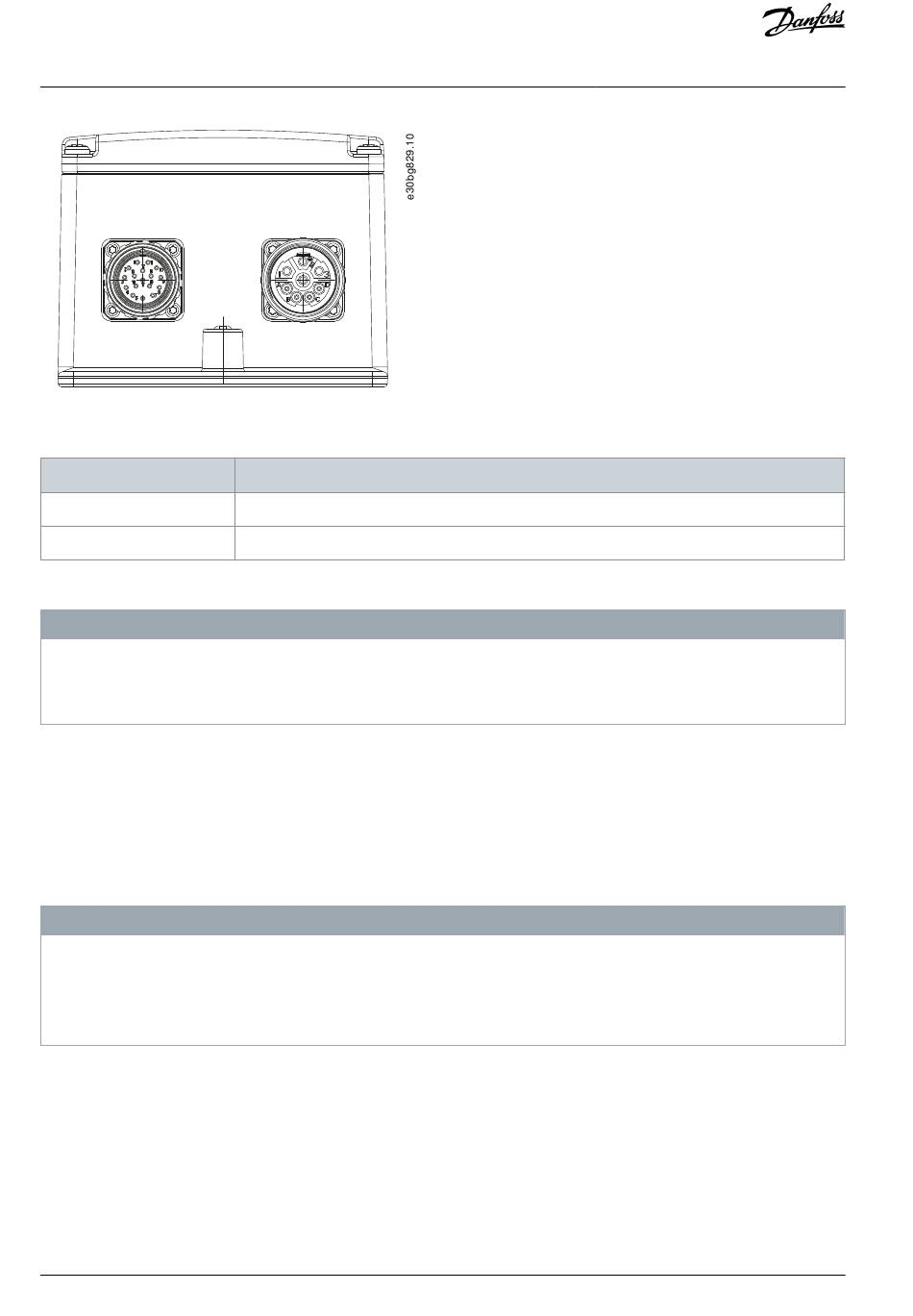

Illustration 3: X6 and X7 Connectors on the DSD 510 Servo Drive
Table 10: Connectors on the DSD 510 Servo Drive
Connector
X6
X7
The maximum cable length from the DSD 510 to the motor is 5 m.
-
The DSD 510 servo drives are available with single plug version for specifications HIPERFACE DSL, EnDat 2.2, and sensorless.
This plug is for a hybrid cable containing both the motor and the feedback cables.
-
All other specifications use the double plug version with separate motor and feedback cables.

3.4 Power Supply Module (PSM 510)

3.4.1 Overview

PSM is the abbreviation for Power Supply Module. It is the power supply to the servo system. The PSM 510 supplies a DC power
voltage and guarantees high-density output. The DC-link and 24/48 V DC are distributed via the backlink in the backplates to all
system modules. The PSM 510 can be controlled via Ethernet-based fieldbus.
LEDs on the front of the PSM 510 show the operating status and warnings.
-
The system modules are designed for use within a control cabinet. If the STO function is used, the cabinet must be rated at
least IP54.
-
The PSM 510 has a protection rating of IP20 according to IEC/EN 60529 (except connectors, which are IP00).
-
The PSM 510 may be damaged if exposed to fluids.
All power cables are wired into the PSM 510, therefore at least 1 PSM 510 is required for each system.
The PSM 510 also performs service functions, such as voltage measuring, and is cooled by an internal fan.
The PSM 510 is available in 3 power sizes and delivers an output power of 10 kW, 20 kW, or 30 kW with 200% overload capacity for 3
seconds. To achieve an output power of up to 60 kW, 2 PSM 510 modules can be used in parallel.
An example type code for the PSM 510 is: MSD510PSM510F2P10C0D6E20PLSXXXXXXXXXXXXX.
32 | Danfoss A/S © 2020.08
X6
Description
M23 8-pole motor power connector
M23 17-pole motor feedback connector
N O T I C E
N O T I C E
