VLT® Servo Drive System ISD 510/DSD 510
Operating Guide

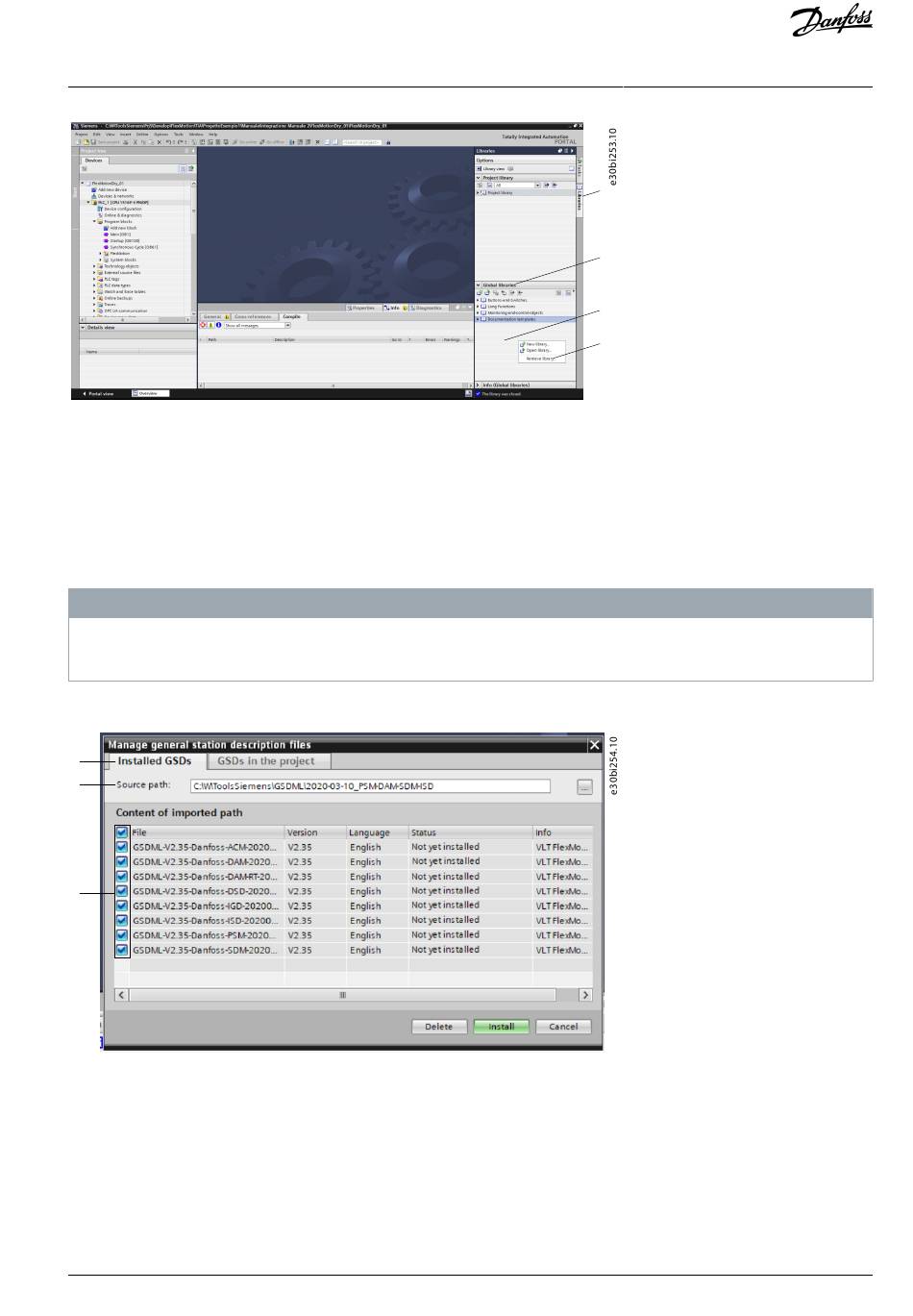

Illustration 96: Including the Servo Motion Libraries
Procedure
1.
Expand the Libraries window [1], then select and expand the Global libraries section [2].
2.
Right-click on the empty area [3] then select menu entry Retrieve library... [4].
3.
Select the Danfoss_VLT_ServoMotion_V_x_y_z.zal1x file (according to the location on the hard drive).
6.15.4 Importing Devices into TIA
-
For each physical servo drive, PSM 510, DAM 510, or ACM 510, add 1 entry to the PROFINET
ware Catalog.
Procedure
1
2
3
1.
Open the Hardware Catalog.
2.
Select [Options → Manage general station description files]
3.
In tab Installed GSDs [1], select the Source path [2] where the files are located.
4.
To add a servo drive, select one of the xml files [3] and click on Install. In the filename, 2.xx represents the version number
and yyyymmdd represents the date.
-
GSDML-V2.xx-Danfoss-ISD-yyyymmdd.xml
-
GSDML-V2.xx-Danfoss-DSD-yyyymmdd.xml
5.
Repeat steps 2 and 3 for:
Danfoss A/S © 2020.08
N O T I C E
Commissioning
1
2
3
4
Ethernet network in the Hard-
®
AQ262449648484en-000101 / 175R1135 | 125
