VLT® Servo Drive System ISD 510/DSD 510
Operating Guide
3.
Mount the backplates to the mounting plate in the control cabinet using M5 screws with a minimum head diameter or
washer diameter of 9.5 mm. The tightening torque is 3 Nm.

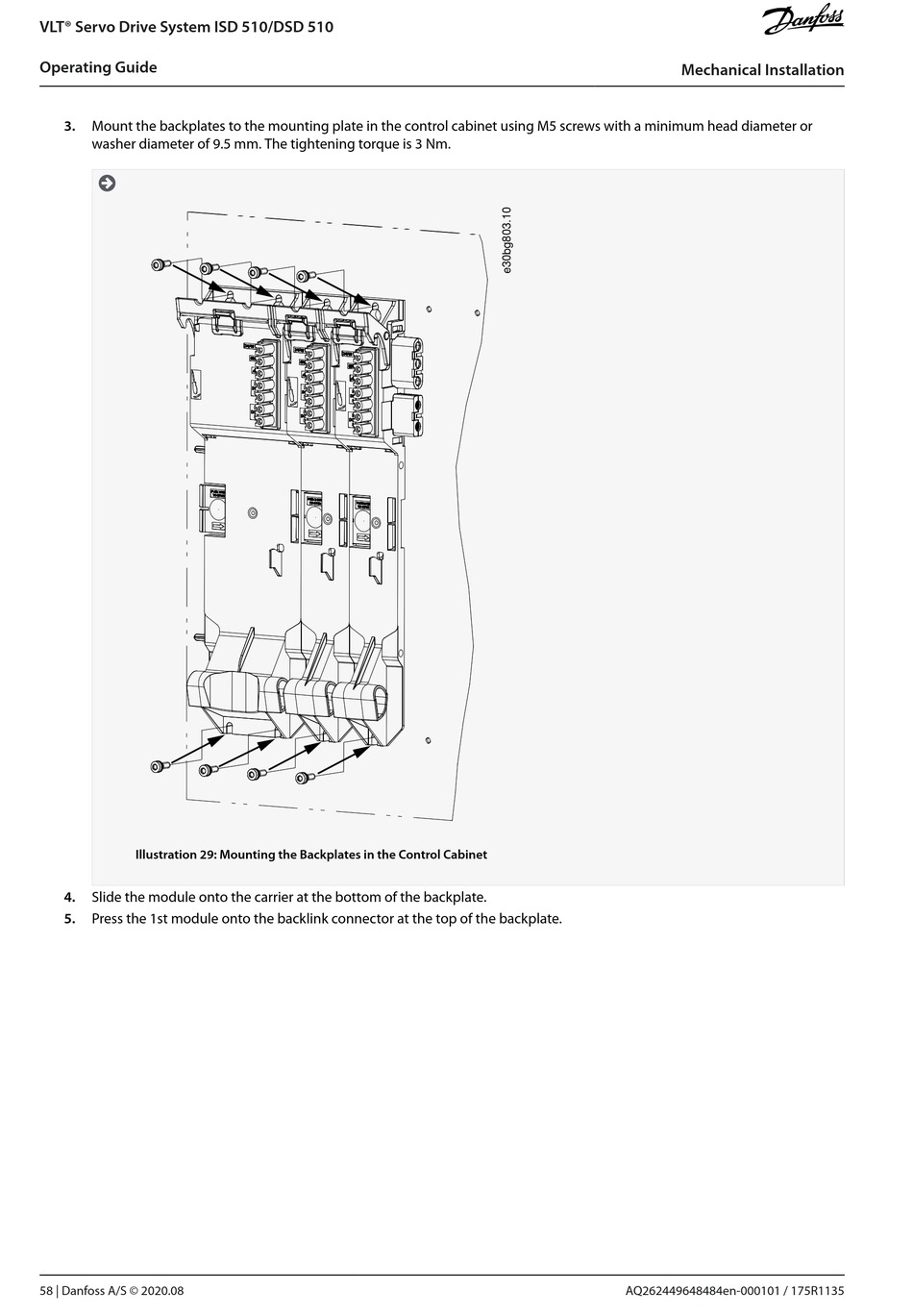

Illustration 29: Mounting the Backplates in the Control Cabinet
4.
Slide the module onto the carrier at the bottom of the backplate.
5.
Press the 1st module onto the backlink connector at the top of the backplate.
58 | Danfoss A/S © 2020.08
Mechanical Installation
AQ262449648484en-000101 / 175R1135
