VLT® Servo Drive System ISD 510/DSD 510
Operating Guide
4

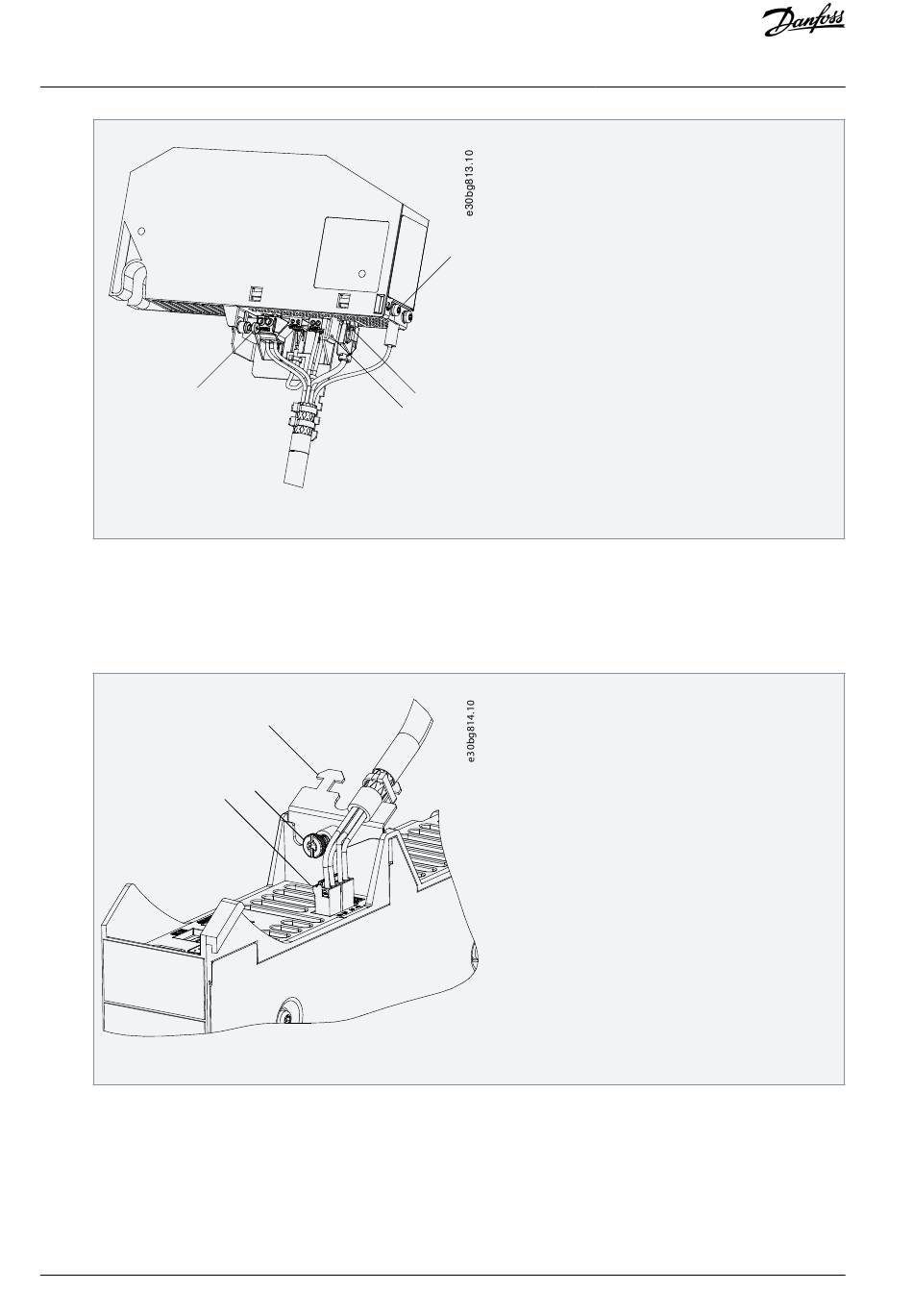

Illustration 110: Disconnecting the EMC Plate
- Unplug the RJ45 connector [2] (only on DAM 510).
- Unscrew the screw [4] on the EMC plate.
- Press the clip [3] to release the EMC plate.
- Unscrew the PE screw [1].
3. Disconnect the I/O shielding plate on the top of the system modules:
Illustration 111: Disconnecting the I/O Shielding Plate
- Unplug the top connectors [1].
- Unscrew the screw [2] on the I/O shielding plate [3].
- Pull the I/O shielding plate upwards to remove it.
4.
Release the securing clamp [1] at the top of the module.
178 | Danfoss A/S © 2020.08
3
2
1
1
2
3
Maintenance, Decomissioning, and
AQ262449648484en-000101 / 175R1135
Disposal
