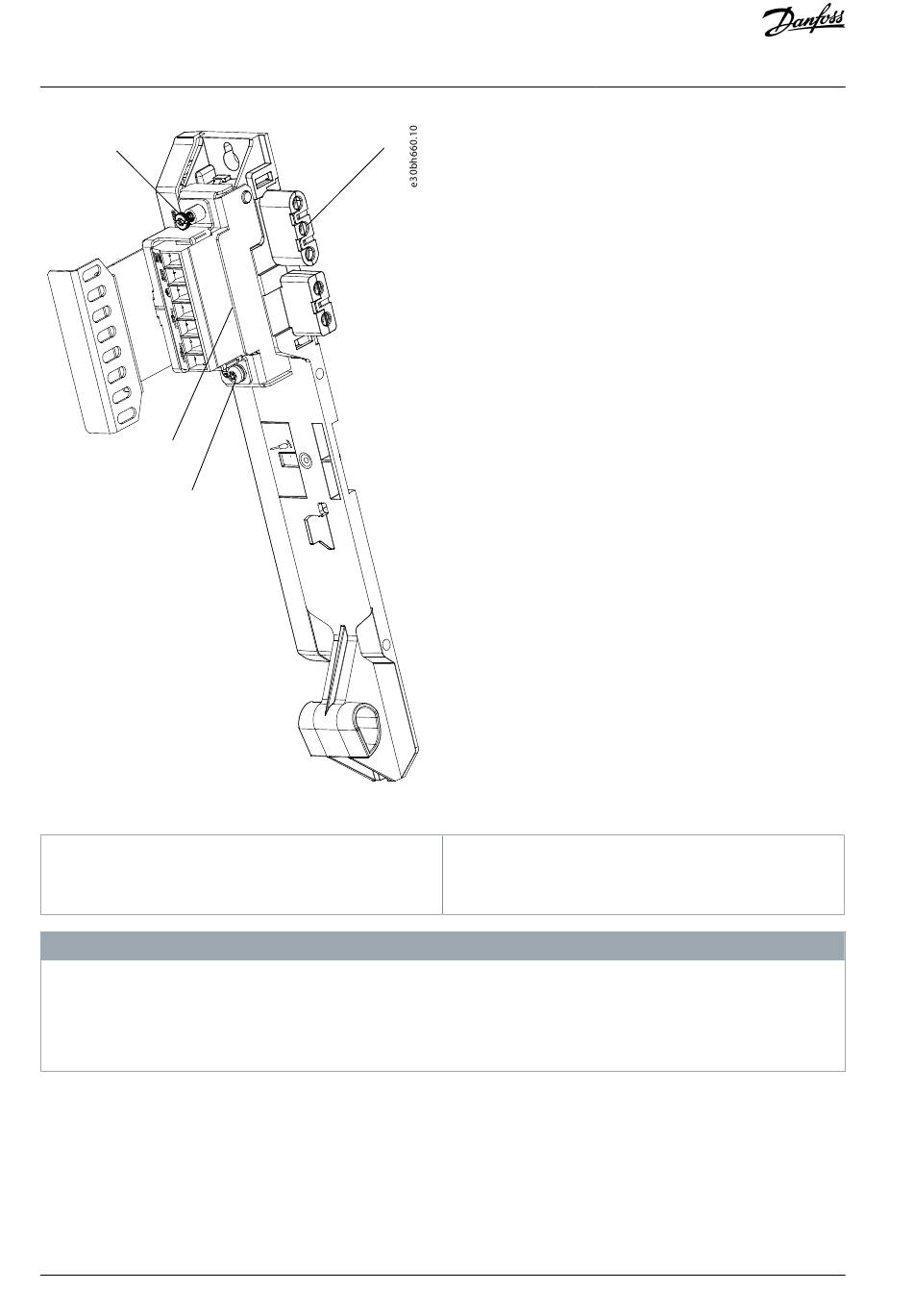

Illustration 7: EXM 510
1 EMC Shielding Plate
2 Backplate
-
The system modules are designed for use within a control cabinet. If the STO function is used, the cabinet must be rated at
least IP54.
-
The EXM 510 has a protection rating of IP20 according to IEC/EN 60529.
-
The EXM 510 may be damaged if exposed to fluids.
An example type code for the EXM 510 is:
MSD510EXM510F1C062AD6E20XXXXXXXXXXXXXXXX
