VLT® Servo Drive System ISD 510/DSD 510
Operating Guide
Pin
Description
Notes
8
/SSI DAT
Negative SSI/BiSS data in
11.8.4 X5: LCP Connector (M8, 6 pole)
The X5 connector is used to connect the LCP directly to the ISD 510/DSD 510 advanced servo drives via a cable.
4
3
6
5
2
1

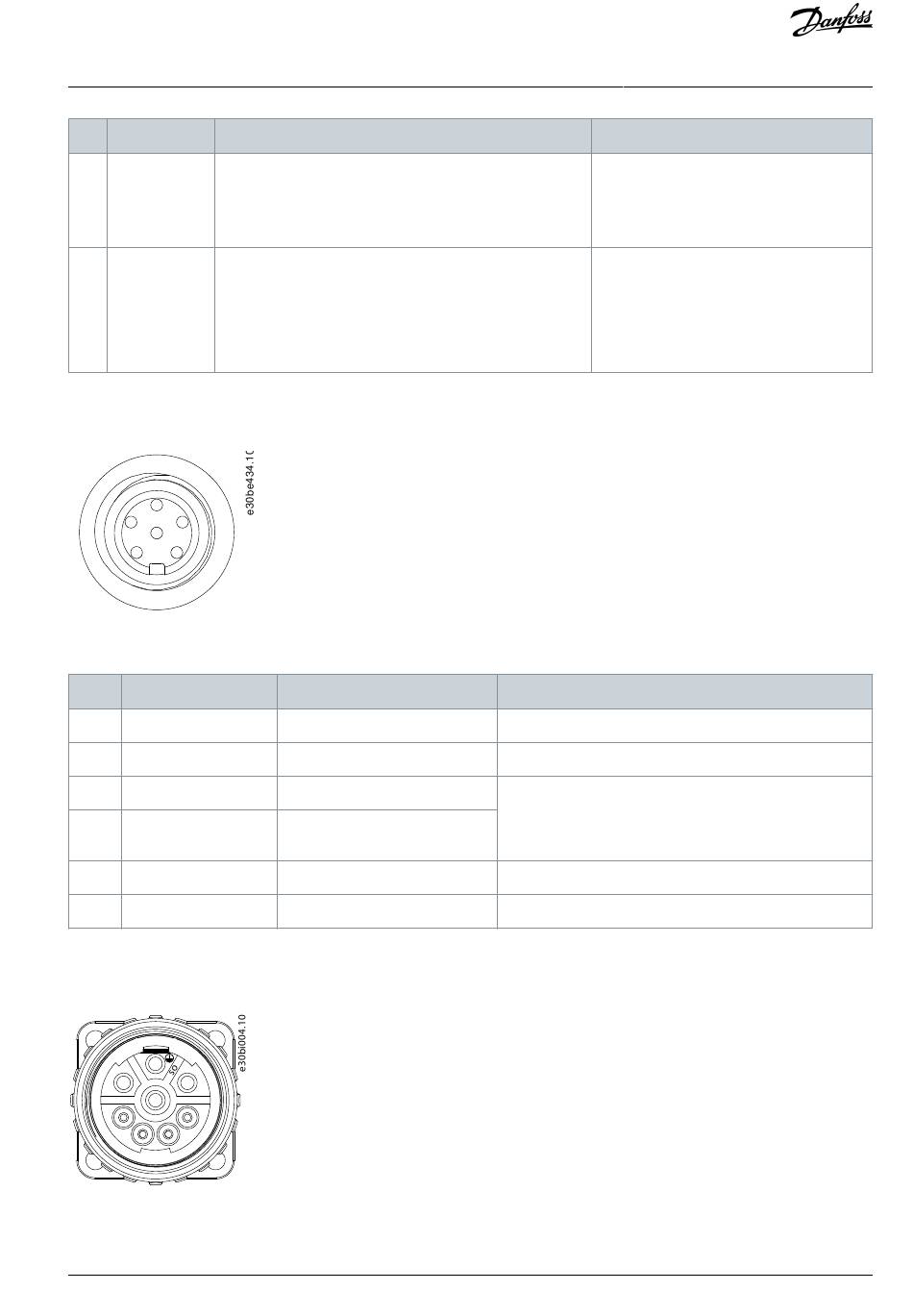

Illustration 139: Pin Assignment of X5 LCP Connector (M8, 6 pole)
Table 132: Pin Assignment of X5 LCP Connector
Pin
Description
1
Not connected
2
/LCP RST
3
LCP RS485
4
/LCP RS485
5
GND
6
VCC
11.8.5 X6: Standard/HIPERFACE DSL Motor Connector
The standard/HIPERFACE DSL motor connector is an M23 female connector.
1
3
A
D
B
C
Illustration 140: Pin Assignment of X6 Motor Connector
Danfoss A/S © 2020.08
Notes
Reset
Positive RS485 signal
Negative RS485 signal
GND
5 V supply for LCP
Rating/parameter
Analog input:
Nominal voltage: 0-10 V
Input impedance: 5.46 kΩ
Bandwidth: ≦ 25 kHz
SSI:
Bus speed: 0.5 Mbit with 25 m cable
BiSS:
Fulfills the RS485 specification.
Maximum cable length (SSI & BiSS): 25 m
Rating/parameter
Active at ≦0.5 V
Speed:
38.4 kBd
The levels fulfill the RS485 specification.
5 V ±10% at 120 mA maximum load
AQ262449648484en-000101 / 175R1135 | 201
