VLT® Servo Drive System ISD 510/DSD 510
Operating Guide

5.11 Connecting the Decentral Access Module (DAM 510)

5.11.1 Connecting the Cables on the Top of the Decentral Access Module DAM 510

1
2
5

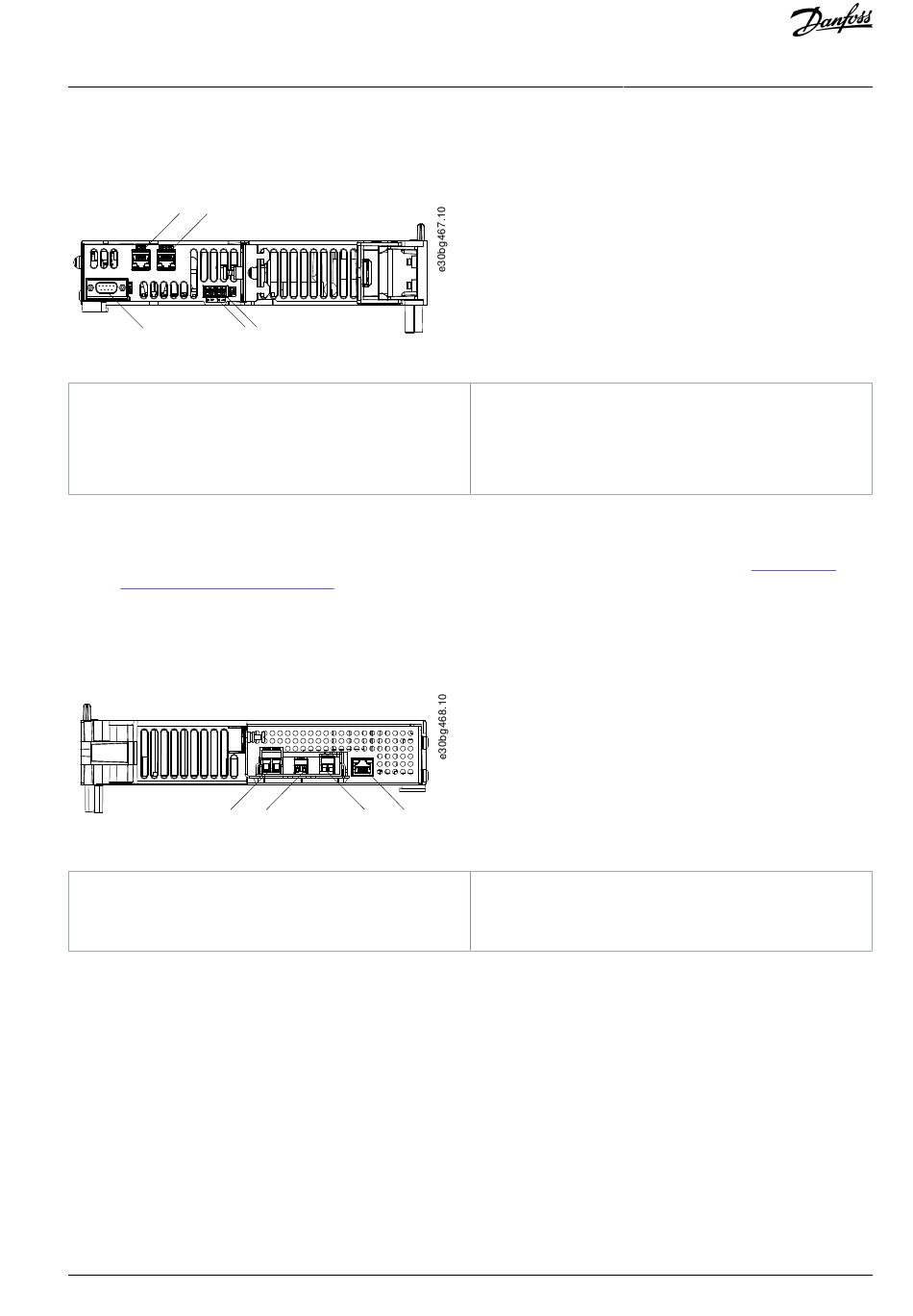

Illustration 47: Connectors on the Top of DAM 510
1
Ethernet connector IN (X1 IN)
2
Ethernet connector OUT (X3 OUT)
3
STO connector IN (STO DAM)
Procedure
1.
Connect the Ethernet cable from the output of the previous module to the input connector (X1 IN) [1].
2.
Insert the wires from the STO output of the previous module into the 24 V IN (STO input) connector, see
Connectors on the Top of DAM
3.
Insert the 24 V IN (STO connector IN (STO DAM)) connector [3] into the DAM 510.
4.
If required, connect the external encoder connector [5].

5.11.2 Connecting the Feed-In Cable

4
Illustration 48: Connectors on the Bottom of DAM 510
1
Ethernet connector
2
AUX connector
Danfoss A/S © 2020.08
4
3
510.
3
2
1
4
STO connector OUT (STO DAM)
5
External encoder connector (E DAM)
3
STO out connector
4
UDC connector
AQ262449648484en-000101 / 175R1135 | 77
Electrical Installation
