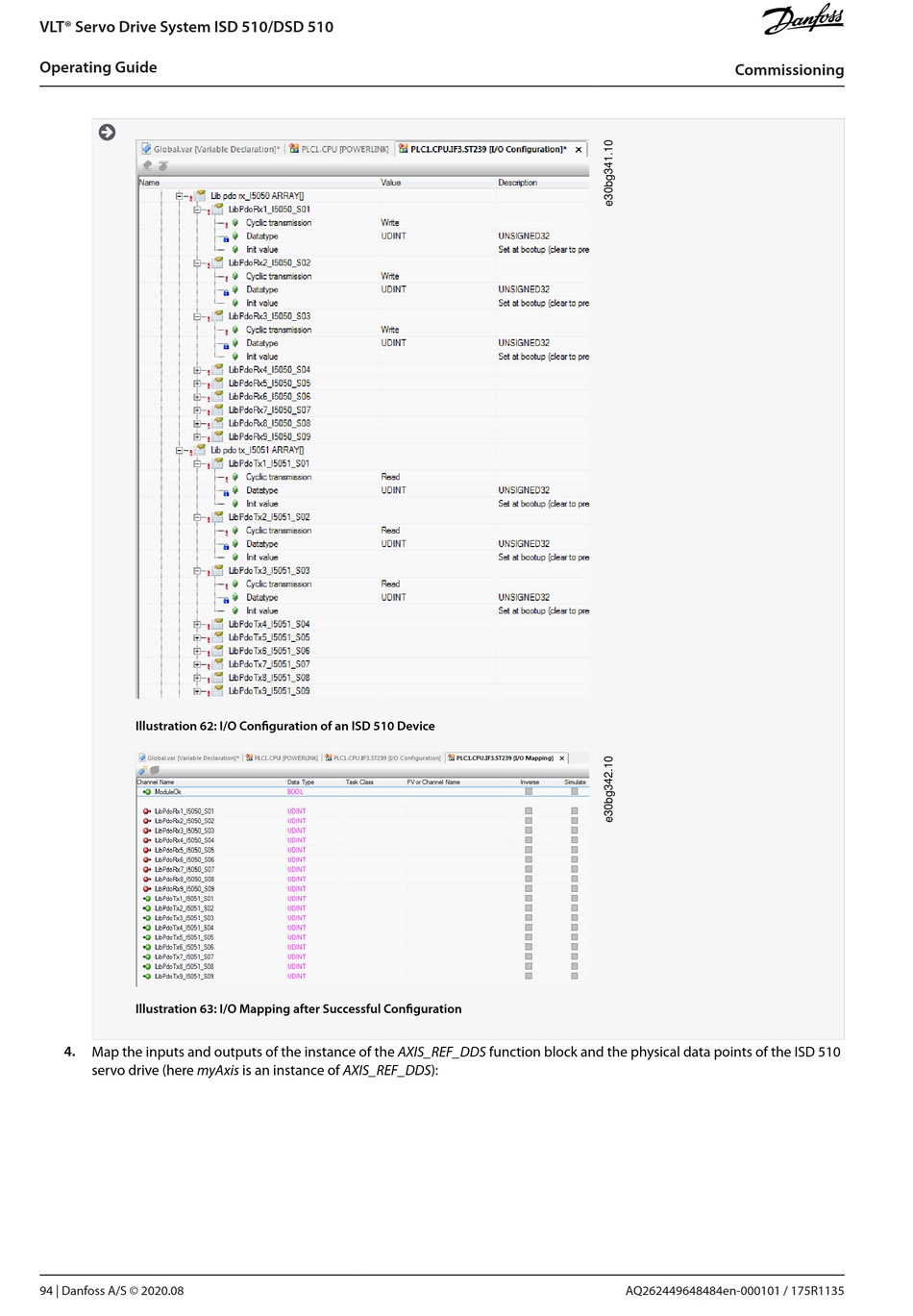

Illustration 62: I/O Configuration of an ISD 510 Device
Illustration 63: I/O Mapping after Successful Configuration
4.
Map the inputs and outputs of the instance of the AXIS_REF_DDS function block and the physical data points of the ISD 510
servo drive (here myAxis is an instance of AXIS_REF_DDS):
