VLT® Servo Drive System ISD 510/DSD 510
Operating Guide

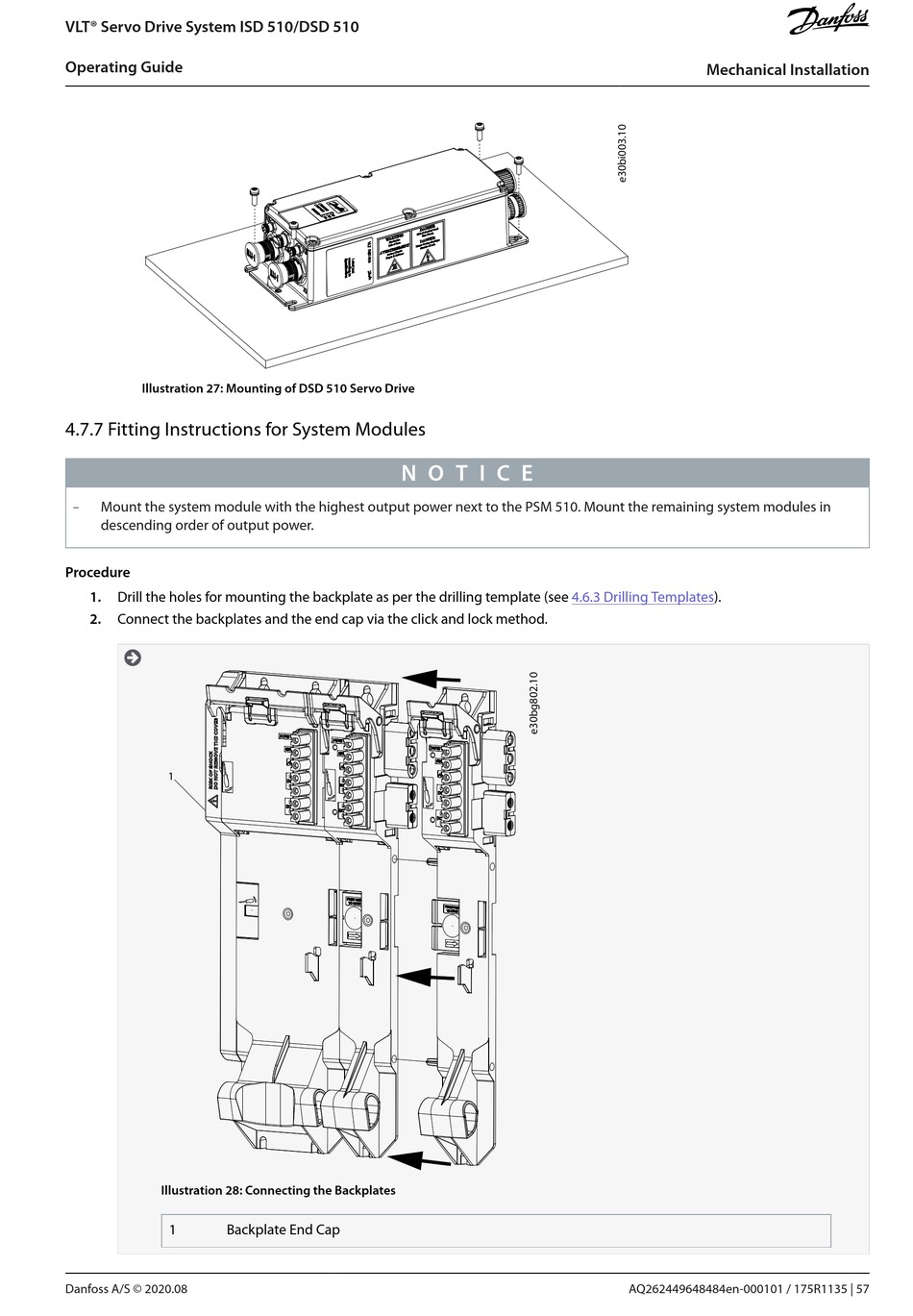

Illustration 27: Mounting of DSD 510 Servo Drive
4.7.7 Fitting Instructions for System Modules
-
Mount the system module with the highest output power next to the PSM 510. Mount the remaining system modules in
descending order of output power.
Procedure
1.
Drill the holes for mounting the backplate as per the drilling template (see
2.
Connect the backplates and the end cap via the click and lock method.
1
Illustration 28: Connecting the Backplates
1
Backplate End Cap
Danfoss A/S © 2020.08
N O T I C E
4.6.3 Drilling
Mechanical Installation
Templates).
AQ262449648484en-000101 / 175R1135 | 57
