VLT® Servo Drive System ISD 510/DSD 510
Operating Guide
Connector
M23

5.9.3 Connecting Hybrid Cables

Procedure
1.
Align the female connector of the M23 feed-in cable to the male input connector (X1) of the 1st ISD 510/DSD 510 servo
drive.
2.
Fully rotate the threaded ring of the cable connector counterclockwise. Use the marking OPEN as a reference for the cable
connector.
3.
Ensure the marking OPEN on the cable connector is facing the servo drive.
4.
Press the connector towards the electronic housing on the servo drive until the sealing on the connector is entirely cov-
ered.
5.
Tighten the M23 feed-in cable connector by rotating the threaded ring clockwise out of the flat area around the OPEN
marking.

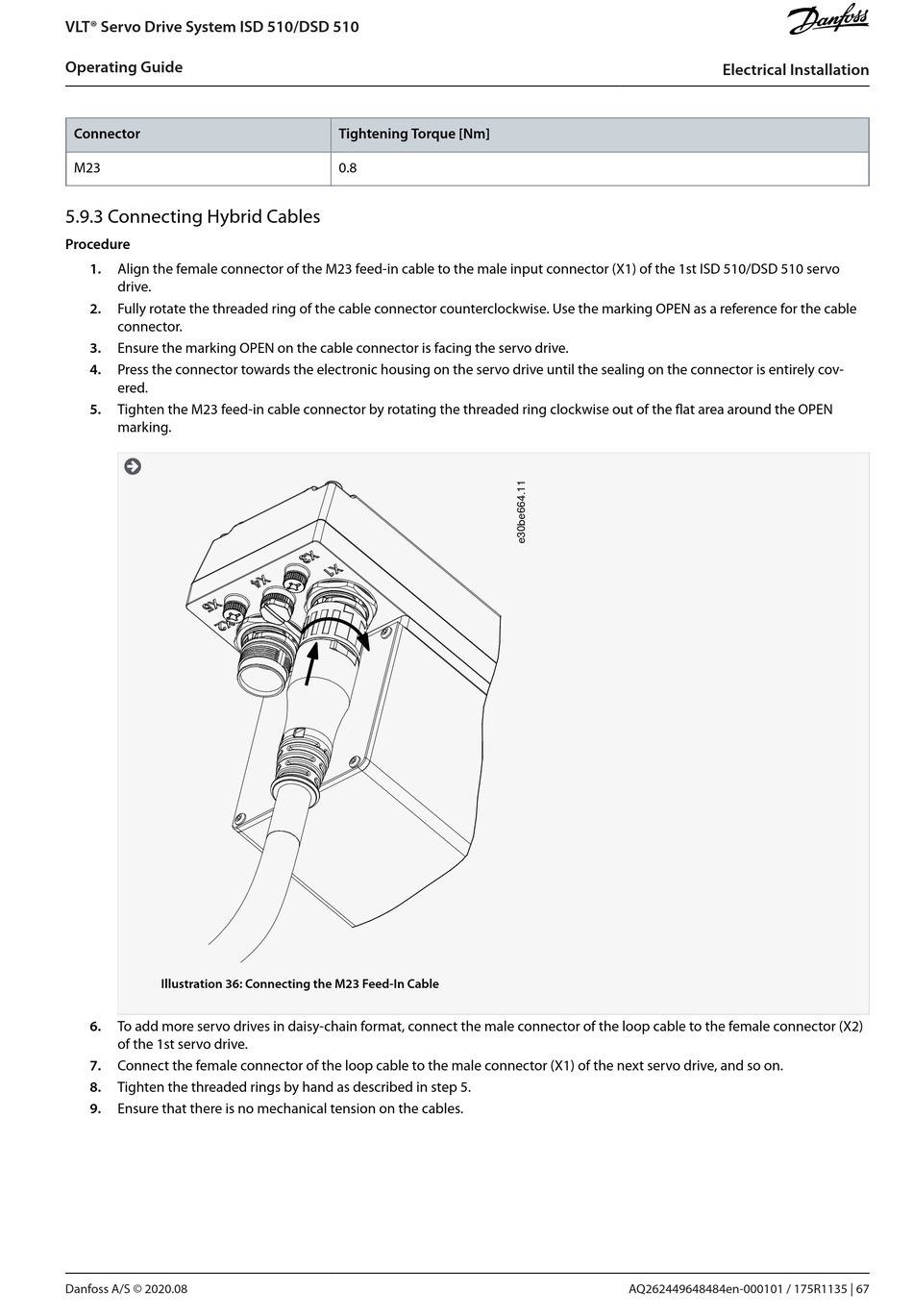

Illustration 36: Connecting the M23 Feed-In Cable
6.
To add more servo drives in daisy-chain format, connect the male connector of the loop cable to the female connector (X2)
of the 1st servo drive.
7.
Connect the female connector of the loop cable to the male connector (X1) of the next servo drive, and so on.
8.
Tighten the threaded rings by hand as described in step 5.
9.
Ensure that there is no mechanical tension on the cables.
Danfoss A/S © 2020.08
Tightening Torque [Nm]
0.8
Electrical Installation
AQ262449648484en-000101 / 175R1135 | 67
