Danfoss VLT ISD 510 Operating Manual page 136

VLT® Servo Drive System ISD 510/DSD 510
Operating Guide
STATUS PSM STATUS DAM STATUS DAM
DEV
STO DEV DEV
STO STO
NET ST NET ST NET ST
AUX AUX
LINK/ACT
LINK/ACT LINK/ACT
X1 X1 X1
X2 X2 X2
X3 X3
1
LCP LCP LCP
PSM DAM DAM
510 510 510

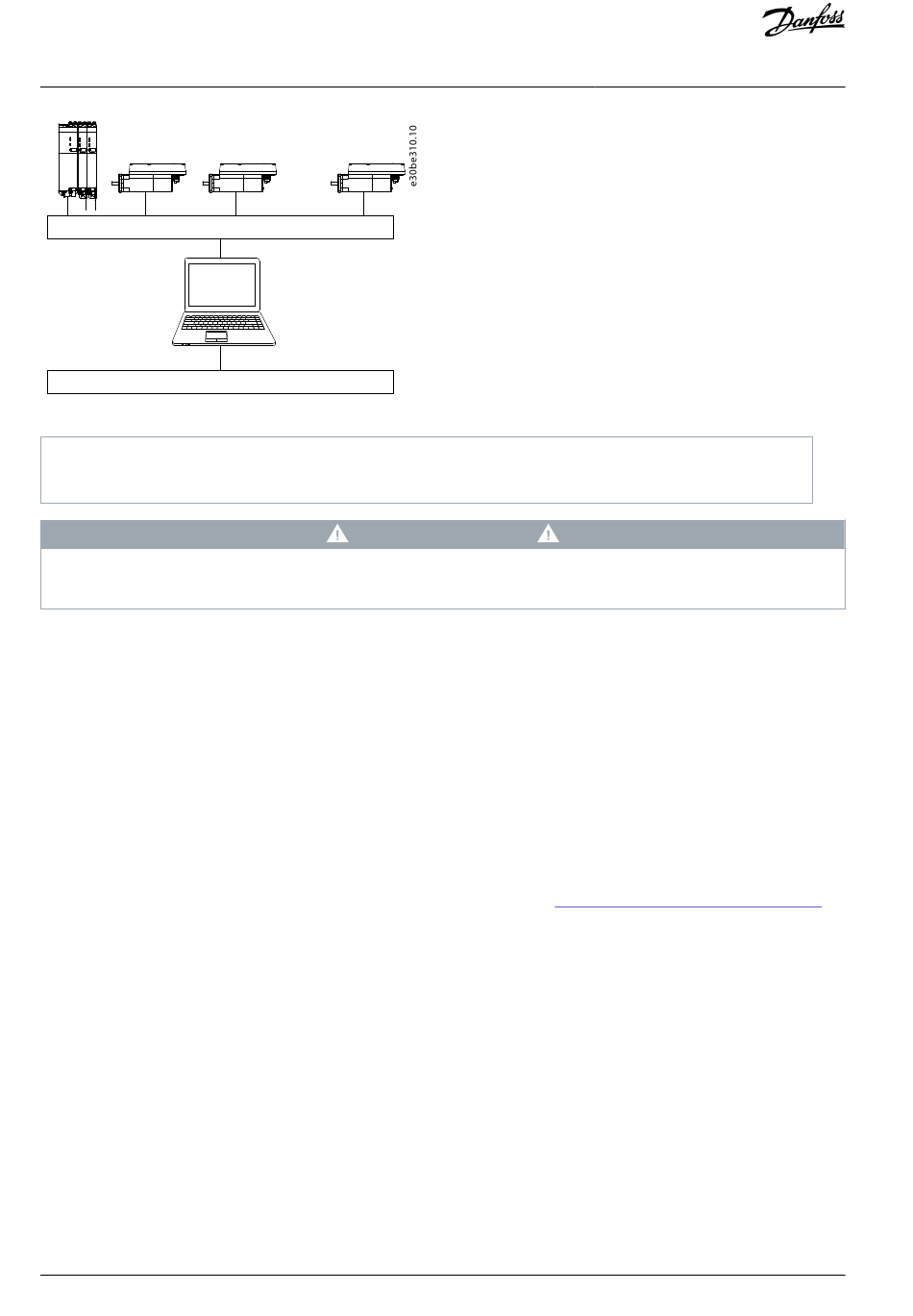

Illustration 99: Logical View of Direct Ethernet-based Fieldbus Communication
A Ethernet-based fieldbus communication
B VLT Servo Toolbox host system
®
-
The logical view only shows the connectivity from a high-level software perspective and does not reflect the actual physical
topology of the network.
6.17.4.4.2 Network Settings for Direct Communication with Ethernet POWERLINK®
Disable all network protocols except TCP/IPv4 on the network interface used for direct Ethernet POWERLINK
prevents other PC software or the operating system using this network interface for other tasks, such as file and printer sharing and
network discovery. Disabling these protocols reduces the number of non-relevant packets sent over the network interface and thus
reduces the overall network load.
6.17.4.4.3 Disabling Unused Protocols on the Network Interface on the PC
Procedure
1.
Open the Network and Sharing Center.
2.
On the left, click on Change adapter settings.
3.
Right-click on the network interface used for fieldbus communication and select Properties.
4.
Uncheck all checkboxes except the one for Internet Protocol Version 4 (TCP/IPv4).
5.
Disable the IPv4 Checksum offload on the network interfaces as described in
136 | Danfoss A/S © 2020.08
2 n
. . .
A
B
W A R N I N G
communication. This
®
6.17.4.3.3 Enabling Indirect Communication.
AQ262449648484en-000101 / 175R1135
Commissioning
