Installation Instructions
In-back/Out-back Cooling Kit for E1h/E2h Drives
®
VLT Series FC 102, FC 103, FC 202, and FC 302
Description
The in-back/out-back cooling kit fits the following drives in
E1h/E2h enclosures:
• ®
VLT HVAC Drive FC 102
®
•
VLT Refrigeration Drive FC 103
• ®
VLT AQUA Drive FC 202
• ®
VLT AutomationDrive FC 302

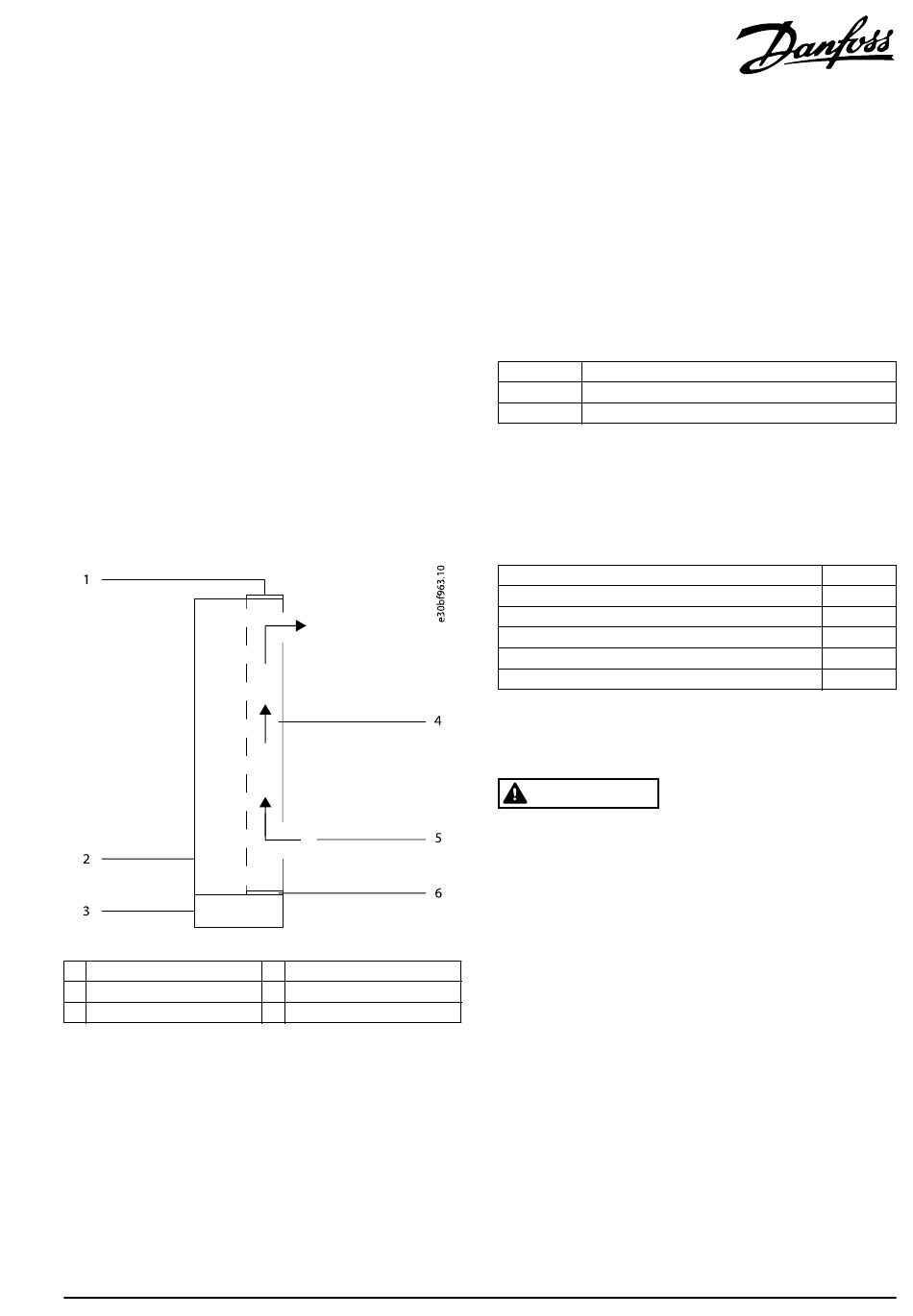

When the kit is installed, air flows into the lower back duct
and out through the upper back duct of the drive. See
Illustration 1.1.
1 Top cover plate
2 Enclosure
3 Pedestal
Illustration 1.1 Direction of Airflow with Kit Installed
4 Cooling channel
5 Airflow direction
6 Bottom cover plate
Danfoss A/S © 09/2017 All rights reserved.
Kit Part Numbers
Use these instructions with the following cooling kits.
Kit number Kit description
176F6617 In-back/out-back cooling kit for E1h drive
176F6618 In-back/out-back cooling kit for E2h drive
Table 1.1 Part Numbers for Cooling Kits
Items Supplied
The in-back/out-back cooling kit contains the following items.
Item
Top cover plate
Top gasket
Bottom cover plate
Bottom gasket
M5x14 screws
Table 1.2 Items Supplied in Cooling Kit
Safety Information
WARNING
DISCHARGE TIME
The drive contains DC-link capacitors, which can remain
charged even when the drive is not powered. High voltage
can be present even when the warning LED indicator lights
are off. Failure to wait 40 minutes after power has been
removed before performing service or repair work can result
in death or serious injury.
•
Stop the motor.
•
Disconnect AC mains and remote DC-link power
supplies, including battery back-ups, UPS, and DC-
link connections to other drives.
•
Disconnect or lock PM motor.
•
Wait 40 minutes for capacitors to discharge fully.
•
Before performing any service or repair work, use
an appropriate voltage measuring device to make
sure that the capacitors are fully discharged.
Quantity
1
1
1
1
8–10
