VLT® Servo Drive System ISD 510/DSD 510
Operating Guide
1 Ethernet connector IN (X1 IN)
2 Ethernet connector OUT (X2 OUT)
3 24/48 V IN connector (INPUT 24/48 V)
4 STO connector IN (STO PSM)
Procedure
1. Connect the Ethernet cable from the PLC to the Ethernet input connector (X1 IN) [1].
2.
Connect the Ethernet cable from the Ethernet output connector (X2 OUT) [2] to the next module.
3. Insert the wires into the 24/48 V IN (INPUT 24/48 V) connector.
4.
Insert the 24/48 V IN connector [3].
5. Insert the wires into the STO connector IN (STO PSM) connector.
6.
Insert the STO connector IN connector [4].
7. Insert the wires into the STO connector OUT (STO PSM) connector.
8.
Insert the STO connector OUT connector [5].
9. If I/Os are required, insert the wires into the I/O connector and insert the connector (I/O PSM) [6].
10.
If a relay is required, insert the wires into the relay connector and insert the connector (REL PSM) [7].

5.10.2.2 Connecting the Cables on the Bottom of the Power Supply Module PSM 510

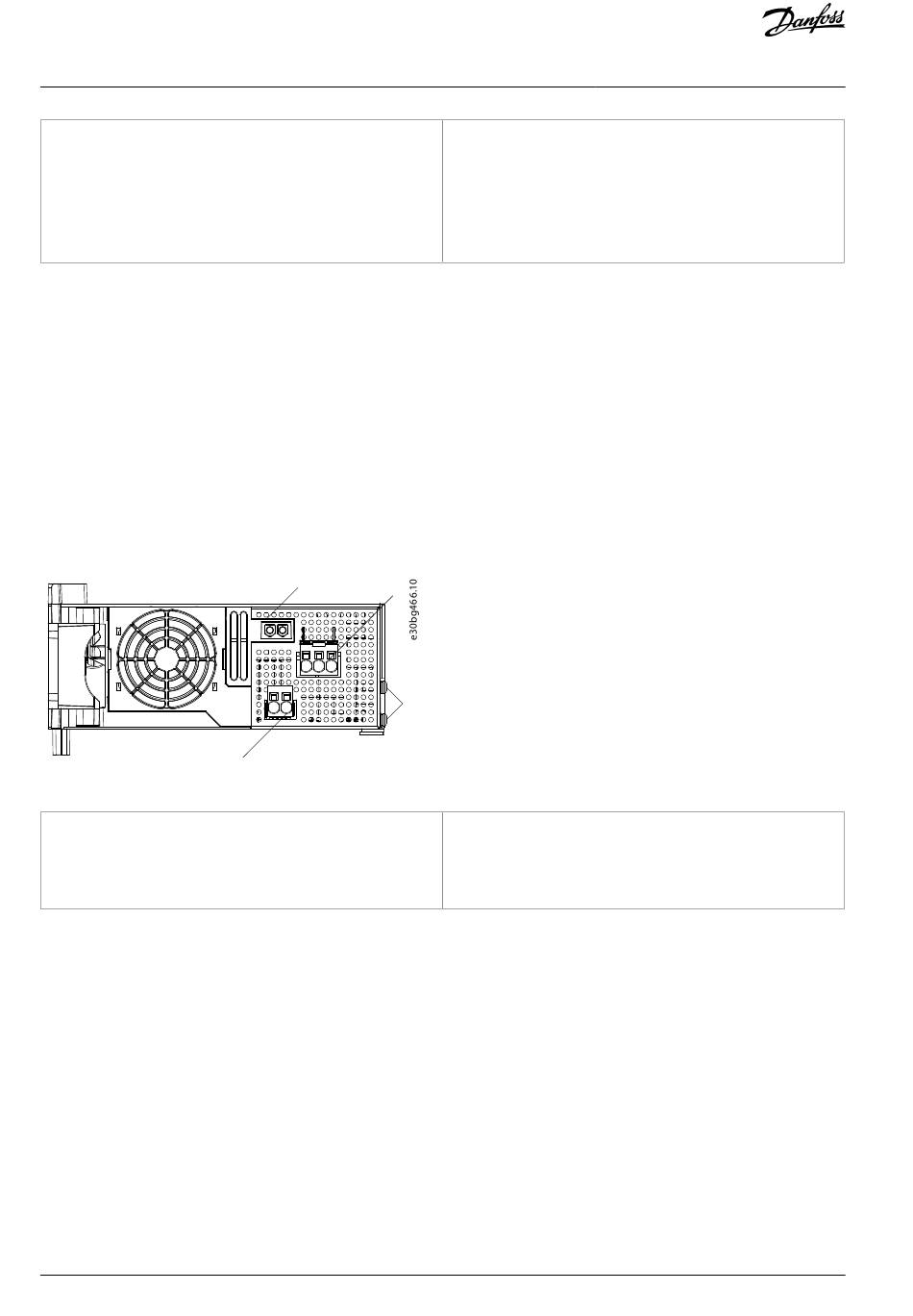

Illustration 46: Connectors on the Bottom of PSM 510
1 Holder for internal brake resistor connector when
not in use
2 AC mains supply connector
Procedure
1. Insert the wires into the AC mains supply connector.
2. Insert the AC mains supply connector [2].
3. If an external brake resistor is required:
a. Unplug the internal brake resistor connector [4] and insert the external brake connector in its place.
b. Plug the internal brake resistor connector to the internal brake connector holder [1].
4. Connect the PSM 510 to PE using one of the PE screws on the front side [3] and a PE wire. The tightening torque is 3 Nm.
76 | Danfoss A/S © 2020.08
1
2
3
4
5 STO connector OUT (STO PSM)
6 I/O connector (I/O PSM)
7 Relay connector (REL PSM)
3 PE screws
4 Internal/external brake resistor connector
AQ262449648484en-000101 / 175R1135
Electrical Installation
