11.3 Dimensions
11.3.1 ISD 510 Servo Drive Flange Dimensions
Size
Size 1, 1.5 Nm
Size 2, 2.1 Nm
Size 2, 2.9 Nm
Size 2, 3.8 Nm
Size 3, 5.2 Nm
Size 3, 6.0 Nm
Size 4, 11.2 Nm
Size 4, 13.0 Nm
(1)
In preparation
1
11.3.2 Dimensions of ISD 510 Servo Drive
All dimensions are in mm (in).
55.3
[2.17]

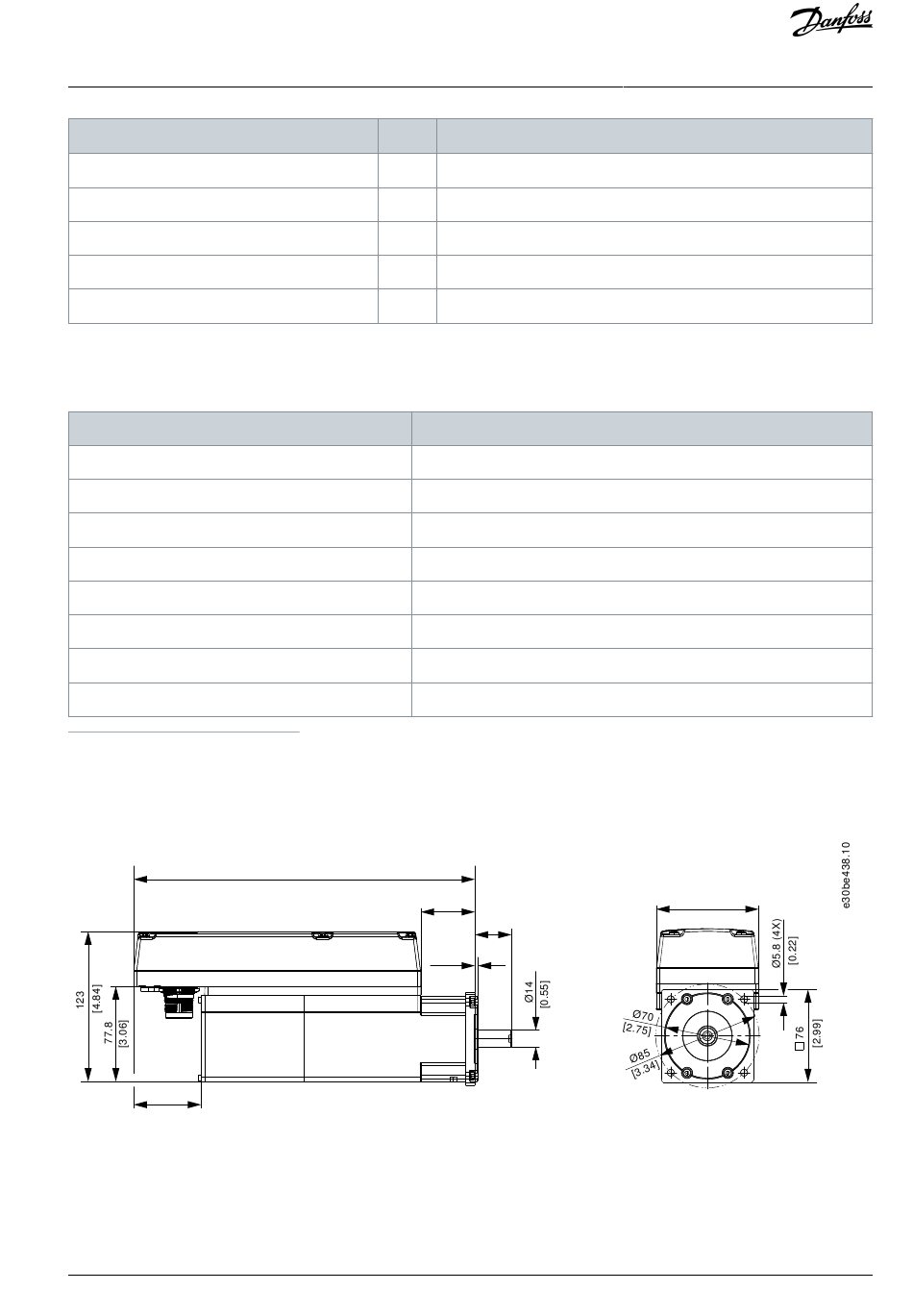

Illustration 122: Dimensions of ISD 510 Size 1, 1.5 Nm
Danfoss A/S © 2020.08
Unit Value
A DC 0.3
– Natural convection
– Wall-mounted on backplate using backlink connector
kg 3.54
mm 84 x 371 x 270
Flange thickness [mm]
7
–
8
8
10.8
10.8
13.8
–
280
[11.02]
44.4
[1.74]
2.5
[0.09]
30
[1.18]
AQ262449648484en-000101 / 175R1135 | 191
Specifications
84
[3.30]
