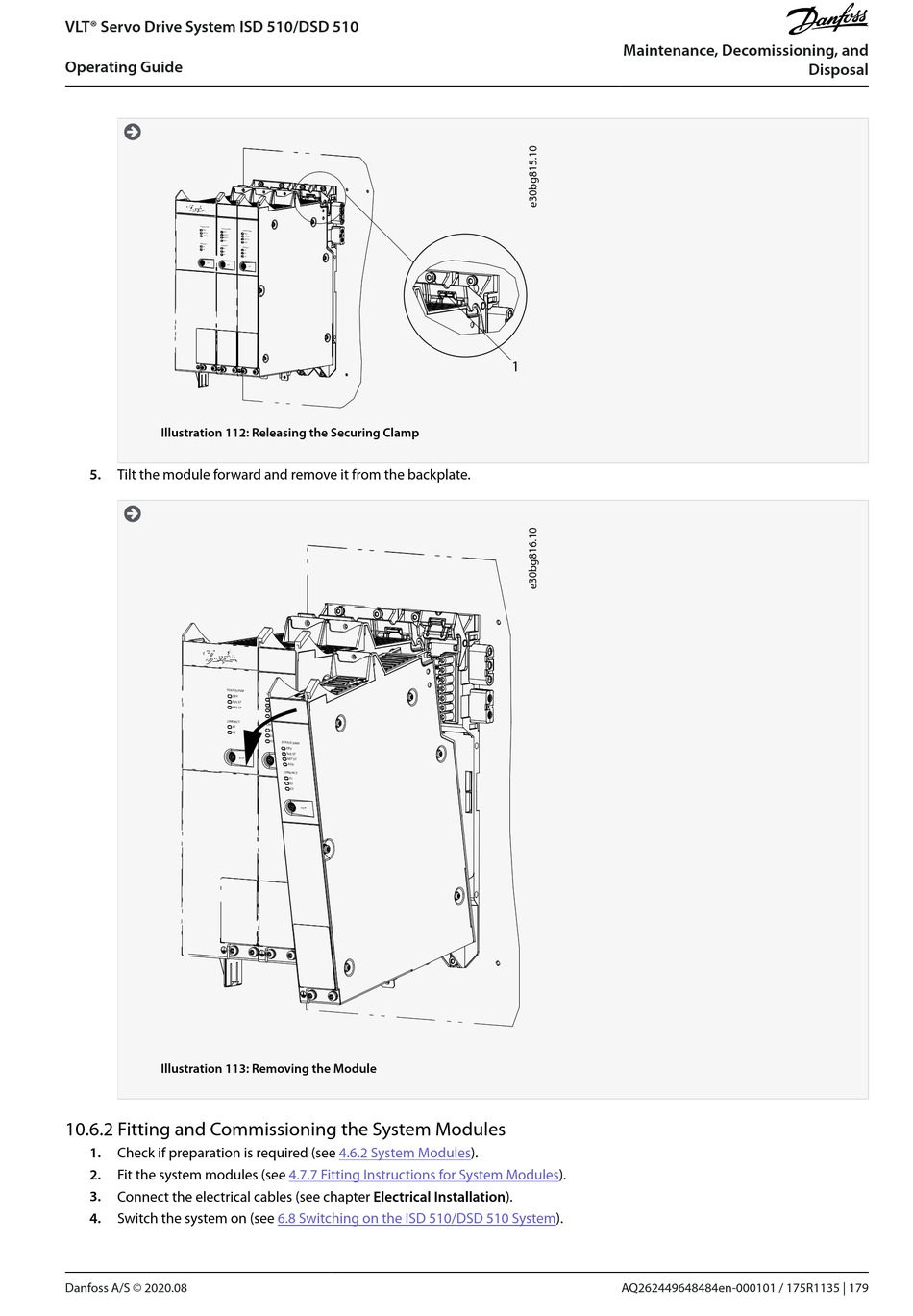

Illustration 112: Releasing the Securing Clamp
5. Tilt the module forward and remove it from the backplate.

Illustration 113: Removing the Module
10.6.2 Fitting and Commissioning the System Modules
1.
Check if preparation is required (see
2. Fit the system modules (see
3.
Connect the electrical cables (see chapter Electrical Installation).
4.
Switch the system on (see
