5.9.2.2.2 Connecting the Cables on the Bottom of the Power Supply Module PSM 510

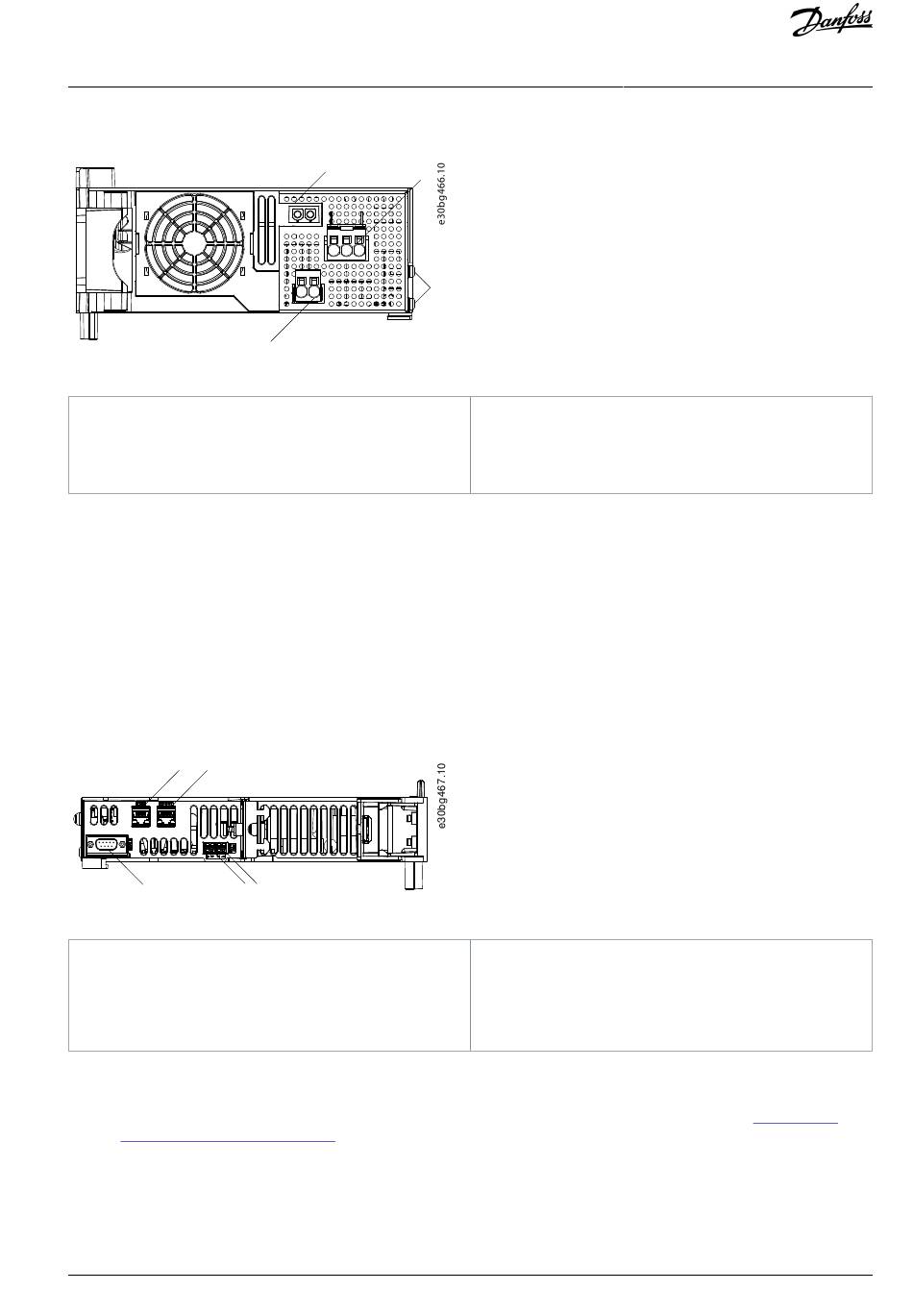

Illustration 30: Connectors on the Bottom of PSM 510
1 Holder for internal brake resistor connector when
not in use
2 AC mains supply connector
Procedure
1.
Insert the wires into the AC mains supply connector.
2. Insert the AC mains supply connector [2].
3.
If an external brake resistor is required:
- a. Unplug the internal brake resistor connector [4] and insert the external brake connector in its place.
b.
- Plug the internal brake resistor connector to the internal brake connector holder [1].
4. Connect the PSM 510 to PE using one of the PE screws on the front side [3] and a PE wire. The tightening torque is 3 Nm.

5.9.3 Connecting the Decentral Access Module (DAM 510)

5.9.3.1 Connecting the Cables on the Top of the Decentral Access Module DAM 510

1 2
5
Illustration 31: Connectors on the Top of DAM 510
1 Ethernet connector IN (X1 IN)
2 Ethernet connector OUT (X3 OUT)
3 STO connector IN (STO DAM)
Procedure
1. Connect the Ethernet cable from the output of the previous module to the input connector (X1 IN) [1].
2. Insert the wires from the STO output of the previous module into the 24 V IN (STO input) connector, see
Connectors on the Top of DAM
3. Insert the 24 V IN (STO connector IN (STO DAM)) connector [3] into the DAM 510.
4.
If required, connect the external encoder connector [5].
Danfoss A/S © 2023.08
1
4
3
4
510.
2
3
3 PE screws
4 Internal/external brake resistor connector
4 STO connector OUT (STO DAM)
5 External encoder connector (E DAM)
