Hardware features

TransPort WR44 RR hardware features

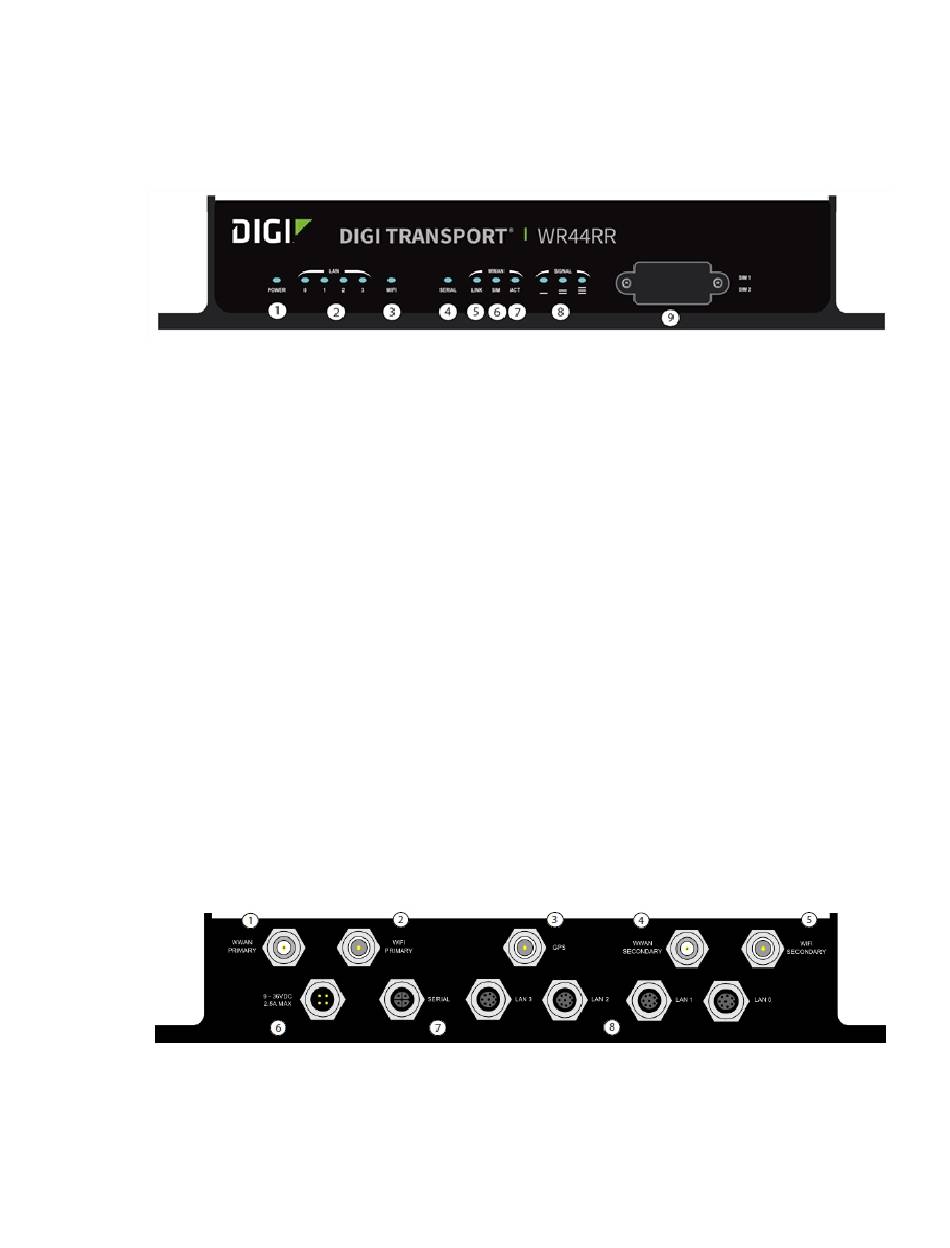

Front panel

1. POWER LED:
Off: No power
n
Green: TransPort device is powered
n
2. LAN (0, 1, 2, 3) LED: Illuminates steadily when there is a network connection to the LAN port
and flashes when data is transmitted or received.
3. Wi-Fi LED:
Wi-Fi models only: Illuminates steady if Wi-Fi activity is present.
n
4. SERIAL LED: Illuminates steadily if a terminal is connected to the SERIAL port and the DTR
signal is on.
5. LINK LED: Illuminates steadily when a wireless WAN data connection has been established.
6. SIM LED: Illuminates steadily when a valid SIM card is installed.
7. ACT LED: Flashes to indicate that data is being transferred over the wireless WAN network.
8. SIGNAL LEDs: Indicate strength of cellular signal.
3 LEDs: Excellent
n
2 LEDs: Good
n
1 LED: Fair
n
0 LEDs: Poor or No signal
n
9. SIM / R-UIM sockets (SIM card models only): SIM 1 and SIM 2 are for use with the SIMs or R-
UIMs (Removable User Identification Modules).

Rear panel
