TransPort WR31 digital and analog inputs and outputs

The TransPort WR31 has an input/output connector with two digital input/output connections,
and a single analog input connection.

I/O connector pin assignments

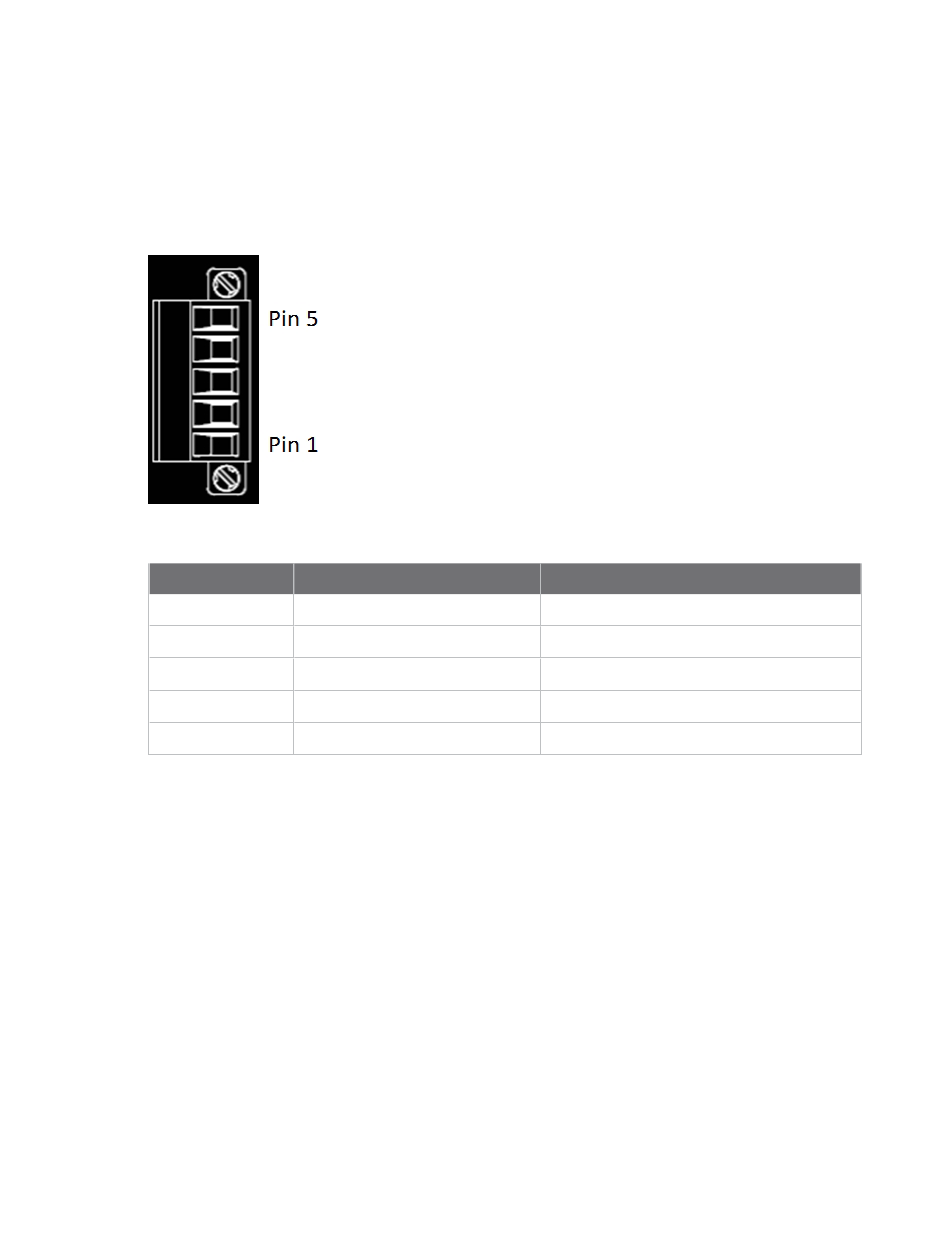

The figure and table show the I/O connector, pin assignments, and the signals for each pin.
Pin#
5
4
3
2
1
Digi TransPort® Routers User Guide
Symbol
AIN0
AGND
DIO0
GND
DIO1
TransPort WR31 hardware features
Description
Analog Input 0
Analog Return
Digital I/O 0
Digital Return
Digital I/O 1
