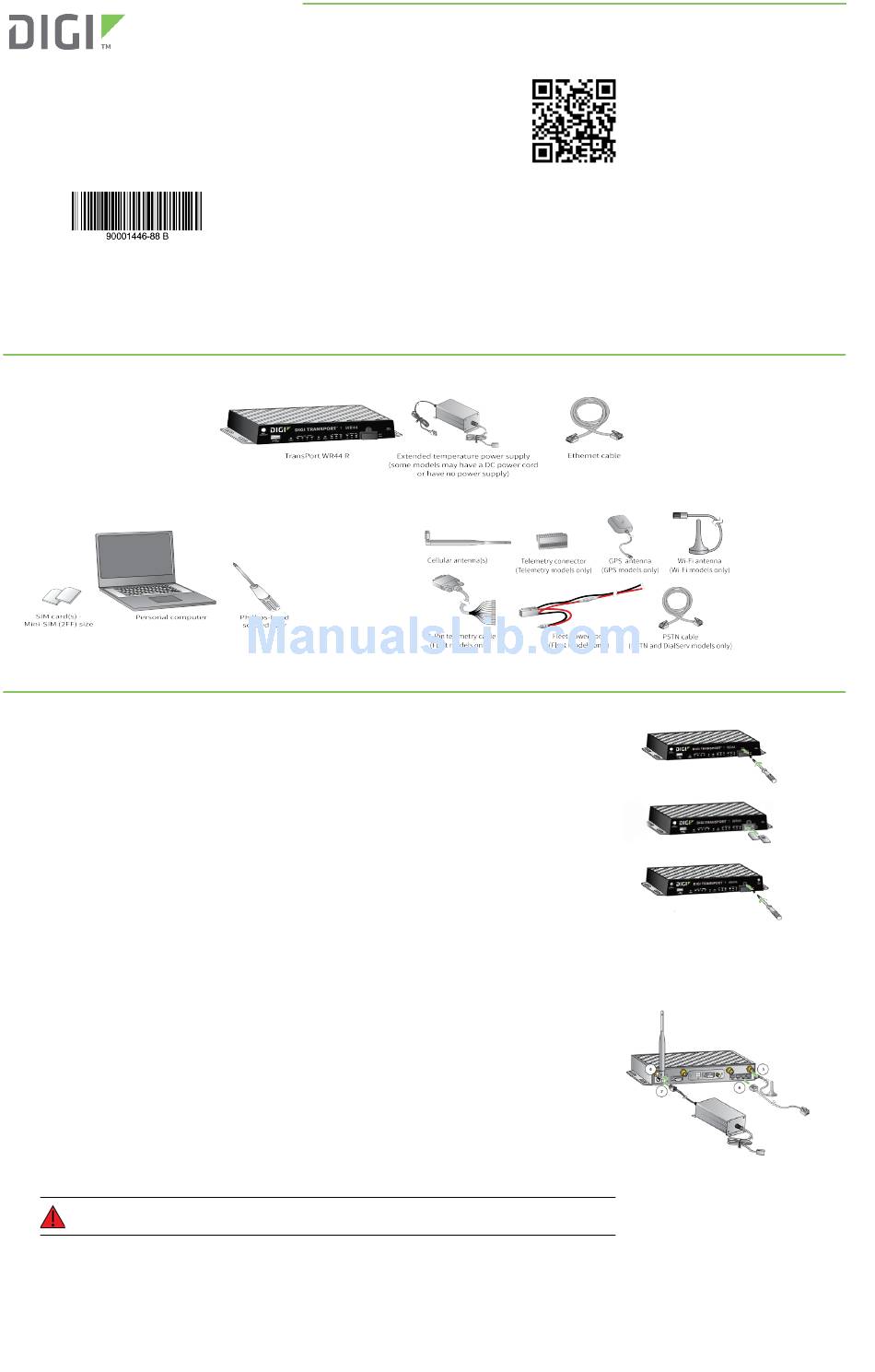

Digi TransPort WR44 R Quick Start Manual

Quick Start Guide
TransPort® WR44 R
1

Verify your components

Required equipment
2

Connect the hardware

1. Using a screwdriver, remove the SIM slot cover.
2. Insert the SIM card(s) into the SIM sockets. For SIM 1, the contacts must be face down. For SIM 2, the
contacts must be face up. Insert the ends of the SIM cards with the chamfered corner first.
3. To meet environmental specifications, after installing the SIM cards, re-attach the TransPort WR44 R SIM
cover.
4. Connect the cellular antenna to the WWAN PRIMARY connector on the unit. If the unit is equipped with a
secondary cellular antenna connector, connect it to the WWAN SECONDARY connector.
5. Wi-Fi models only: Connect the Wi-Fi antennas to the WIFI PRIMARY and WIFI SECONDARY antenna
connectors.
6. Connect one end of the Ethernet cable to the LAN port on the unit and the other end to a LAN port on a
PC.
Connect the power supply. Depending on model, the unit comes with an AC power supply, a 4-pin DC
7.
power cord, or a fleet power cord. Instructions for all options follow.
AC power supply: Connect the 4-pin connector of the power supply to the AUX connector on the unit, and
plug the other end into a wall outlet.
4-Pin DC power cord: Connect the 4-pin connector of the cord to the AUX connector on the unit, and wire
the four bare wires according to your needs. The red and black wires provide basic DC power input. The
blue and green wires are programmable signal lines.
Warning Only use one of the power connectors. Never apply power to both the MAIN and AUX
ports at the same time.
© 2016 Digi International Inc.
Digi, Digi International, and the Digi logo are trademarks or registered trademarks in the United States and other countries worldwide. All other trademarks mentioned in this document are the
property of their respective owners.
Welcome to your Digi product
Get started: This guide helps you with initial product setup. Need more? Find additional product
support at www.digi.com/support/TransPortWR44R. Or connect to the online documentation by
scanning this code:
Digi Technical Support: Digi offers multiple support plans to help you get the most out of your
product. For information on Technical Support plans and pricing, contact us at 877.912.3444 or visit
www.digi.com/support.
Documentation Feedback: To provide feedback on this documentation, send your comments to
techcomm@digi.com.
Verify that you have all included equipment. If any item is missing or damaged, contact your supplier.
Included equipment
Optional equipment Depending on model, the box contains additional components
