Managing networks and connections

Show GRE interface status

É
Web

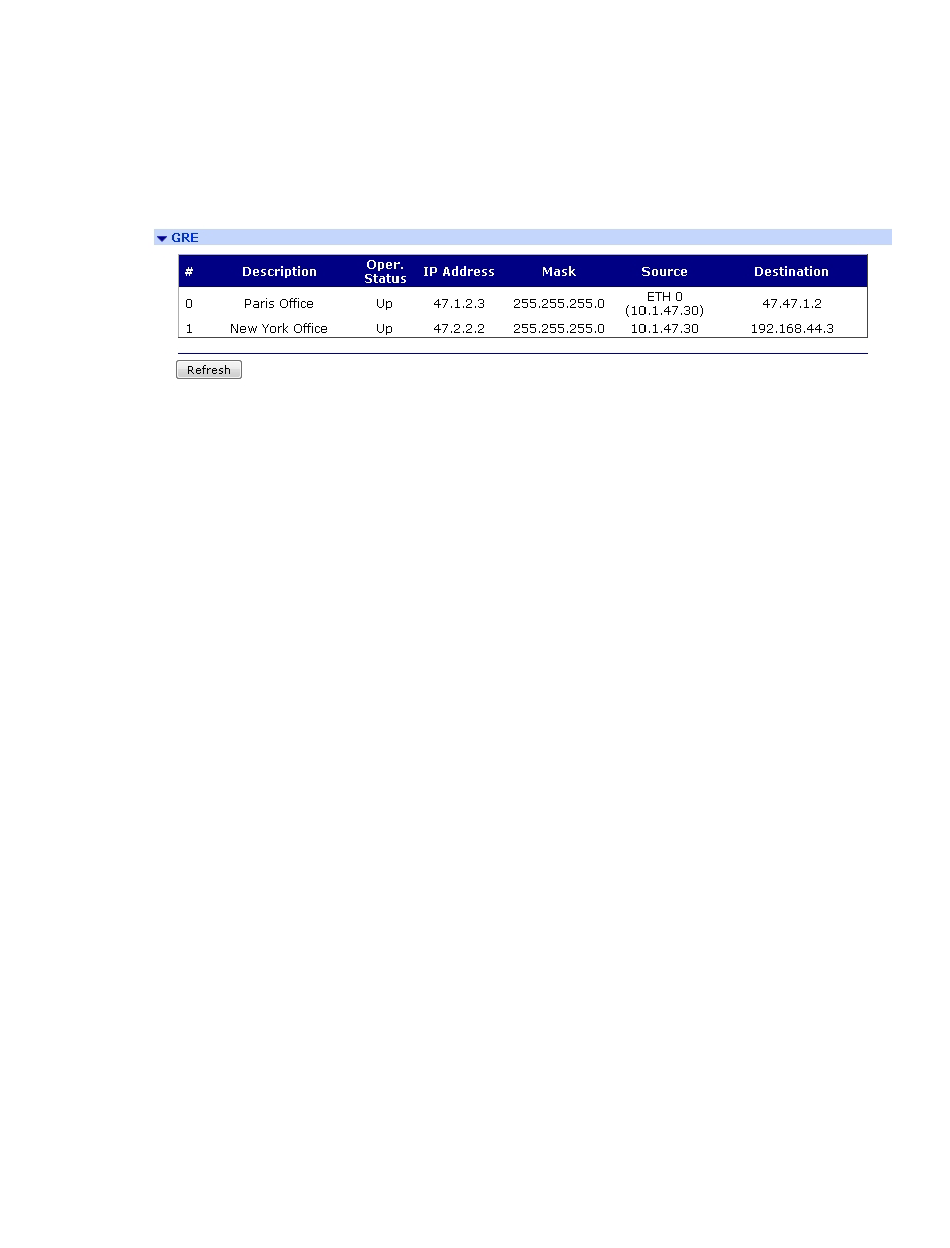

Go to Management > Network Status > Interfaces > GRE. The GRE page displays a summary table of
the configured GRE interfaces.
#
The GRE interface number.
Description
The configured GRE interface description.
Oper. Status
The current operational status of the GRE interface. It can be one of the following values:
Up: The GRE interface is up.
n
Lower Layer Down: The GRE interface has keepalives enabled, but is not getting any response
n
from the configured destination.
IP Address
The configured IP address for the GRE interface.
Mask
The configured IP subnet mask for the GRE interface.
Source
The configured source IP address or interface of the GRE interface.
Destination
The configured destination IP address or domain name of the GRE interface. Further information on
particular GRE interfaces can be obtained by selecting the appropriate GRE interface submenu
underneath the GRE summary table.
The following statistics are also displayed:
Bytes Received
The number of bytes received on the GRE interface.
