Configuring Quality of Service (QoS)
When configuring QoS, note that the router supports ten queues, numbered from 0 to 9, and
that DSCP codes range from 0 to 64.

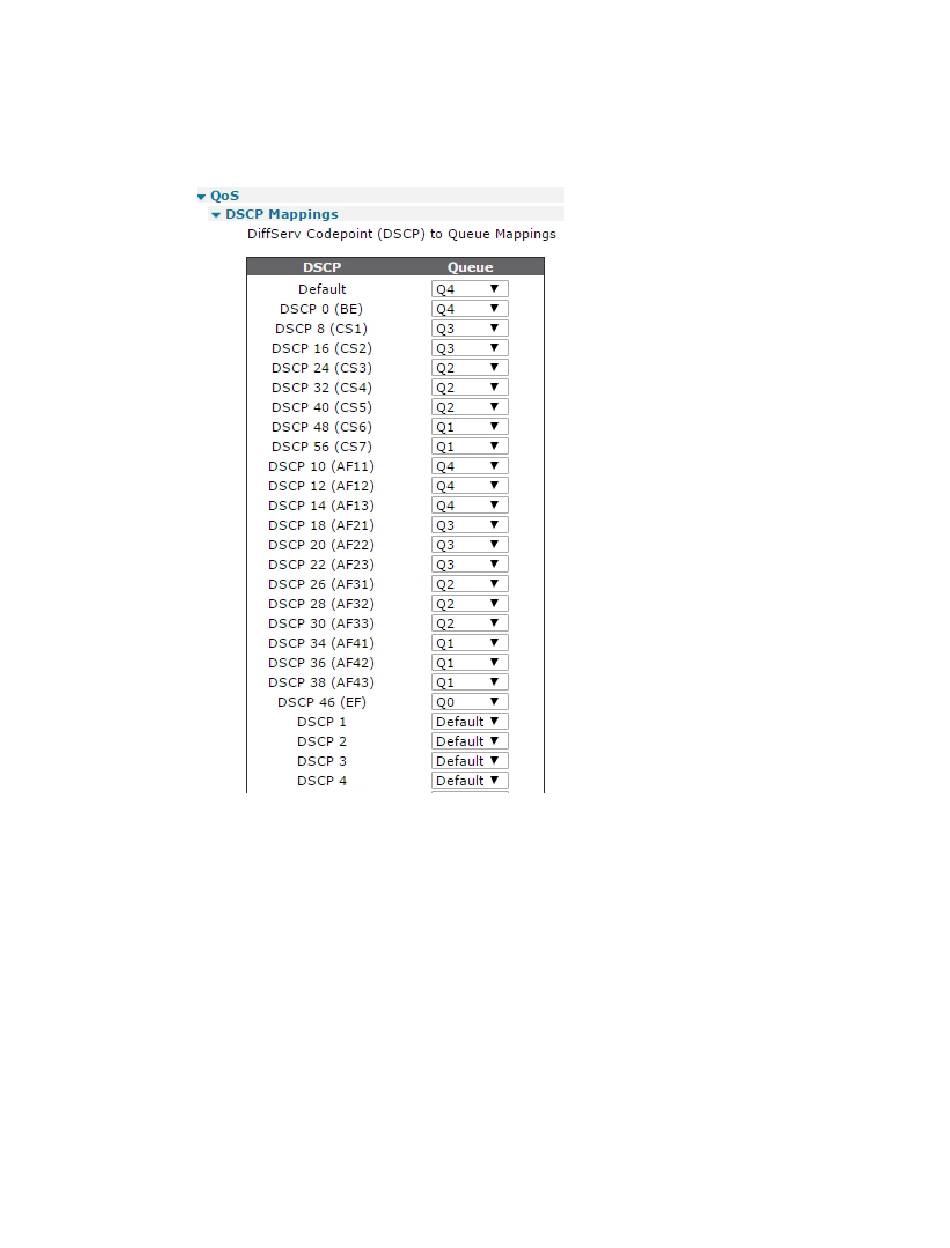

2. Click DSCP Mappings. This page contains parameters to configure DSCP operation. Each DSCP
value must be mapped to a queue.
Default
Selects the default queue. When this is changed, any DSCP codes that are set to use the
default will have their queue number changed.
DSCP
A list of valid DSCP codes with an associated drop-down list box to the right.
Queue
Each of the DSCP codes in the left-hand column has a queue associated with it. To change the
value from what is shown, select the desired value from the drop-down list.
