Digi TransPort WR21 Quick Start Manual

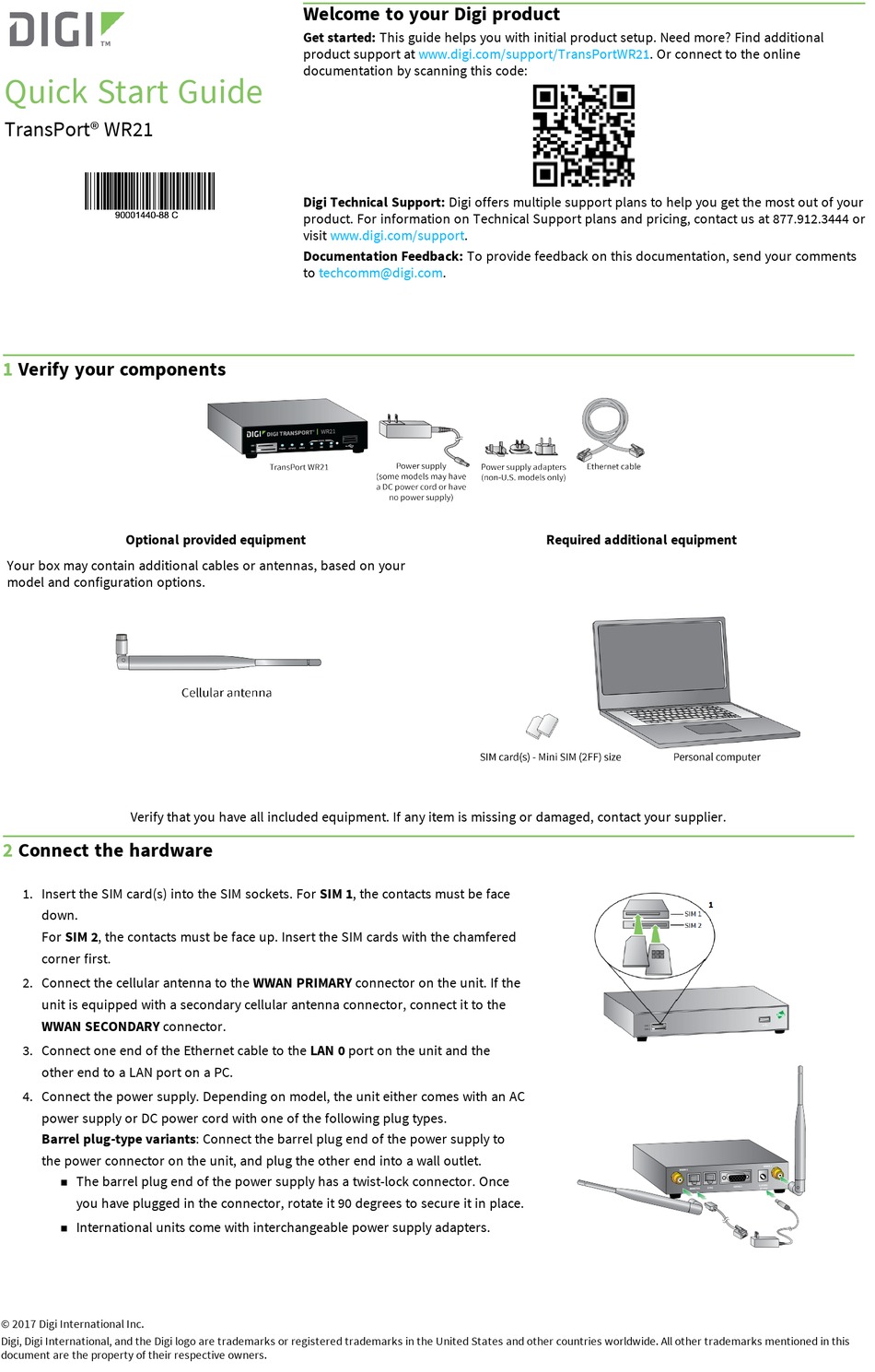

Quick Start Guide

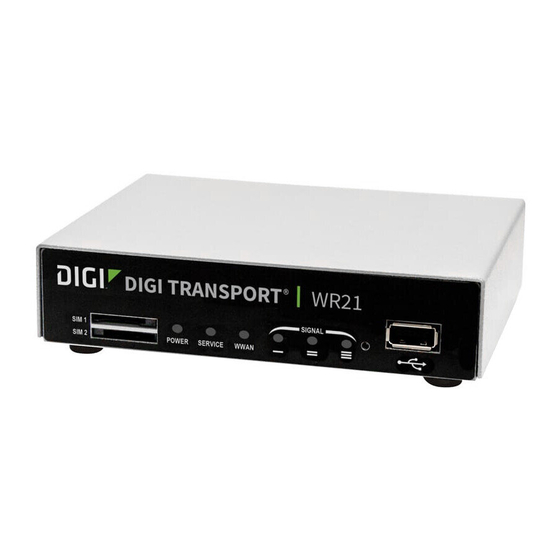

TransPort® WR21
1

Verify your components

Optional provided equipment
Your box may contain additional cables or antennas, based on your
model and configuration options.
Verify that you have all included equipment. If any item is missing or damaged, contact your supplier.
2

Connect the hardware

1. Insert the SIM card(s) into the SIM sockets. For SIM 1, the contacts must be face
down.
For SIM 2, the contacts must be face up. Insert the SIM cards with the chamfered
corner first.
2. Connect the cellular antenna to the WWAN PRIMARY connector on the unit. If the
unit is equipped with a secondary cellular antenna connector, connect it to the
WWAN SECONDARY connector.
3. Connect one end of the Ethernet cable to the LAN 0 port on the unit and the
other end to a LAN port on a PC.
4. Connect the power supply. Depending on model, the unit either comes with an AC
power supply or DC power cord with one of the following plug types.
Barrel plug-type variants: Connect the barrel plug end of the power supply to
the power connector on the unit, and plug the other end into a wall outlet.
The barrel plug end of the power supply has a twist-lock connector. Once
n
you have plugged in the connector, rotate it 90 degrees to secure it in place.
International units come with interchangeable power supply adapters.
n
© 2017 Digi International Inc.
Digi, Digi International, and the Digi logo are trademarks or registered trademarks in the United States and other countries worldwide. All other trademarks mentioned in this
document are the property of their respective owners.
Welcome to your Digi product
Get started: This guide helps you with initial product setup. Need more? Find additional
product support at www.digi.com/support/TransPortWR21. Or connect to the online
documentation by scanning this code:
Digi Technical Support: Digi offers multiple support plans to help you get the most out of your
product. For information on Technical Support plans and pricing, contact us at 877.912.3444 or
visit www.digi.com/support.
Documentation Feedback: To provide feedback on this documentation, send your comments
to techcomm@digi.com.
Required additional equipment
