To make a wired connection:
1) Connect a standard network patch cable to one or both Ethernet ports on the PDU.
• If one Ethernet port is higher speed, use the higher speed port for network connection.
2) Connect the other end of the cable to your LAN.

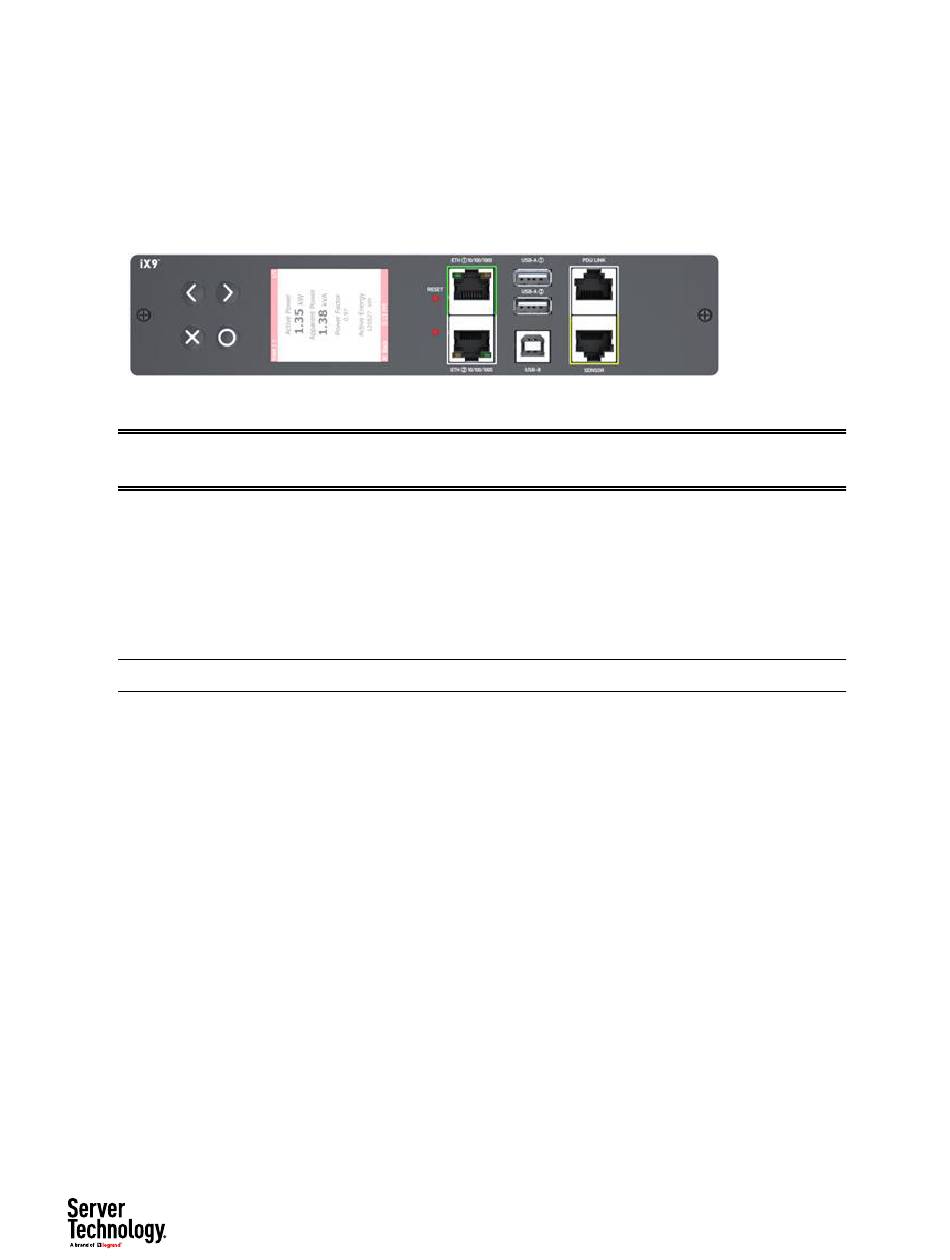

Sample iX9 controller. Port locations may vary by model.
Warning: Accidentally plugging an RS-232 RJ-45 connector into the Ethernet port can cause permanent
damage(s) to the Ethernet hardware.

Dual Ethernet Connection

Models with two Ethernet ports may have ports supporting different speeds. Note if your Ethernet port
is marked with speed. Port layouts and labels may vary by model.
ETH1 or ETH2 marked 10/100/1000 supports up to 1000 Mbps.
Exception: USB-cascading chains have different requirements.
Check list when connecting both ports to the networks:
Both Ethernet interfaces are connecting to different subnets.
Both Ethernet interfaces have been enabled. By default both are enabled.
Both Ethernet interfaces are configured with proper IPv4 and/or IPv6 settings.
• It is NOT required that the two Ethernet interfaces share similar network settings. For example,
you can enable IPv4 settings in one interface but enable IPv6 settings in the other, or apply static
IP to one but DHCP IP to the other.
The cascading mode is disabled. By default it is disabled. Go to Device Settings > Network.

Configuring the PRO4X

You can initially configure via one of the following:
A TCP/IP network that supports DHCP
A mobile device with PDView installed
A computer physically connected to the PDU
Basic configuration process overviews:
19
