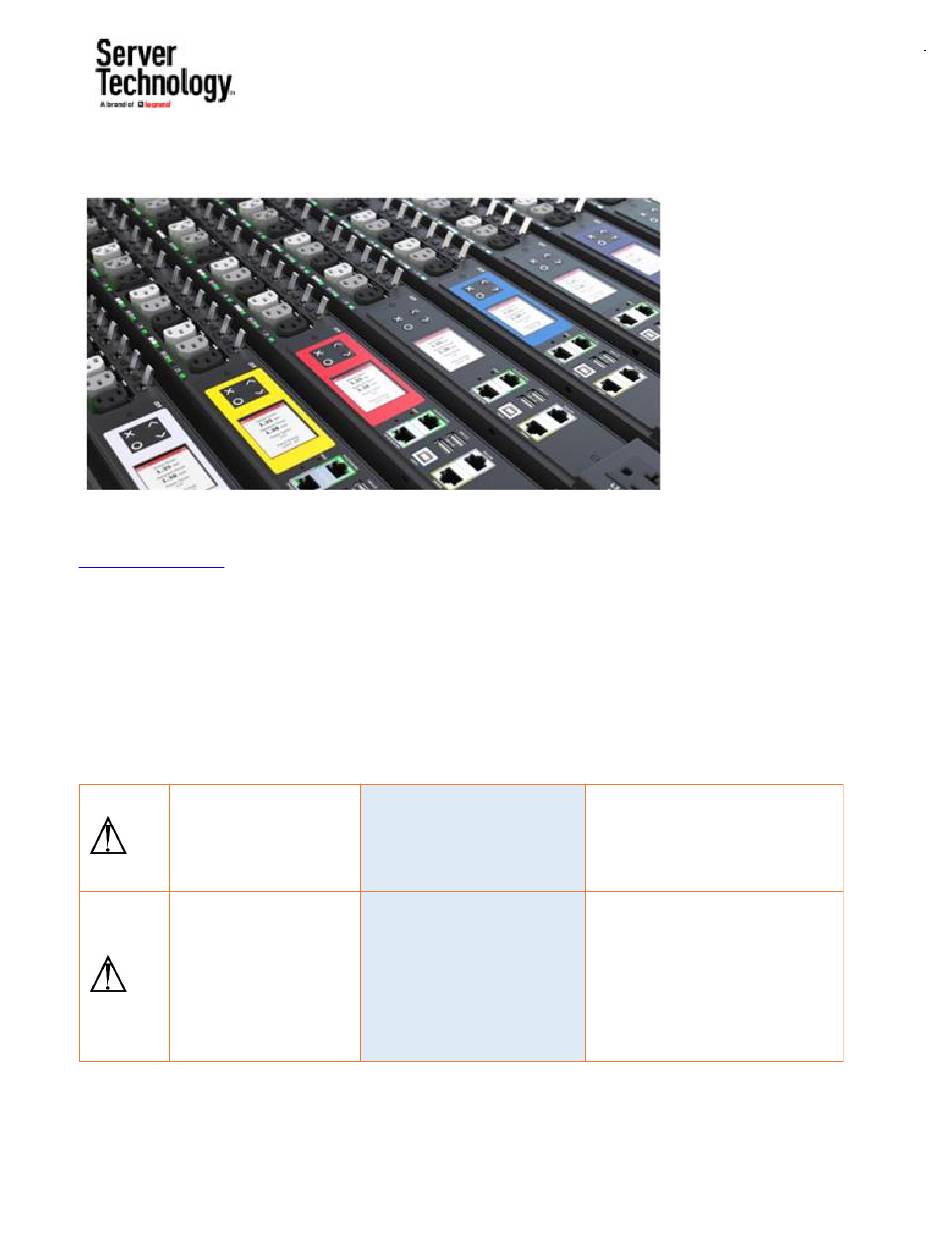

Server Technology PRO4X
This Quick Setup Guide explains how to install and configure the PRO4X. For more information about using the product,
online help is available from the firmware interface, or download the PRO4X User Guide from the Support page at
www.servertech.com.
Package Contents PRO4X
•
•
PRO4X PDU
•
•
Vertical PDUs: Standard mounting button kit (Part No. KIT-0020)
•
•
Horizontal PDUs: Bracket kit to mount unit to equipment vertical rails (Part No. varies)
If any items are missing, contact Server Technology Support or your Server Technology representative.
Safety Warnings
Installation of this product
should only be performed by
a person who has knowledge
and experience with electric
power.
Only for installation and use
in a Restricted Access
Location in accordance with
the following installation and
use instructions.
This equipment should only
be installed by trained
personnel.
PRO4X Quick Setup Guide | SPDU_G4_QSG_B1_4.0.40
255-92-0001-00
L'installation de ce produit ne doit
être réalisée que par une
personne qui possède des
compétences et de l'expérience
dans le domaine de l'électricité.
Destiné à l'installation et
l'utilisation dans le cadre de
Restricted Access Location selon
les instructions d'installation et
d'utilisation.
Cet équipement est uniquement
destiné à être installé par
personnel qualifié.
Dieses Produkt darf nur von Personen
aufgestellt und installiert werden, die
ausreichende Kenntnisse und Erfahrung
mit elektrischem Strom haben.
Nur für Installation und Gebrauch in
eingeschränkten Betriebszonen gemäß
der folgenden Installations-und
Gebrauchsanweisungen.
Dieses Gerät ist nur für den Einbau
durch Personal vorgesehen.
page
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Server Technology PRO4X and is the answer not in the manual?

Questions and answers

Related Manuals for LEGRAND Server Technology PRO4X

Summary of Contents for LEGRAND Server Technology PRO4X

  • Page 1 Server Technology PRO4X This Quick Setup Guide explains how to install and configure the PRO4X. For more information about using the product, online help is available from the firmware interface, or download the PRO4X User Guide from the Support page at www.servertech.com.
  • Page 2 WARNING: Only use this AVERTISSEMENT : n’utilisez ce WARNUNG: Sie dürfen dieses Produkt product to power produit que pour alimenter des nur zur Stromversorgung von Geräten information technology appareils informatiques conformes benutzen, die gemäß UL/IEC 62368-1 equipment that has a UL/ IEC à...
  • Page 3 WARNING: Connect this AVERTISSEMENT : veuillez WARNUNG: Dieses Gerät darf nur an product to a protective earth raccorder ce produit à la terre. eine Steckdose mit Erdleiter ground. Never use a "ground N’utilisez jamais une barrette de angeschlossen werden. Verwenden Sie lift adaptor"...
  • Page 4 This equipment is designed Cet équipement a été conçu pour Die Geräte sind für eine Installation an to be installed on a être installé que un circuit dédié. einer fest zugeordneten Leitung dedicated circuit. The power Le cordon d’alimentation doit être ausgelegt.
  • Page 5 WARNING: CHINA AVERTISSEMENT : AVIS WARNUNG: EINSATZLAND CHINA: nur NOTIFICATION: For use at CONCERNANT LA CHINE : conçu für den Betrieb auf Höhen bis maximal altitude 2,000 meters or pour être utilisé à une altitude 2000 m. lower. maximale de 2 000 mètres. Mounting PRO4X The following illustration shows how to mount the PRO4X unit in vertical or horizontal orientation: ▶...
  • Page 6 iX9 Controller ▶ Interface (External): • • 2x 10/100/1000 Ethernet • • 1x USB 2.0 type B (Device) • • 2x USB 2.0 type A (Host) • • 1x Sensor port (1-Wire + RS485) • • 1x PDU Link port ▶...

  • Page 7: Connecting The Pdu To A Power Source

    Threaded Grounding Point The primary means of earthing the product is via the power cord connected to an earthed receptacle; however, some models have a supplementary, threaded grounding point for connection to TT earthing systems or where required by the Authority Having Jurisdiction (AHJ) per national, regional or local applicable electric codes.

  • Page 8: Default Login

    Warning: Accidentally plugging an RS-232 RJ-45 connector into the Ethernet port can cause permanent damage(s) to the Ethernet hardware. Default Login User Name: admin Password: legrand Choose Initial Configuration Method Depending on your networking environment, choose the best method to initially configure your PRO4X. •...
  • Page 9 Initial Configuration with CLI This is a command set example for setting up ETH1 interface with static IP address, gateway, and DNS server. #config config:# network bridge enabled false config:# network ipv4 interface ETH1 enabled true config:# network ipv4 interface ETH1 configMethod static config:# network ipv4 interface ETH1 address 192.168.56.80/24 config:# network ipv4 interface ETH1 gateway 192.168.56.128 config:# network dns firstServer 1.1.1.1 secondServer 1.0.0.1...
  • Page 10 4. Launch the PDView app and wait until the PDU is recognized. 5. If the factory-default login credentials remain unchanged, or if PDView has been configured with accurate login credentials, PDView automatically logs in to the web interface of PRO4X. If PDView can't log in automatically, the login screen displays instead and you must enter appropriate user credentials for login.
