Required permissions:
You must have one of the permissions below to be able to operate all or some of the outlet group
features.
Administrator Privileges -- all operations
Change Pdu, Inlet, Outlet & Overcurrent Protector Configuration -- creating, editing and deleting
outlet groups
Switch Outlet Group -- powering on, off or cycle outlet groups
Outlet group data:

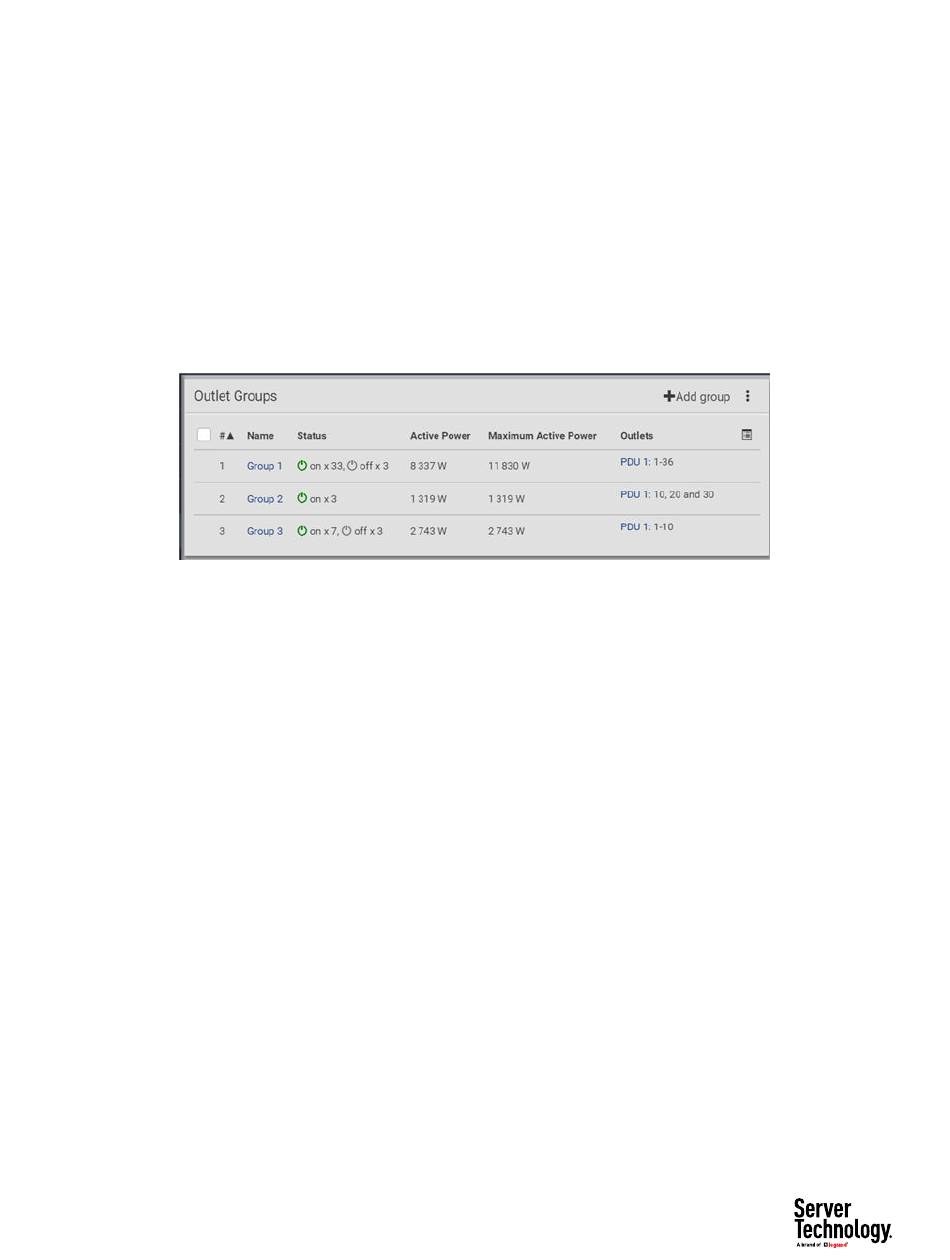

The Outlet Groups page will list all outlet groups you create.
For each group, you can view the following data on the Outlet Groups page:
• Group number
• Name: the outlet group name displays as a link. Click to go to the details page for the group.
• Status: number of outlets with status ON, number of outlets with status OFF.
• Active Power: The active power for the group. A sum of all member outlets' active power values.
• Maximum Active Power: Hidden by default. Click the columns icon to add this data. The highest
recorded active power for the group.
• Outlets: A list of the outlet numbers who are members of the group. The PDU(s) of the outlets
displays as links.

Creating an Outlet Group

You can create an outlet group if you often have to perform the same action on the same outlets at a
regular interval.
For example, create an outlet group when you need to:
Power cycle specific outlets every week.
Sum up and track specific outlets' active power values every month.
Sum up the increased values of specific outlet's active energy values every month.
Note that an outlet can be a member of one or multiple groups.
