To delete one or multiple groups on the Outlet Groups page:
1) On the Outlet Groups page, select one or more outlet groups.
2) Click > Delete, then confirm the operation when prompted.
▶
To delete a group on a specific outlet group's page:
1) Open a specific outlet group's page by clicking on its name.
2) Click > Delete, then confirm the operation when prompted.

OCPs

The OCPs page is available only when your model has overcurrent protectors, such as circuit breakers.

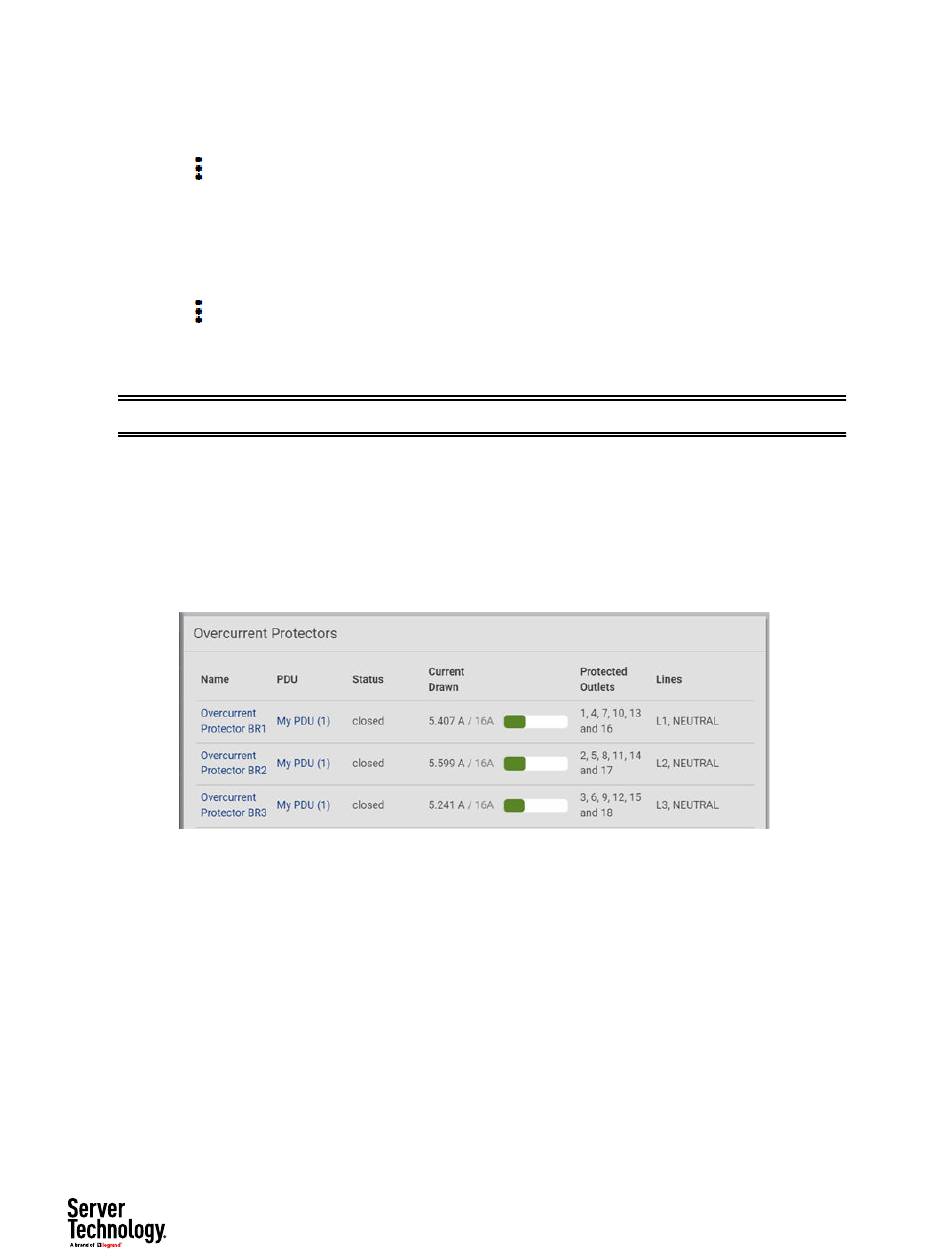

The OCPs page lists all overcurrent protectors as well as their status. If any OCP trips or its current level
enters the alarmed state, it is highlighted in red or yellow.
To open the OCPs page, click 'OCPs' in the Menu.
You can go to each OCP's data/setup page by clicking its name on this page. OCPs may be numbered C1,
C2, and so on, or BR1, BR2 and so on.
▶
Overcurrent protector overview:
• •
OCP status - open (tripped) or closed
• •
Current drawn, rated current and current bar
• • The smaller, gray text adjacent to "current drawn" is the rated current of each OCP.
• • The RMS current bars change colors to indicate the status if the OCP thresholds have been
configured and enabled.
