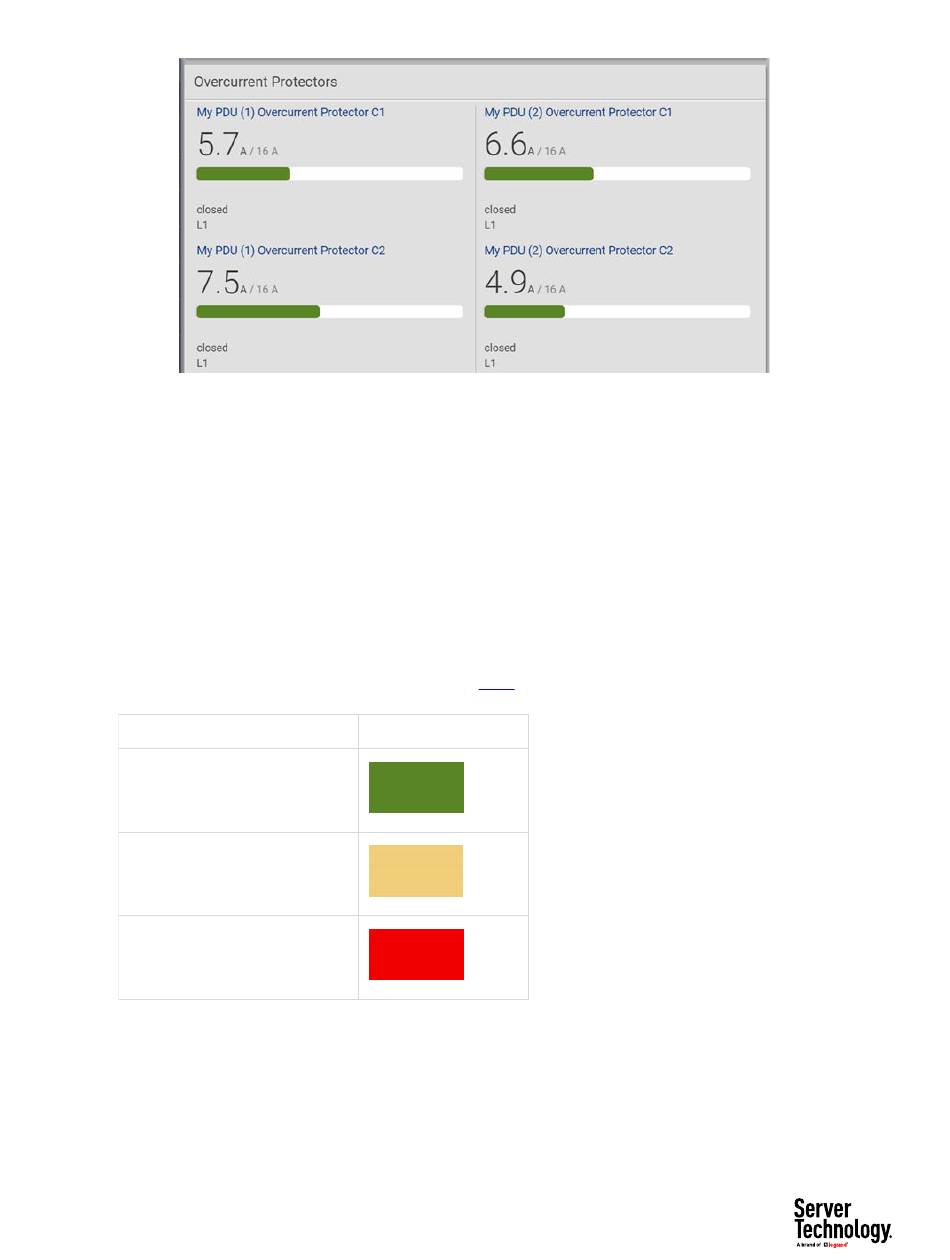

Each OCP's power data:
OCP data from top to bottom includes:
•
•
RMS current (A), and rated current
•
• Smaller gray text adjacent to RMS current is each OCP's rated current, such as "16A" shown in
the above diagram.
•
•
A bar showing OCP current levels
•
•
OCP status -- open or closed
•
•
Associated line pair
The RMS current bars automatically change colors to indicate the current status according to your
configured thresholds. To configure thresholds, see
Status
normal
above upper warning
above upper critical
Dashboard - Alerted Sensors
When any internal sensors or environmental sensor packages connected to the PRO4X enter an
abnormal state, the Alerted Sensors section in the Dashboard shows them for alerting users. This
section also lists tripped circuit breakers or blown fuses, if available.
