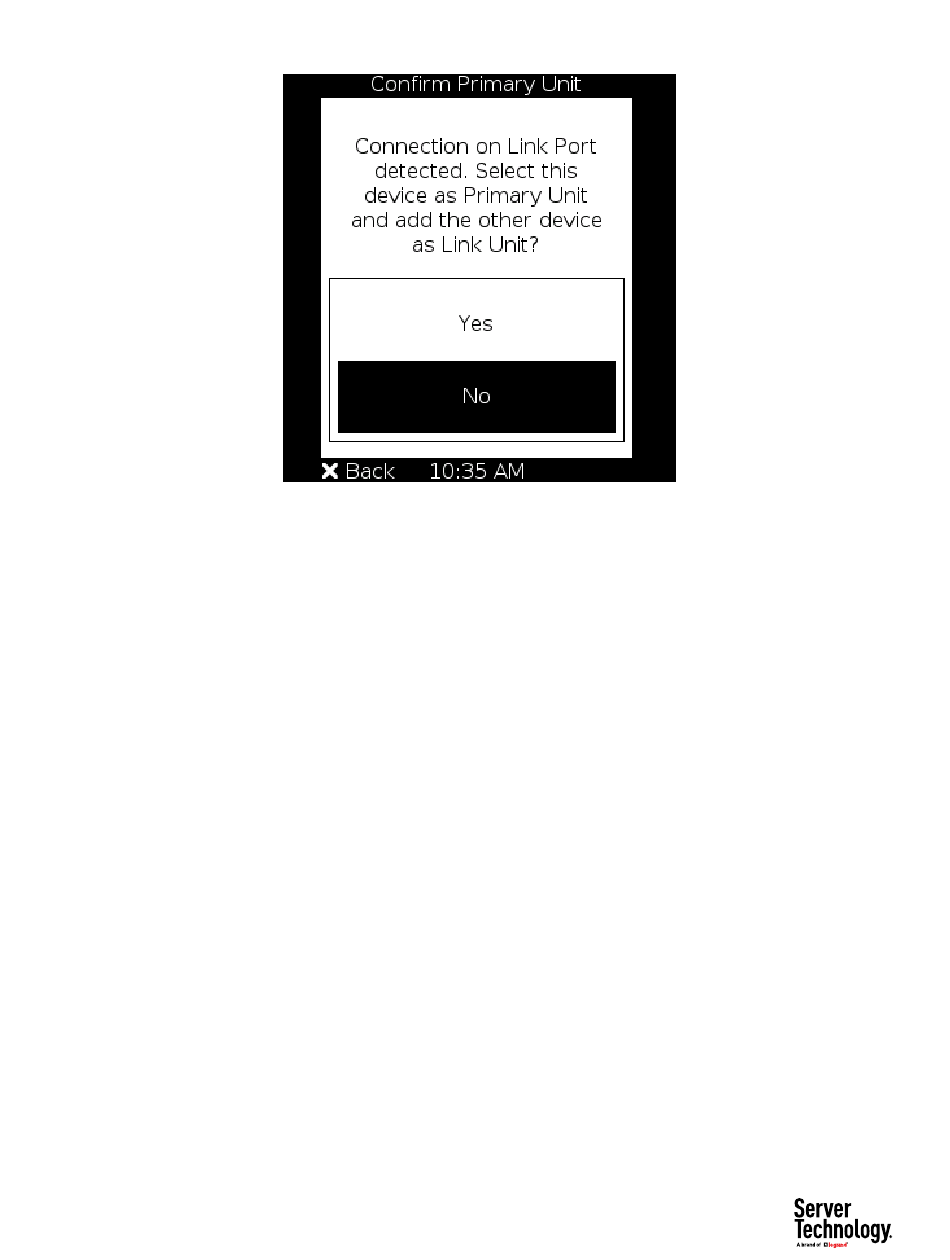

• • Select No to deny PDU Linking for these 2 PDUs. The message will not appear again.
4) Upon selecting Yes, the units will be linked as Primary and Link units, and will operate as other PDU
Linking configurations.

Displays for Primary and Link Units

Each unit in a PDU Linking chain displays its own PDU data (inlets, outlets, sensors, alerts, etc.)
▶
Primary unit:
From the following example of the primary unit display, navigate the options for displaying Link PDU
identification and status, and to confirm the primary unit that is controlling the link unit in the chain.
1) Can show alarms, which may be triggered by link units.
2) PDU information shows a list of link units with host name/IP address, model, device name, serial
number, firmware version, and communication status.
56
