To immediately push out the data:
1) On the Data Push page, choose the data source you want to push out.
2) Click the Push Now button.
▶
To cancel a data push:
• •
You can cancel the push in progress: Click Cancel.
▶
To modify or delete data push settings:
1) On the Data Push page, click the one you want in the list.
2) Perform either action below.
• • To modify settings, make necessary changes and then click Save.

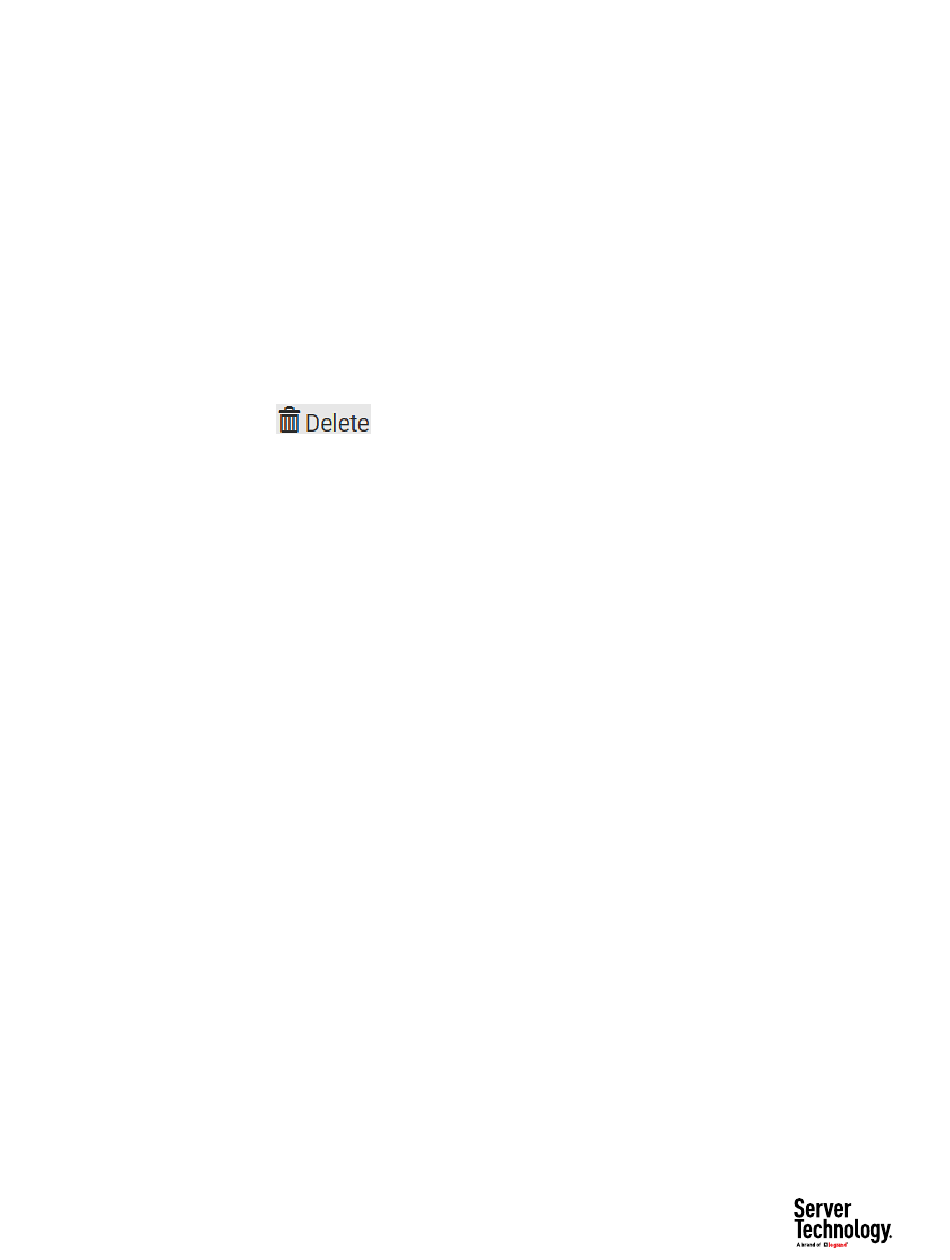

• To delete it, click •
Data Push Format Examples
Sensor Log
The root object of the message is a SensorLogPushMessage structure. It comprises a list of sensor
descriptors and a list of log rows.
▶
Sensor descriptors:
The sensor descriptor vector contains static information of all logged sensors, including:
• •
The electrical component a sensor is associated with. For example, an inlet pole or an overcurrent
protector.
• •
The sensor's type. For example, RMS current or active energy.
• •
Unit and range of the sensor's readings.
▶
Log rows:
Each log row consists of a time stamp (accumulated seconds since 1/1/1970) and a list of log records --
one for each logged sensor.
The length and order of the record list is the same as the sensor descriptor vector.
Sensor Descriptors for Inlet Active Power
The following illustrates a descriptor for an inlet active power sensor.
The metadata field is relevant only to numeric sensors so the readingtype field is displayed twice
in the illustration.
The comment beginning with // in each line, is added to the following illustration to help explain it.
322
, and then confirm it on the confirmation message.
