The event rule involves:
• •
Event: Outlet > Outlet 3 > Sensor > Any sub-event
• •
Action: System SNMP Notification Action
▶

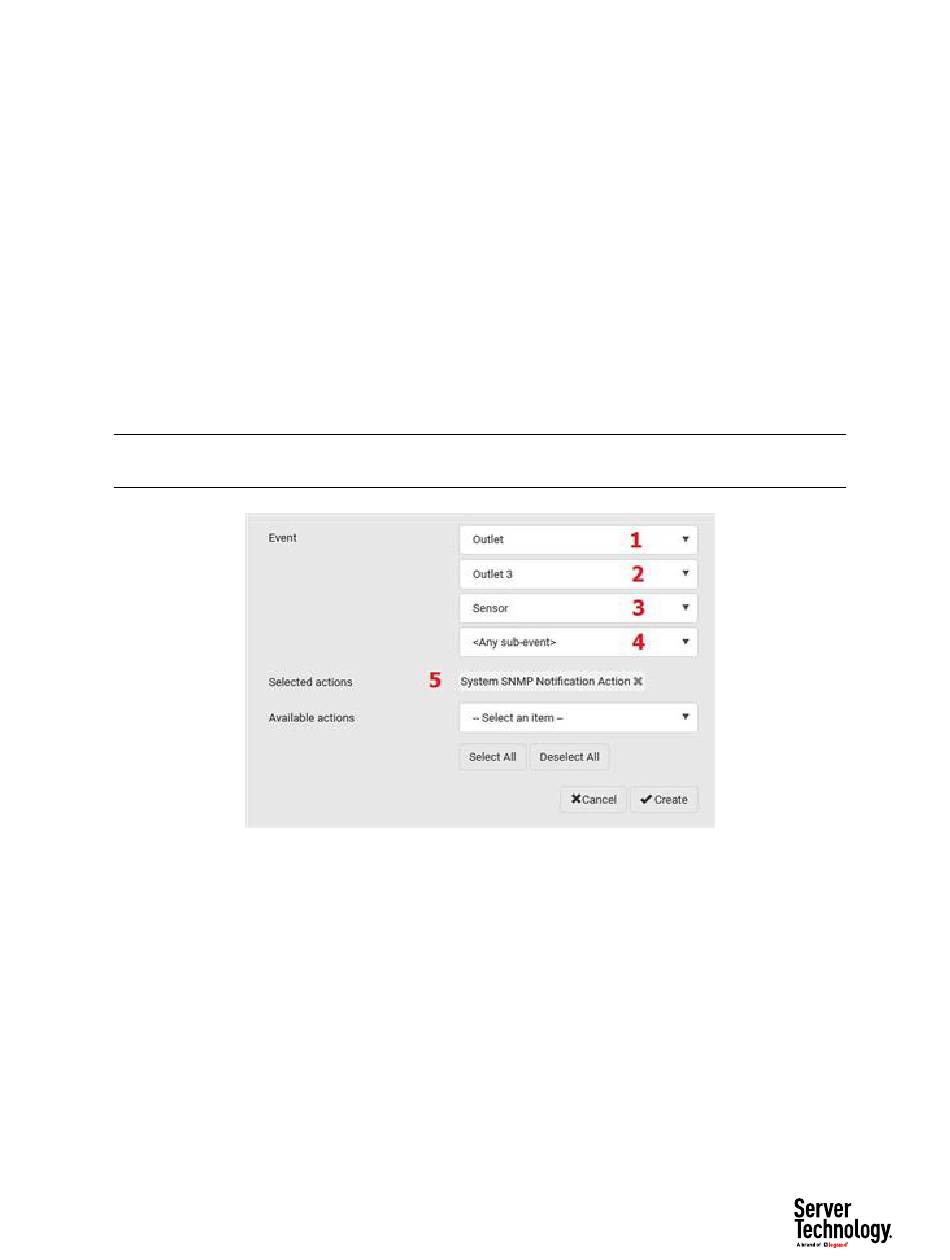

To create this outlet-level event rule:
1) For an event at the outlet level, select "Outlet" in the Event field.
2) Select "Outlet 3" because that is the desired outlet.
3) Select "Sensor" to refer to sensor-related events.
4) Select "Any sub-event" to include all events related to all sensors of this outlet and all thresholds,
such as current, voltage, upper critical threshold, upper warning threshold, lower critical threshold,
lower warning threshold, and so on.
5) To make PRO4X send SNMP notifications, select "System SNMP Notification Action" in the 'Available
actions' field.
Note: The SNMP notifications may be SNMP v2c or SNMP v3 traps/informs, depending on the settings for
the System SNMP Notification Action. See Enabling and Configuring SNMP.
Then the SNMP notifications are sent when:
• Any numeric sensor's reading enters the warning or critical range. •
• Any sensor reading or state returns to normal. •
• Any sensor becomes unavailable. •
• • The active energy sensor is reset.
• • Any state sensor changes its state.
For example, when the outlet 3's voltage exceeds the upper warning threshold, the SNMP
notifications are sent, and when the voltage drops below the upper warning threshold, the
SNMP notifications are sent again.
