Sensor or actuator states:
• •
n/a = unavailable
• •
Normal
• •
Alarmed
• •
Lower Critical = below lower critical
• •
Lower Warning = below lower warning
• •
Upper Warning = above upper warning
• •
Upper Critical = above upper critical
• •
On
• •
Off
• • Open
• •
Closed
A numeric sensor shows both the reading and state. A state sensor or actuator shows the
state only.

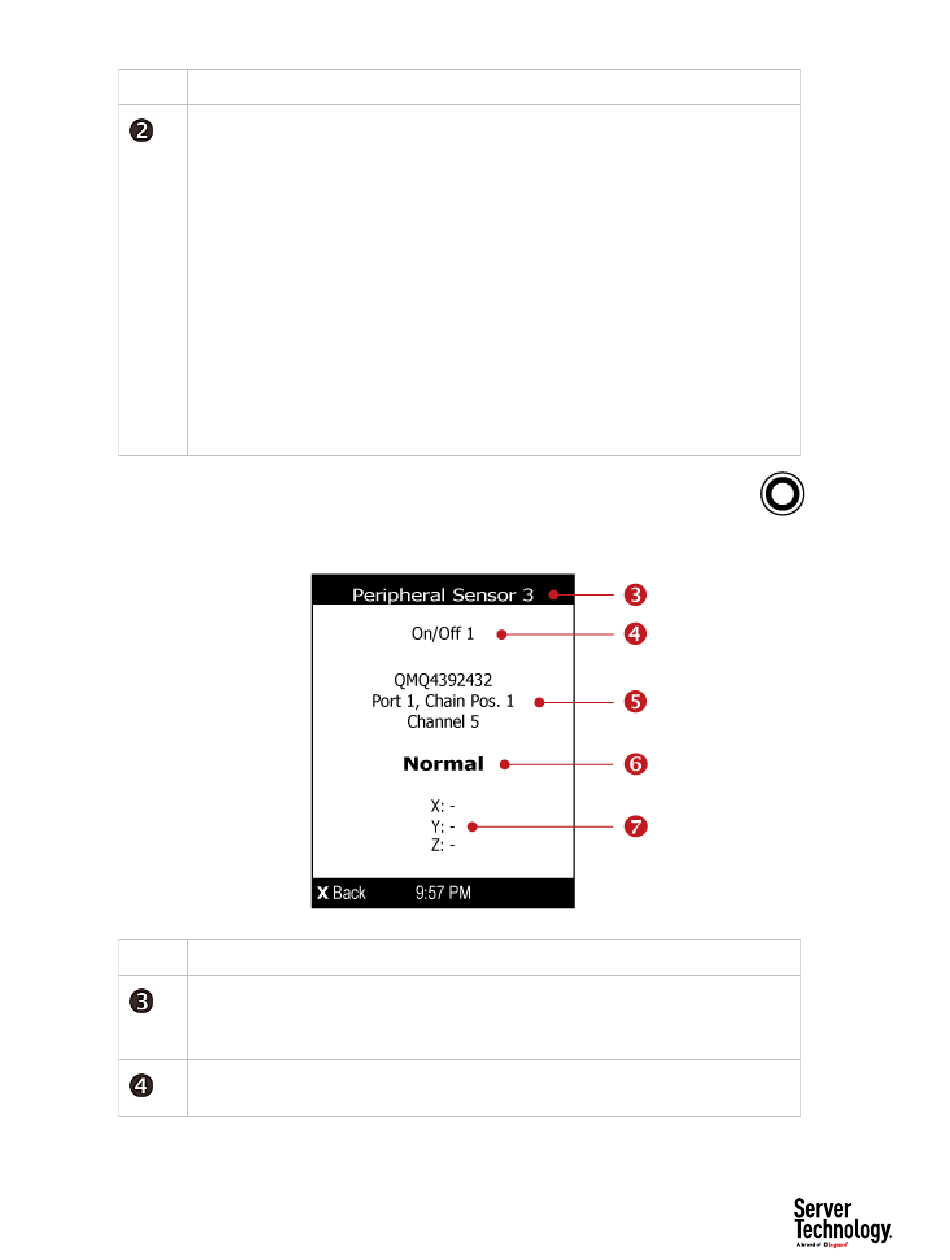

1) To view an environmental sensor or actuator's detailed information, select it, and press
screen similar to the following is shown.
Number Description
The ID number assigned to this sensor or actuator.
• •
A sensor shows "Peripheral Sensor x" (x is the ID number)
• •
An actuator shows "Peripheral Actuator x"
Sensor or actuator name.
